- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P30

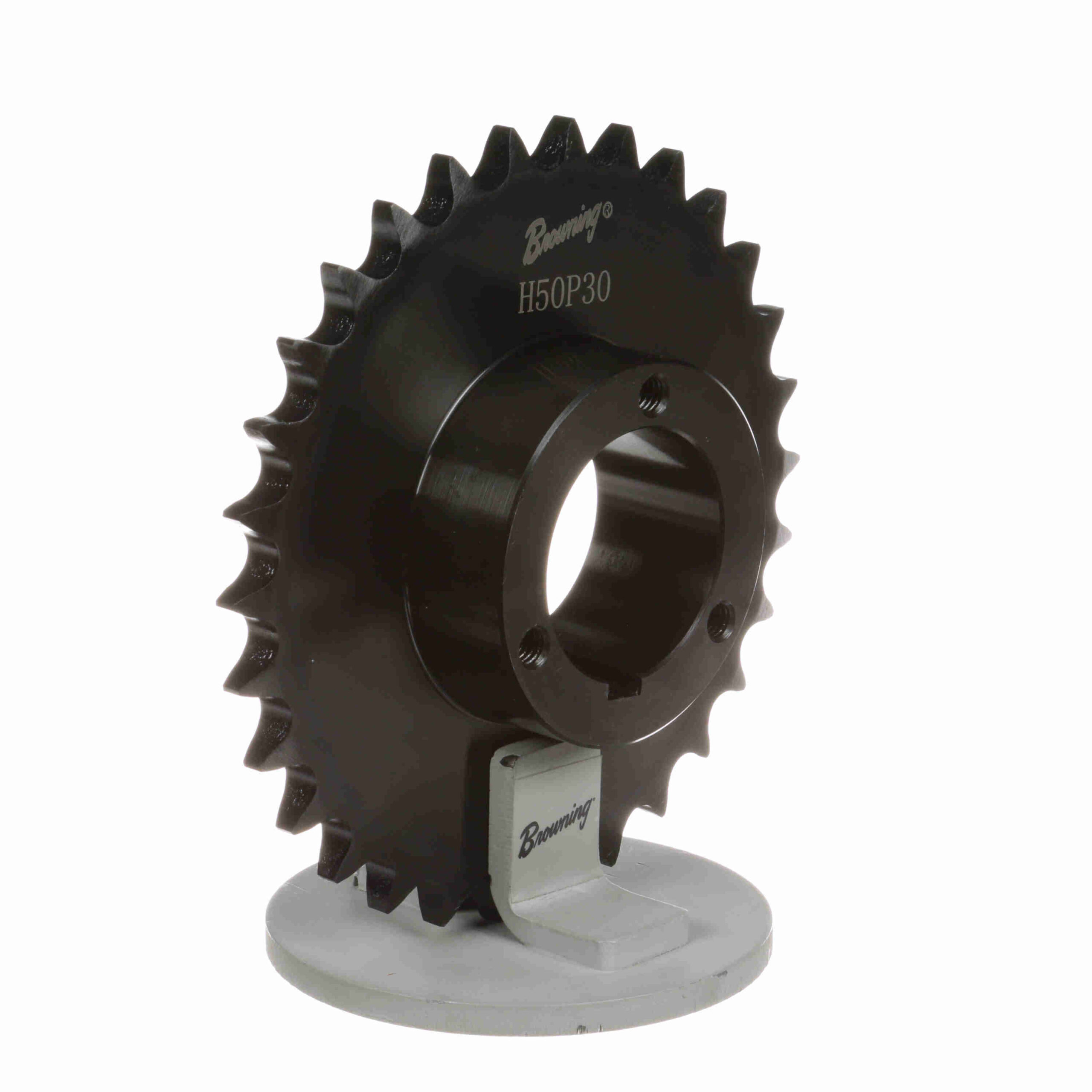

Browning Steel Bushed Bore Roller Chain Sprocket – H50P30
$256.54
Availability: 2 in stock
Availability: 2 in stock
| Chain Pitch (in): | 0.625 in | Pitch Diameter (in): | 5.979 in |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Product Type: | Bushed Roller Chain Sprocket |
| Number of teeth: | 30 | Bore (Max) (in): | 1.75 in |
| Bushing Used: | Split Taper | Bore (Min) (in): | 0.5 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 6.321 in | Overall Length (in): | 2.221225 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Width Across Tooth Sets: | 0.343 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289155453 |
| Weight: | 3.47 LB | Packaged Length: | 6.50 Inches |
| Packaged Width: | 6.30 Inches | Packaged Height: | 1.80 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
