- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P28

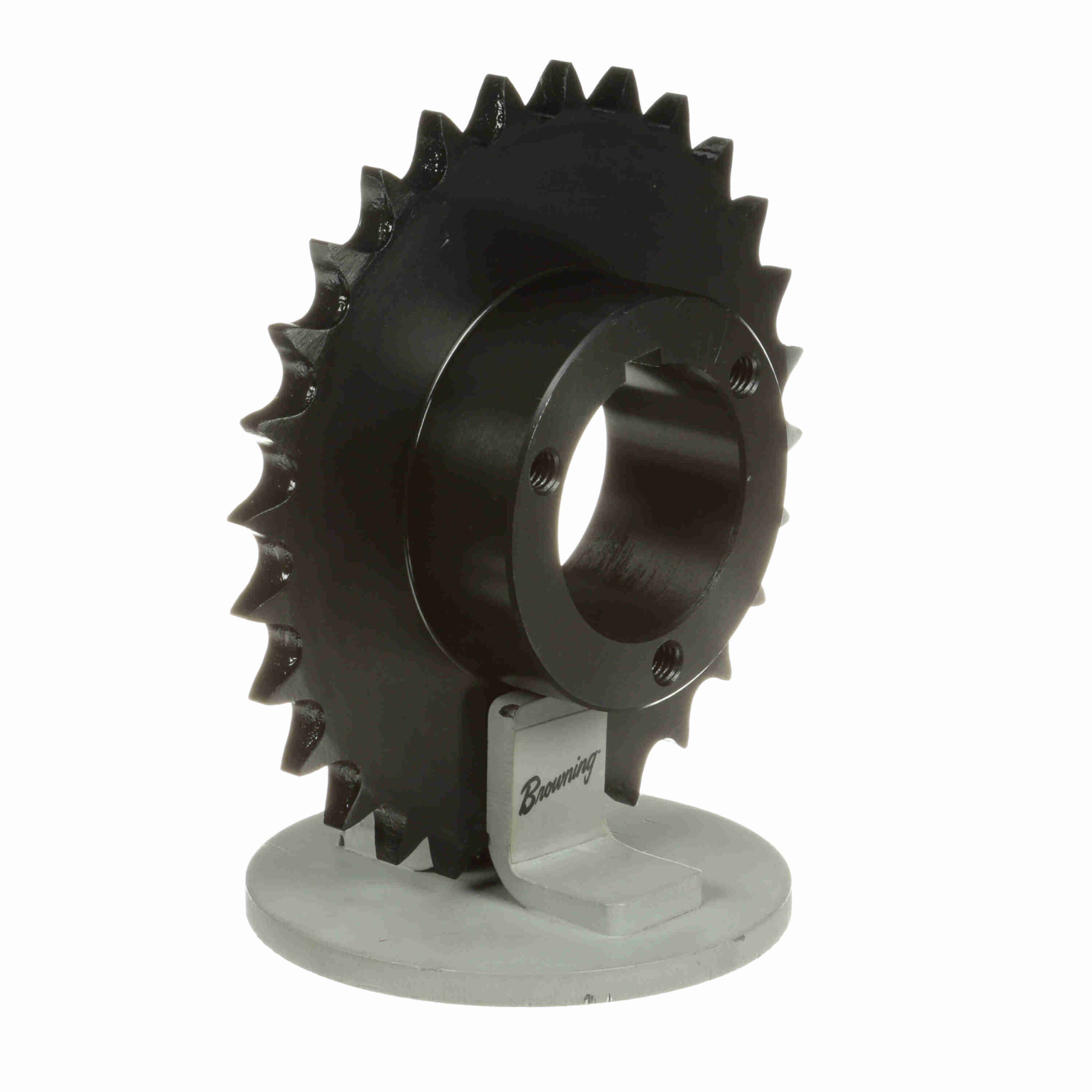

Browning Steel Bushed Bore Roller Chain Sprocket – H50P28
$249.40
Out of stock
Out of stock
| Chain Pitch (in): | 0.625 in | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Bore (Max) (in): | 1.75 in | Pitch Diameter (in): | 5.582 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Material: | Steel, Hardened Teeth |
| Number of teeth: | 28 | Bushing Used: | Split Taper |
| Product Type: | Bushed Roller Chain Sprocket | Overall Length (in): | 2.221225 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 5.922 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.343 | UPC: | 662289295418 |
| Weight: | 3.16 LB | Packaged Length: | 6.56 Inches |
| Packaged Width: | 6.56 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
