- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P23

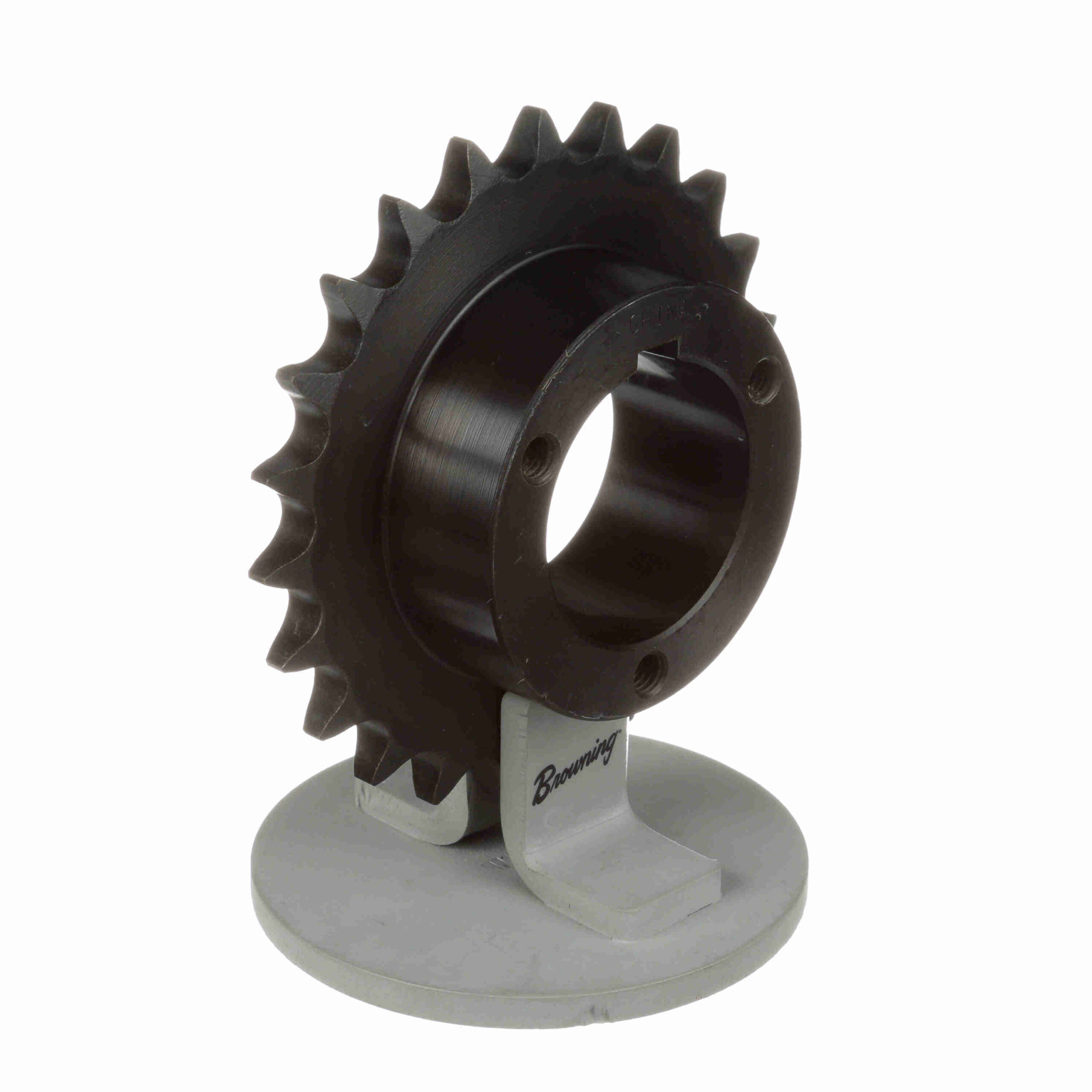

Browning Steel Bushed Bore Roller Chain Sprocket – H50P23
$229.11
Availability: 3 in stock
Availability: 3 in stock
| Pitch Diameter (in): | 4.59 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Bushing Used: | Split Taper | Number of teeth: | 23 |
| Chain Pitch (in): | 0.625 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 1.75 in | Bore (Min) (in): | 0.5 in |
| Material: | Steel | Overall Length (in): | 2.221225 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 4.922 in |
| Number of Strands/Width: | 1 | Length Through Bore (in): | 1.938 in |
| Tooth Width (in): | 0.343 in | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Hardened Teeth: | Yes | Width Across Tooth Sets: | 0.343 |
| Hub Projection (in): | 1.594 | Overall Width (in): | 2.1875 in |
| UPC: | 662289285259 | Weight: | 2.38 LB |
| Packaged Length: | 5.20 Inches | Packaged Width: | 5.10 Inches |
| Packaged Height: | 2.20 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
