- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H50P18

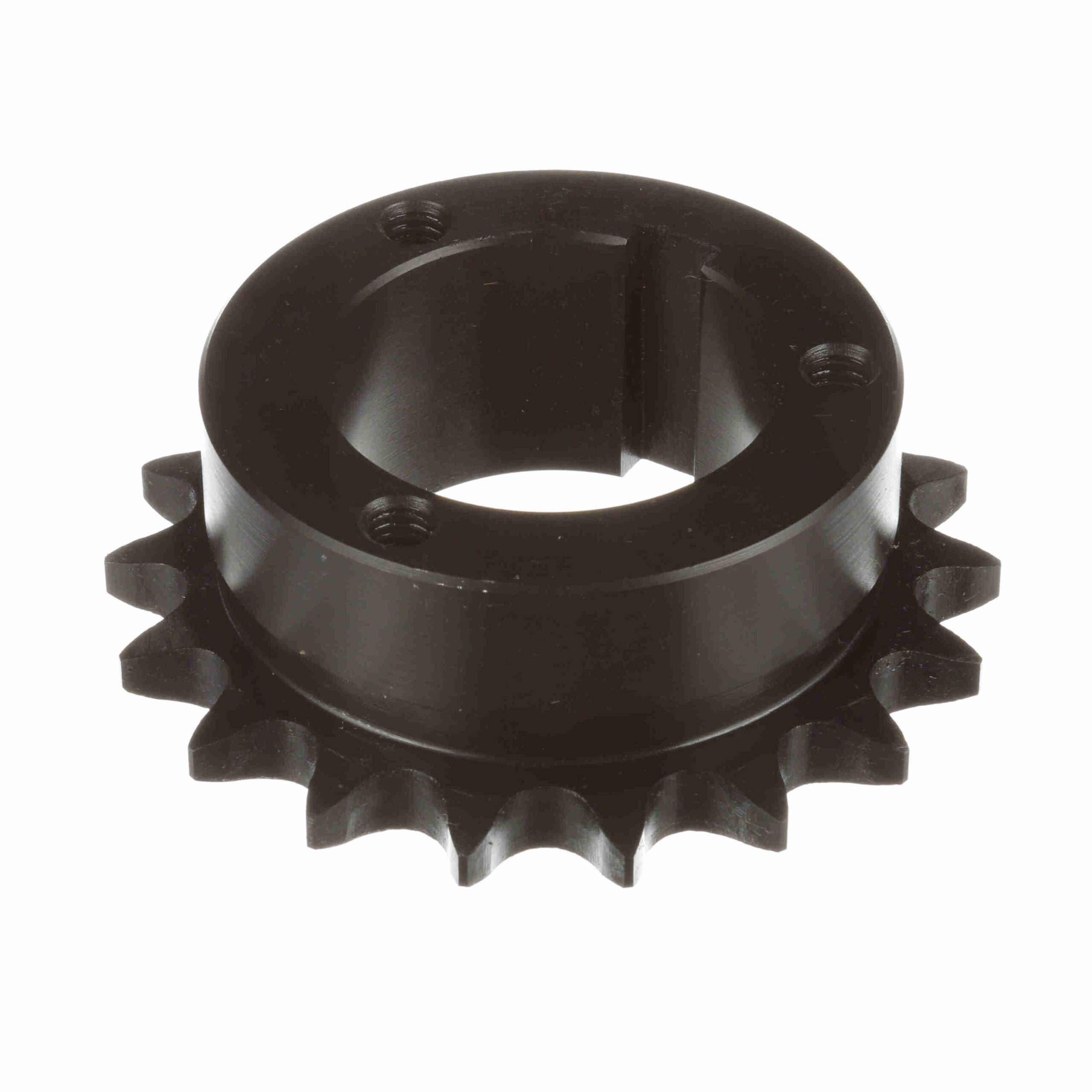

Browning Steel Bushed Bore Roller Chain Sprocket – H50P18
$146.68
Availability: 2 in stock
Availability: 2 in stock
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel, Hardened Teeth |
|---|---|---|---|
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.625 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Pitch Diameter (in): | 3.599 in |
| Bore (Max) (in): | 1.75 in | Number of teeth: | 18 |
| Bore (Min) (in): | 0.5 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.216225 in | Outside Diameter (in): | 3.92 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Width Across Tooth Sets: | 0.343 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289255153 |
| Weight: | 1.73 LB | Packaged Length: | 4.30 Inches |
| Packaged Width: | 4.20 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
