- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H5015X 1 1/4

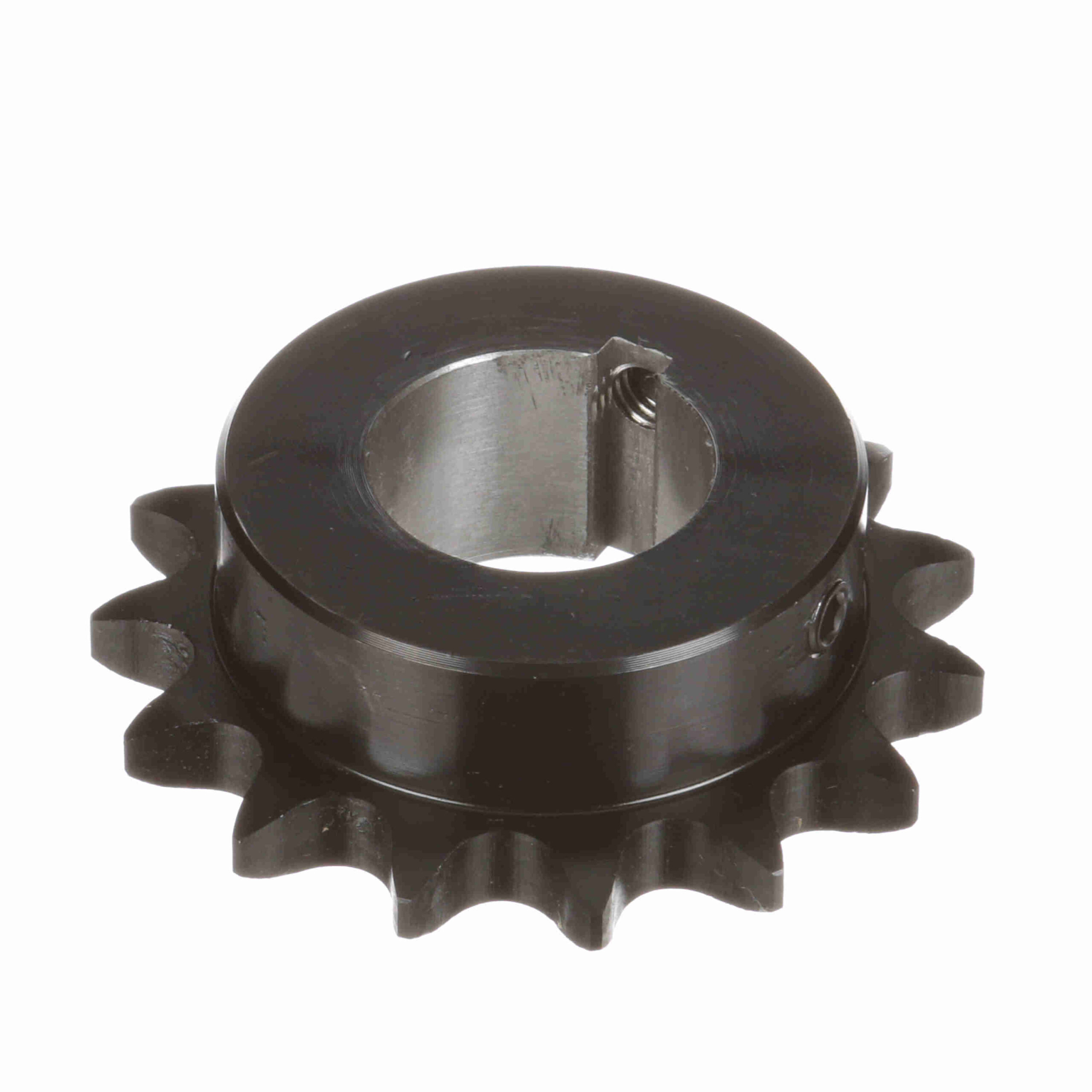

Browning Steel Finished Bore Roller Chain Sprocket – H5015X 1 1/4
Out of stock
| Chain Pitch (in): | 0.625 in | Product Type: | Finished Bore Roller Chain Sprocket |
|---|---|---|---|
| Number of teeth: | 15 | Pitch Diameter (in): | 3.006 in |
| Print Revision Level: | M | Material: | Steel, Hardened Teeth |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Outside Diameter (in): | 3.315 in |
| Bore Type: | Finished Bore | Number of Strands/Width: | 1 |
| Bore (in): | 1.25 in | Tooth Width (in): | 0.343 in |
| Hub Type: | Type B | Hub Projection (in): | 0.662 in |
| Hub Diameter (in): | 2.391 in | Length Through Bore (in): | 1.016 in |
| Hardened Teeth: | With Hardened Teeth | Keyway Size: | 1/4 X 1/8 |
| Pitch Type: | Single | UPC: | 662289283767 |
| Weight: | 1.10 LB | Packaged Length: | 3.56 Inches |
| Packaged Width: | 3.56 Inches | Packaged Height: | 1.44 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
