- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H5014X 1 1/4

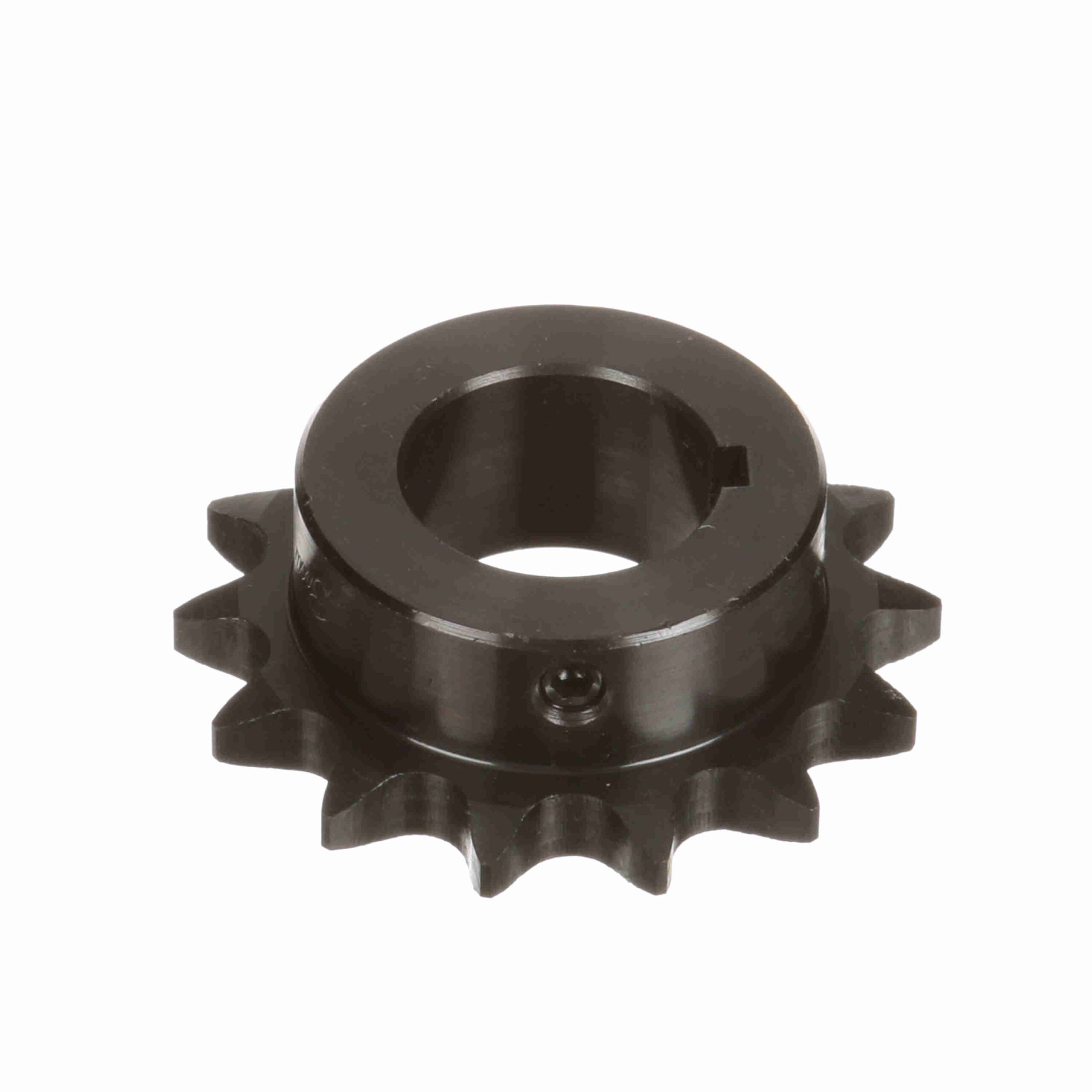

Browning Steel Finished Bore Roller Chain Sprocket – H5014X 1 1/4
$83.22
Out of stock
Out of stock
| Material: | Steel, Hardened Teeth | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Number of teeth: | 14 | Print Revision Level: | K |
| Chain Pitch (in): | 0.625 in | Pitch Diameter (in): | 2.809 in |
| Product Type: | Finished Bore Roller Chain Sprocket | Outside Diameter (in): | 3.113 in |
| Bore Type: | Finished Bore | Bore (in): | 1.25 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.141 in |
| Length Through Bore (in): | 1.016 in | Tooth Width (in): | 0.343 in |
| Hub Projection (in): | 0.656 in | Hub Type: | Type B |
| Keyway Size: | 1/4 X 1/8 | Hardened Teeth: | With Hardened Teeth |
| Pitch Type: | Single | UPC: | 662289293773 |
| Weight: | 0.88 LB | Packaged Length: | 3.35 Inches |
| Packaged Width: | 3.35 Inches | Packaged Height: | 1.18 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
