- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40P22

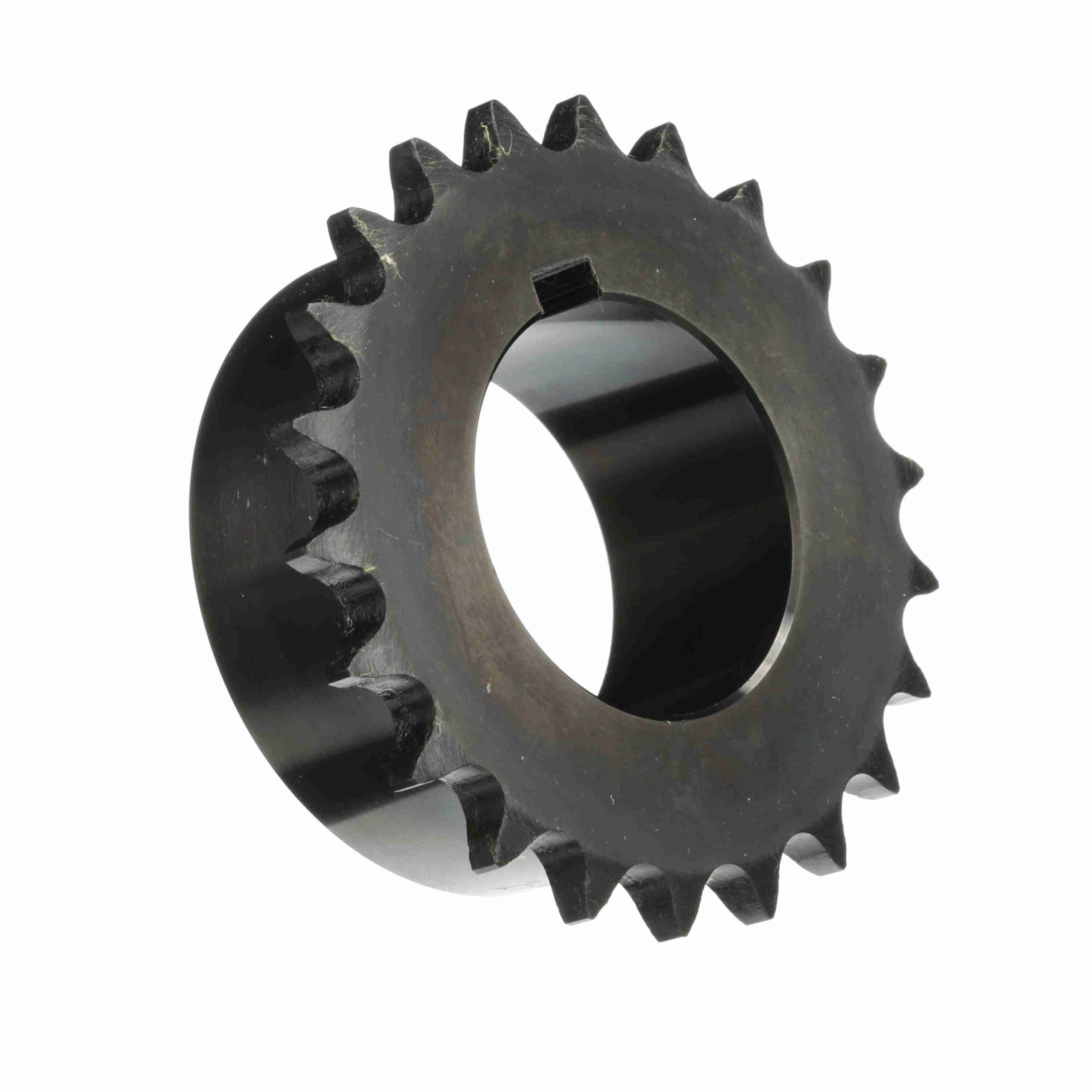

Browning Steel Bushed Bore Roller Chain Sprocket – H40P22
$151.56
Out of stock
Out of stock
| Pitch Diameter (in): | 3.513 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Bore (Max) (in): | 1.75 in |
| Bore (Min) (in): | 0.5 in | Material: | Steel, Hardened Teeth |
| Number of teeth: | 22 | Chain Pitch (in): | 0.5 in |
| Bushing Used: | Split Taper | Outside Diameter (in): | 3.778 in |
| Overall Length (in): | 2.216225 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.284 |
| Pitch Type: | Single | UPC: | 662289144761 |
| Weight: | 1.79 LB | Packaged Length: | 4.50 Inches |
| Packaged Width: | 4.50 Inches | Packaged Height: | 2.60 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
