- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40H30

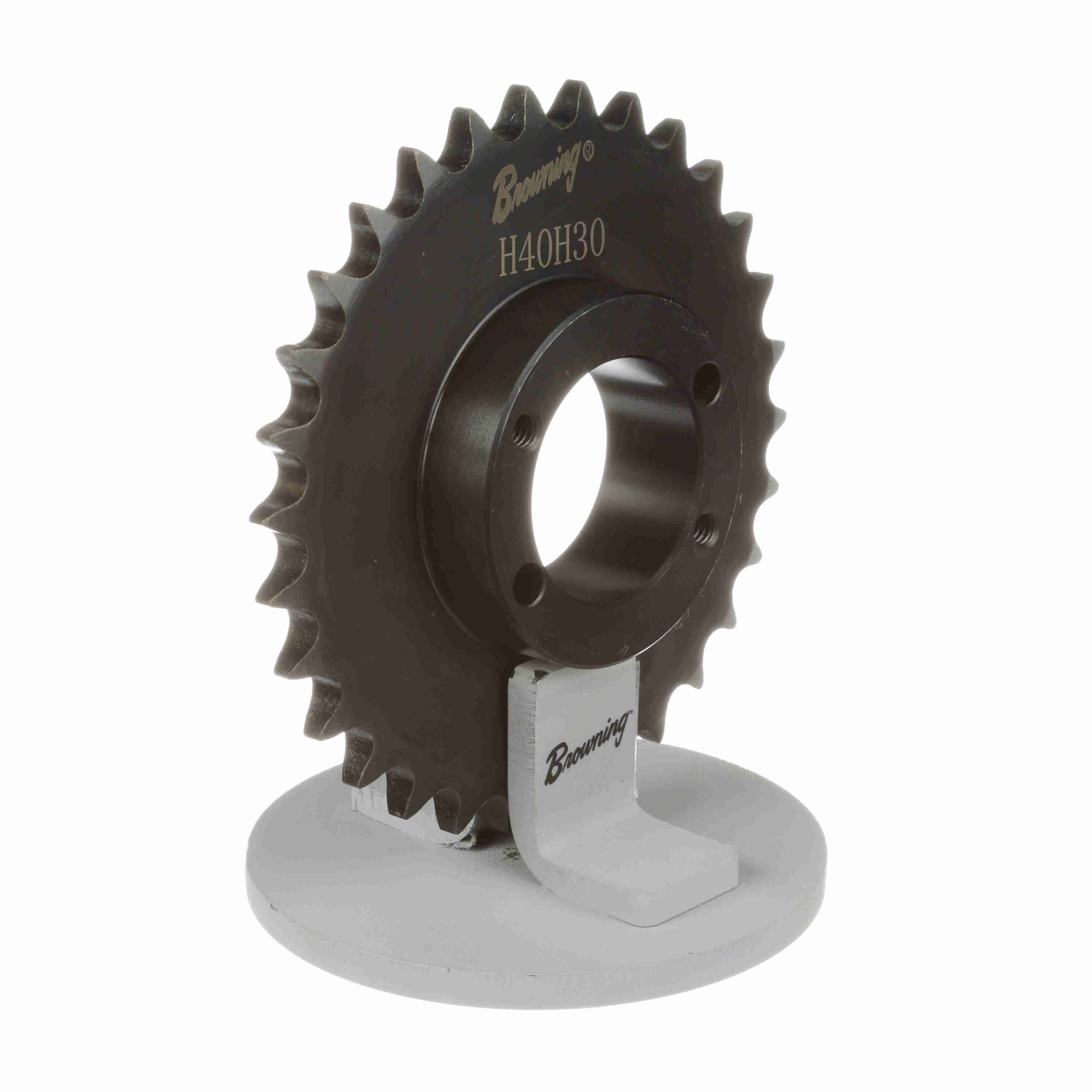

Browning Steel Bushed Bore Roller Chain Sprocket – H40H30
$206.68
Availability: 1 in stock
Availability: 1 in stock
| Bore (Max) (in): | 1.5 in | Chain Pitch (in): | 0.5 in |
|---|---|---|---|
| Bore (Min) (in): | 0.375 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 4.783 in |
| Number of teeth: | 30 | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Bore Type: | Bushed Bore |
| Overall Length (in): | 1.51225 in | Outside Diameter (in): | 5.057 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Number of Hubs: | 1 | Pitch Type: | Single |
| Width Across Tooth Sets: | 0.284 | UPC: | 662289174942 |
| Weight: | 1.71 LB | Packaged Length: | 5.70 Inches |
| Packaged Width: | 5.40 Inches | Packaged Height: | 1.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
