- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40H24

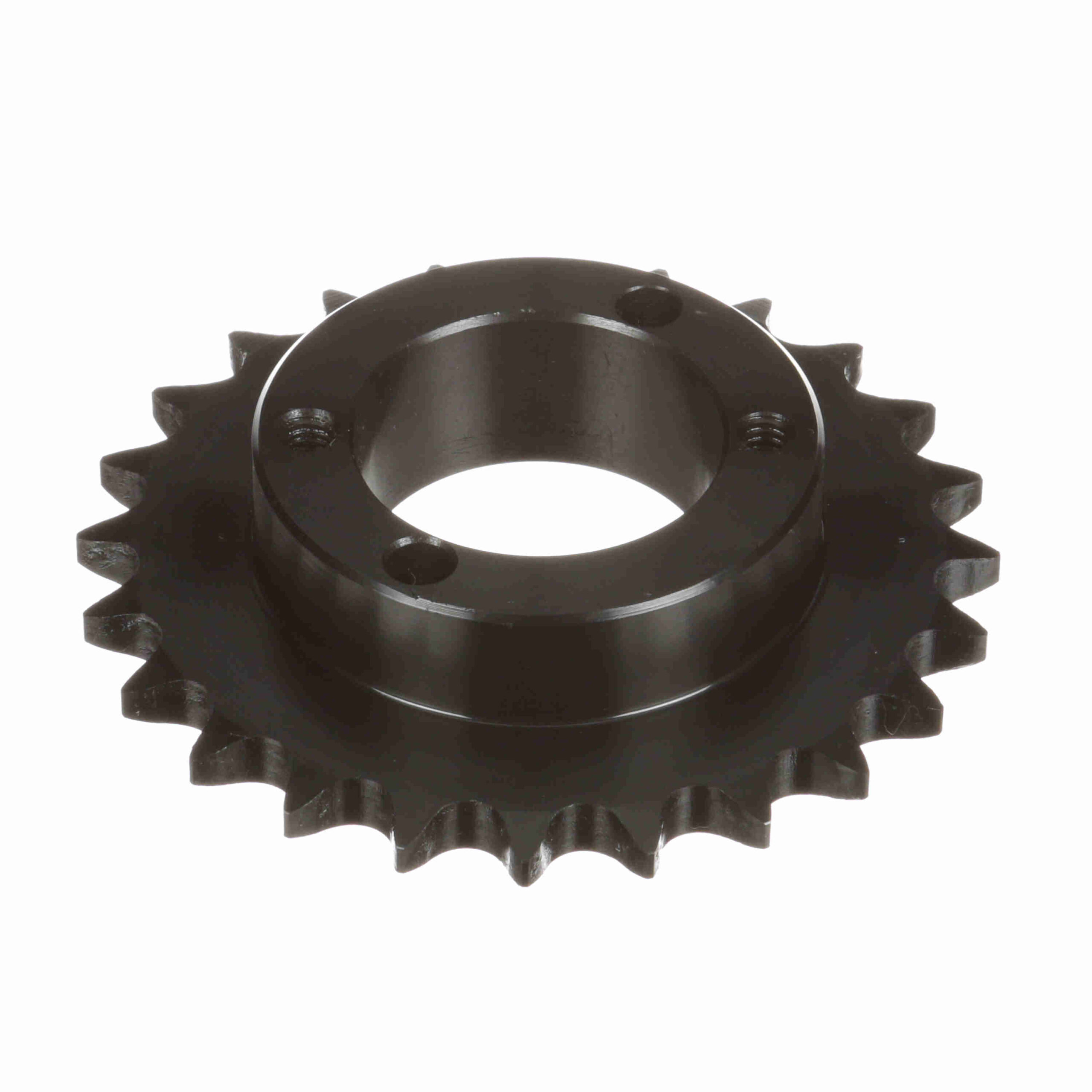

Browning Steel Bushed Bore Roller Chain Sprocket – H40H24
$166.59
Availability: 20 in stock
Availability: 20 in stock
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.5 in |
|---|---|---|---|
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Bore (Min) (in): | 0.375 in |
| Pitch Diameter (in): | 3.831 in | Material: | Steel, Hardened Teeth |
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 1.5 in |
| Number of teeth: | 24 | Outside Diameter (in): | 4.098 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 1.51225 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Minimum Bore (in): | 0.375 | Maximum Bore (in): | 1.5 |
| Width Across Tooth Sets: | 0.284 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289224845 |
| Weight: | 1.25 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.30 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
