- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40H15

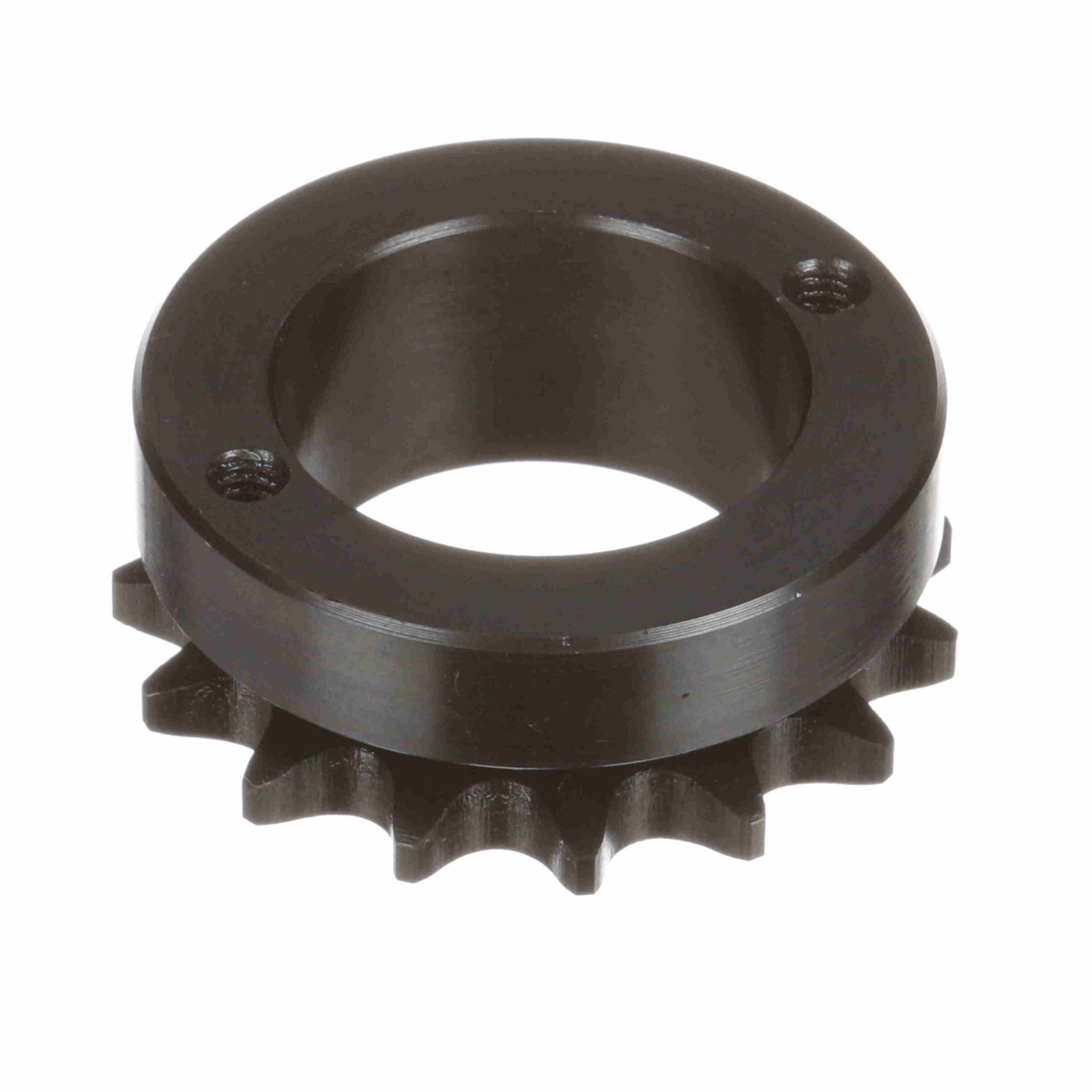

Browning Steel Bushed Bore Roller Chain Sprocket – H40H15
$84.04
Out of stock
Out of stock
| Product Type: | Bushed Roller Chain Sprocket | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Bushing Used: | Split Taper |
| Number of teeth: | 15 | Bore (Max) (in): | 1.5 in |
| Chain Pitch (in): | 0.5 in | Bore (Min) (in): | 0.375 in |
| Pitch Diameter (in): | 2.405 in | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 2.652 in | Overall Length (in): | 1.60825 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.494 in |
| Maximum Bore (in): | 1.5 | Minimum Bore (in): | 0.375 |
| Width Across Tooth Sets: | 0.284 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289264629 |
| Weight: | 0.64 LB | Packaged Length: | 2.90 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
