- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H40G16

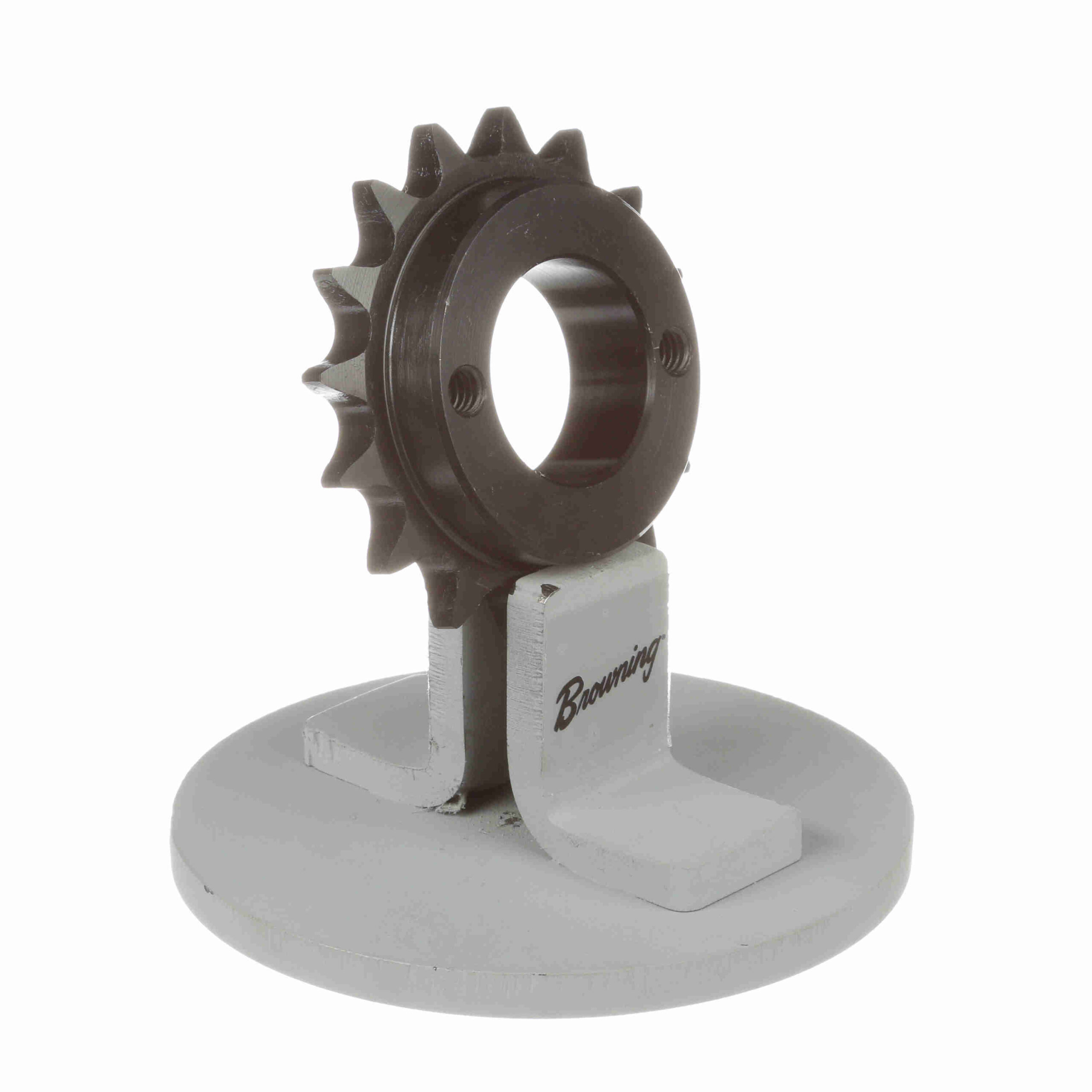

Browning Steel Bushed Bore Roller Chain Sprocket – H40G16
$115.35
Out of stock
Out of stock
| Bore (Min) (in): | 0.375 in | Material: | Steel |
|---|---|---|---|
| Bore (Max) (in): | 1 in | Chain Pitch (in): | 0.5 in |
| Pitch Diameter (in): | 2.563 in | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Number of teeth: | 16 |
| Bushing Used: | Split Taper | Outside Diameter (in): | 2.814 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 1.26825 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 2.015 in |
| Length Through Bore (in): | 1.25 in | Tooth Width (in): | 0.284 in |
| Minimum Bore (in): | 0 | Maximum Bore (in): | 1 |
| Hub Projection (in): | 1.12 | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.284 | Pitch Type: | Single |
| Hardened Teeth: | Yes | Overall Width (in): | 1.25 in |
| UPC: | 662289770205 | Weight: | 0.56 LB |
| Packaged Length: | 4.30 Inches | Packaged Width: | 4.30 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
