- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4016X7/8

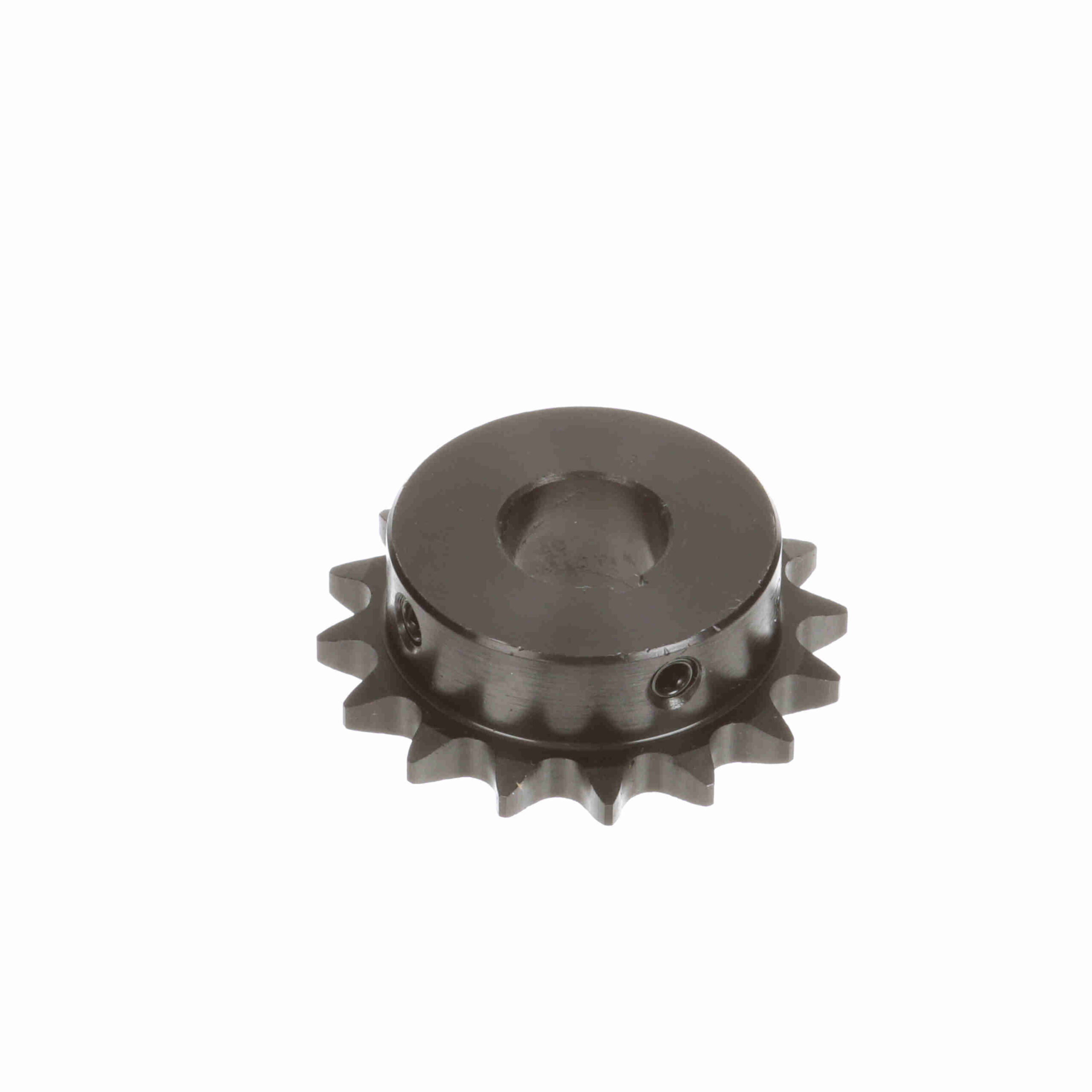

Browning Steel Finished Bore Roller Chain Sprocket – H4016X7/8
Out of stock
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Material: | Steel, Hardened Teeth |
|---|---|---|---|
| Product Type: | Finished Bore Roller Chain Sprocket | Chain Pitch (in): | 0.5 in |
| Number of teeth: | 16 | Print Revision Level: | N |
| Pitch Diameter (in): | 2.563 in | Bore Type: | Finished Bore |
| Outside Diameter (in): | 2.814 in | Number of Strands/Width: | 1 |
| Bore (in): | 0.875 in | Hub Projection (in): | 0.596 in |
| Length Through Bore (in): | 0.891 in | Hub Diameter (in): | 2.078 in |
| Hub Type: | Type B | Tooth Width (in): | 0.284 in |
| Hardened Teeth: | With Hardened Teeth | Pitch Type: | Single |
| Keyway Size: | 3/16 X 3/32 | UPC: | 662289143115 |
| Weight: | 0.80 LB | Packaged Length: | 3.35 Inches |
| Packaged Width: | 3.35 Inches | Packaged Height: | 1.18 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
