- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4012X3/4

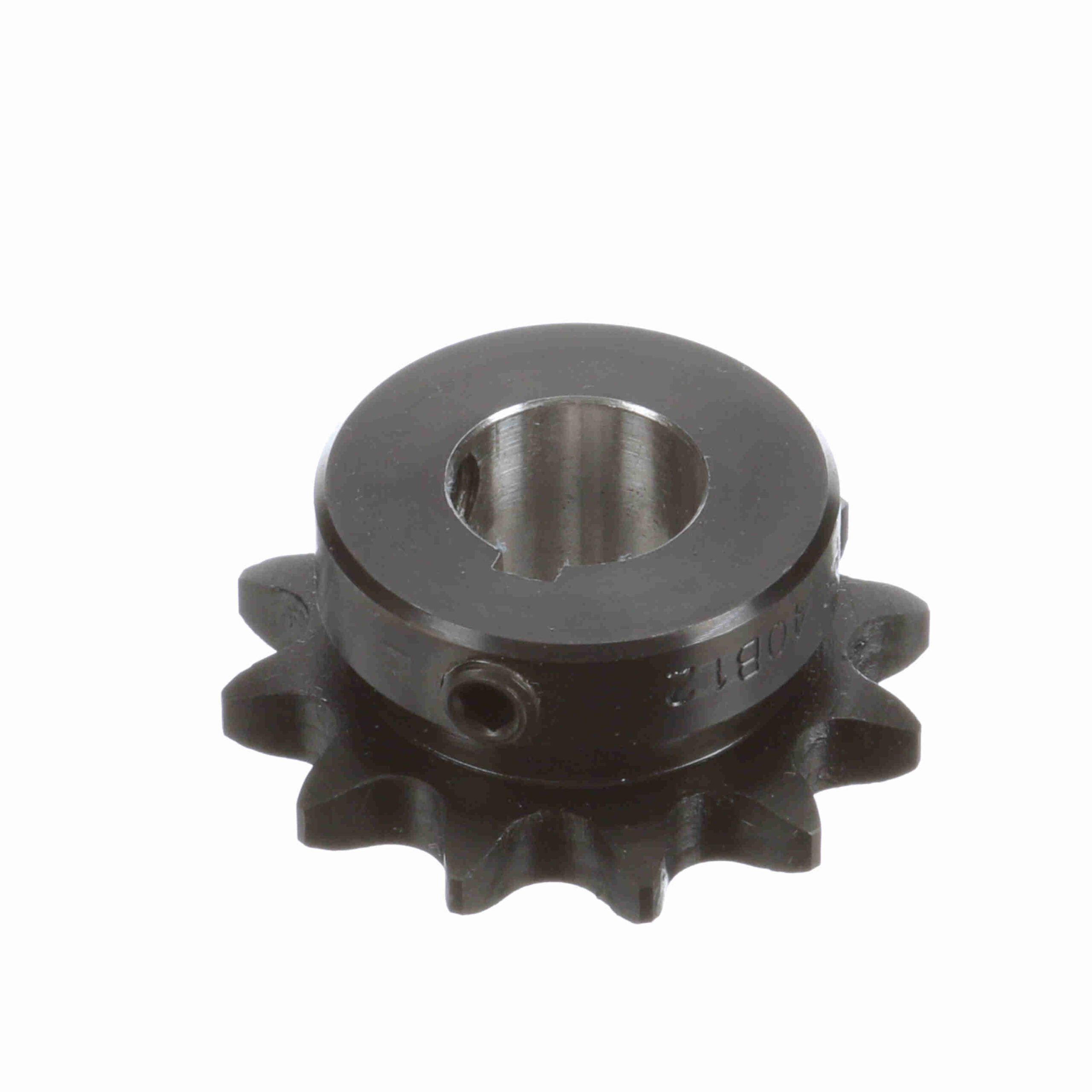

Browning Steel Finished Bore Roller Chain Sprocket – H4012X3/4
Out of stock
| Pitch Diameter (in): | 1.932 in | Print Revision Level: | M |
|---|---|---|---|
| Product Type: | Finished Bore Roller Chain Sprocket | Chain Pitch (in): | 0.5 in |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Material: | Steel, Hardened Teeth |
| Number of teeth: | 12 | Bore Type: | Finished Bore |
| Outside Diameter (in): | 2.166 in | Bore (in): | 0.75 in |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.284 in |
| Hub Projection (in): | 0.596 in | Hub Type: | Type B |
| Length Through Bore (in): | 0.891 in | Hub Diameter (in): | 1.609 in |
| Hardened Teeth: | With Hardened Teeth | Keyway Size: | 3/16 X 3/32 |
| Pitch Type: | Single | UPC: | 662289292868 |
| Weight: | 0.44 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.38 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
