- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway.
H4011X5/8

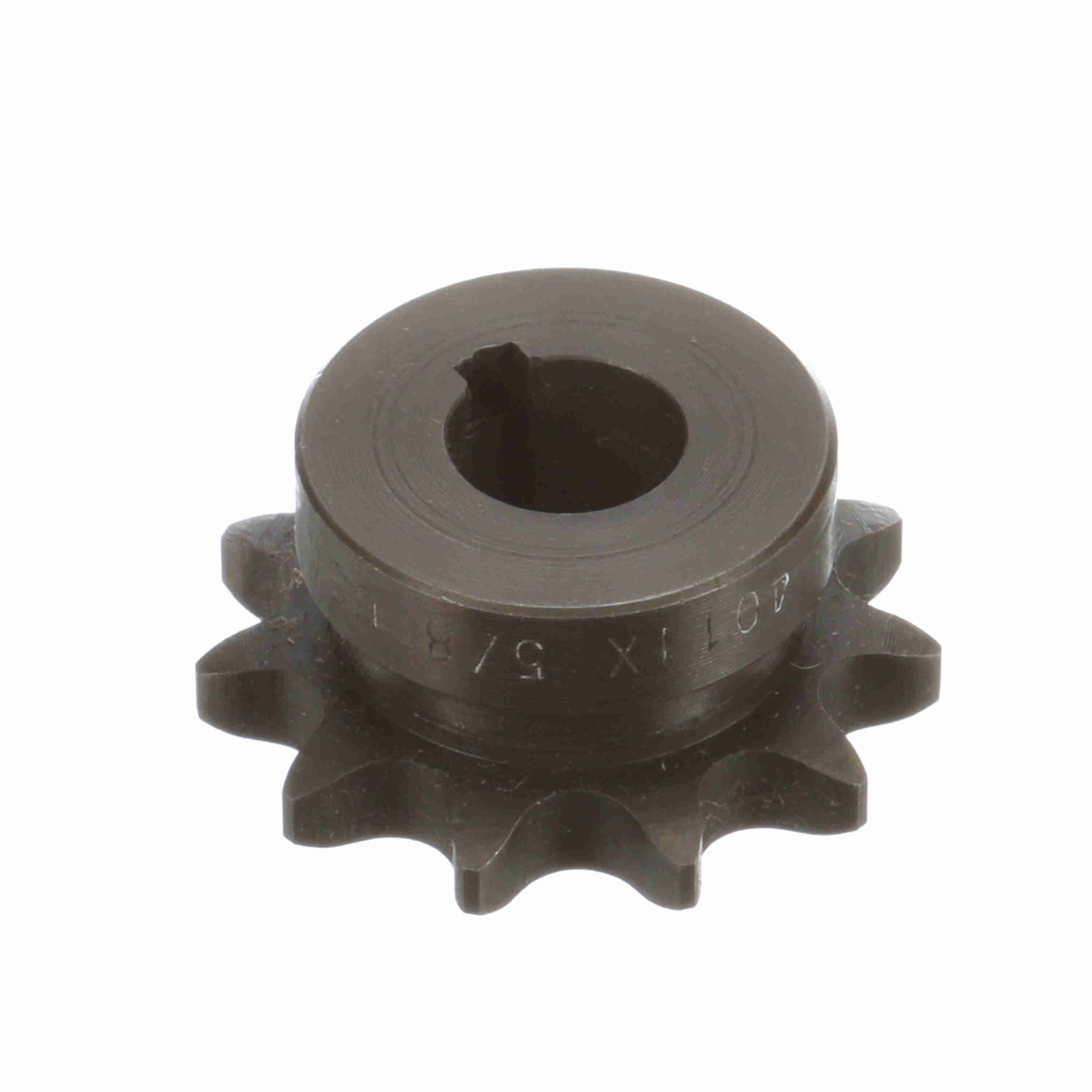

Browning Steel Finished Bore Roller Chain Sprocket – H4011X5/8
Out of stock
| Product Type: | Finished Bore Roller Chain Sprocket | Print Revision Level: | N |
|---|---|---|---|
| Pitch Diameter (in): | 1.775 in | Chain Pitch (in): | 0.5 in |
| Number of teeth: | 11 | Material: | Steel, Hardened Teeth |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Tooth Width (in): | 0.284 in |
| Hub Projection (in): | 0.596 in | Outside Diameter (in): | 2.003 in |
| Bore Type: | Finished Bore | Length Through Bore (in): | 0.875 in |
| Sprocket Material: | Steel, Hardened Teeth | Hub Type: | Type B |
| Hub Diameter (in): | 1.375 in | Overall Length (in): | 0.875 in |
| Number of Strands/Width: | 1 | Bore (in): | 0.625 in |
| Pitch Type: | Single | Hardened Teeth: | With Hardened Teeth |
| Keyway Size: | 3/16 x 3/32 | UPC: | 662289122806 |
| Weight: | 0.36 LB | Packaged Length: | 2.56 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 1.38 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
