- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H140Q11

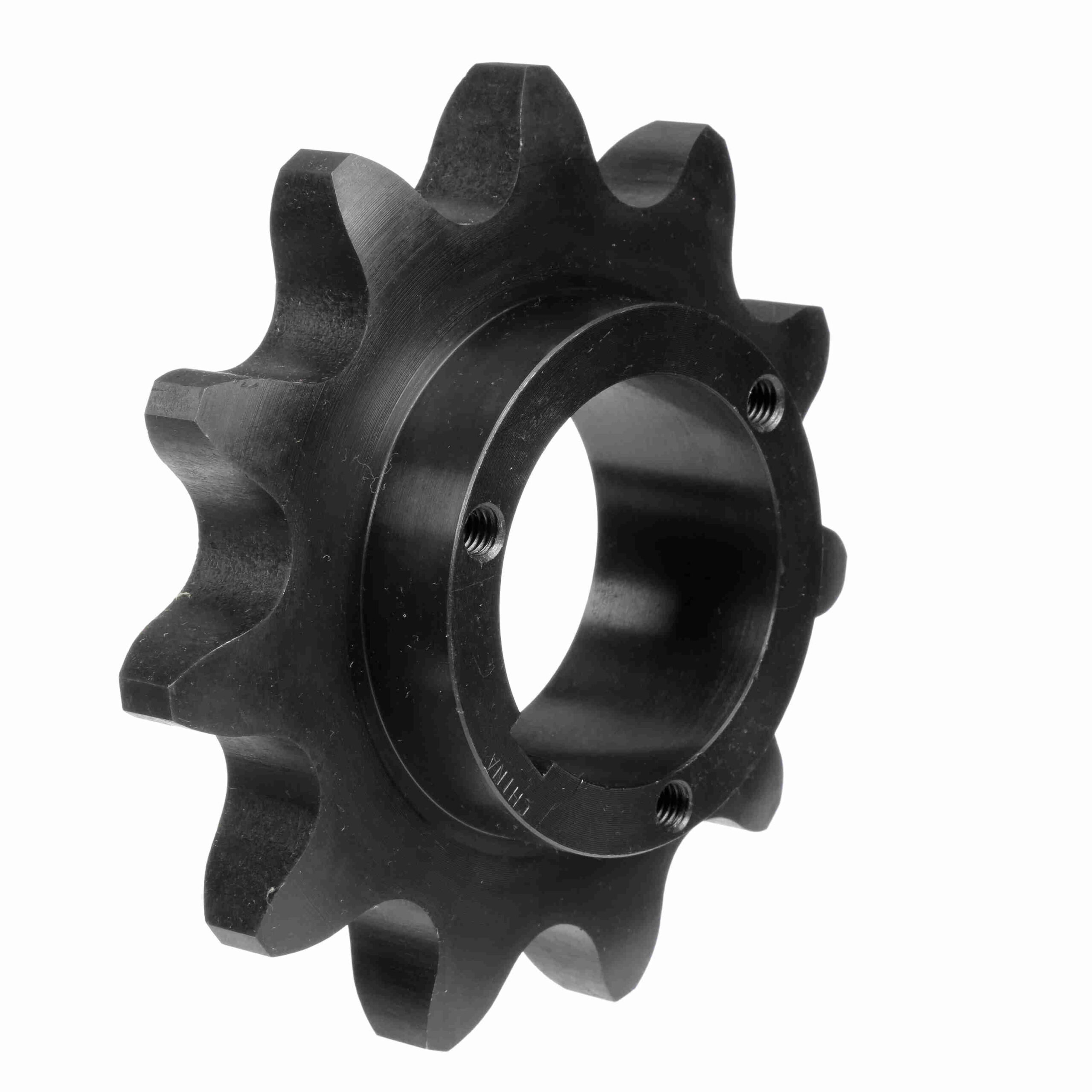

Browning Steel Bushed Bore Roller Chain Sprocket – H140Q11
$677.28
Out of stock
Out of stock
| Material: | Steel, Hardened Teeth | Chain Pitch (in): | 1.75 in |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Pitch Diameter (in): | 6.212 in |
| Bore (Min) (in): | 0.75 in | Number of teeth: | 11 |
| Chain Used: | No. 140, 1-3/4 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
| Bore (Max) (in): | 2.6875 in | Outside Diameter (in): | 7.01 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Width Across Tooth Sets: | 0.924 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289226719 |
| Weight: | 7.00 LB | Packaged Length: | 8.10 Inches |
| Packaged Width: | 8.10 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
