- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H120R24

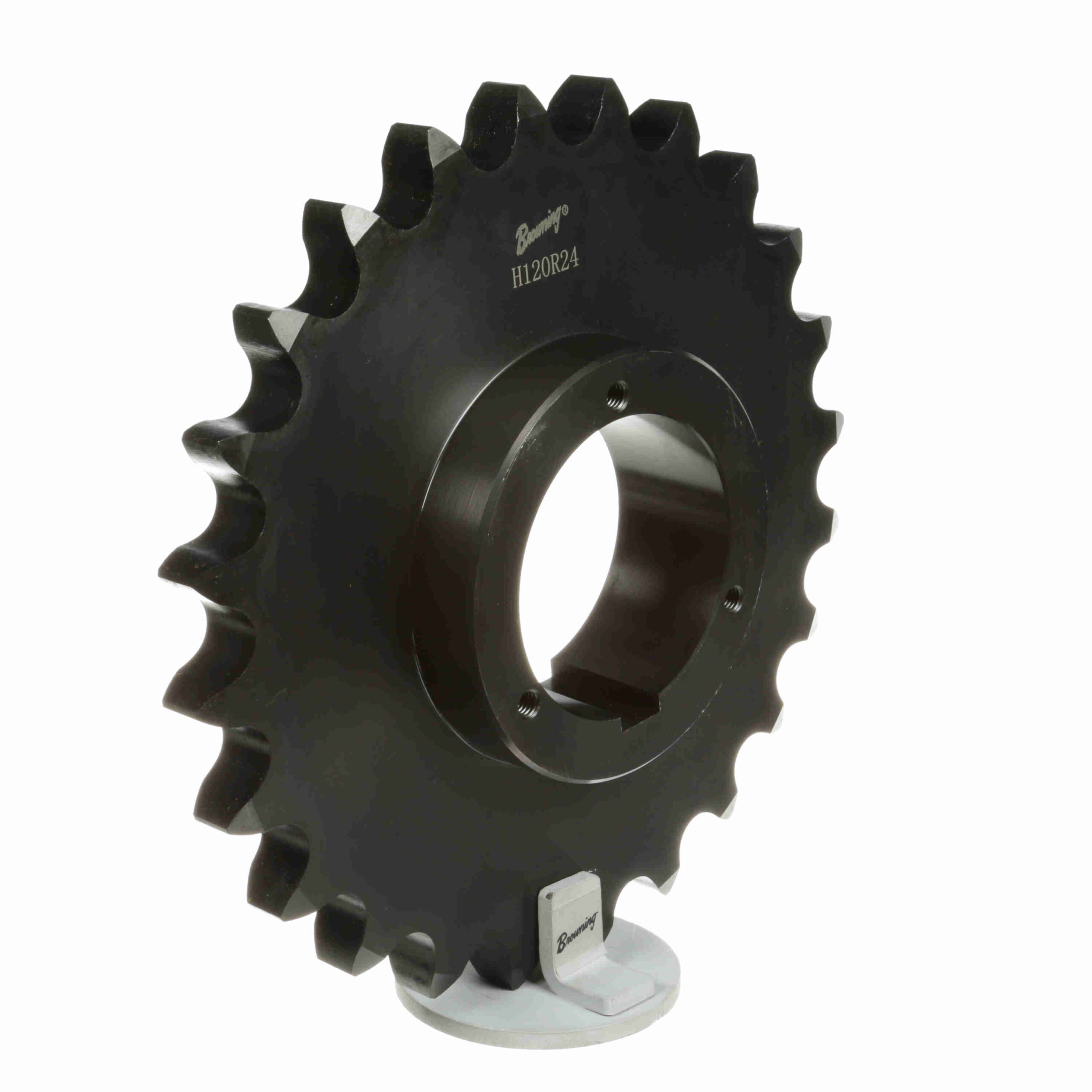

Browning Steel Bushed Bore Roller Chain Sprocket – H120R24
$980.25
Out of stock
Out of stock
| Bushing Used: | Split Taper | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Pitch Diameter (in): | 11.492 in | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain | Material: | Steel, Hardened Teeth |
| Bore (Max) (in): | 3.75 in | Number of teeth: | 24 |
| Chain Pitch (in): | 1.5 in | Overall Length (in): | 3.219375 in |
| Outside Diameter (in): | 12.294 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.924 | UPC: | 662289166657 |
| Weight: | 27.30 LB | Packaged Length: | 14.00 Inches |
| Packaged Width: | 13.70 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
