- This Product has the Browning Exclusive Twice the Life Guarantee
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
H120R22

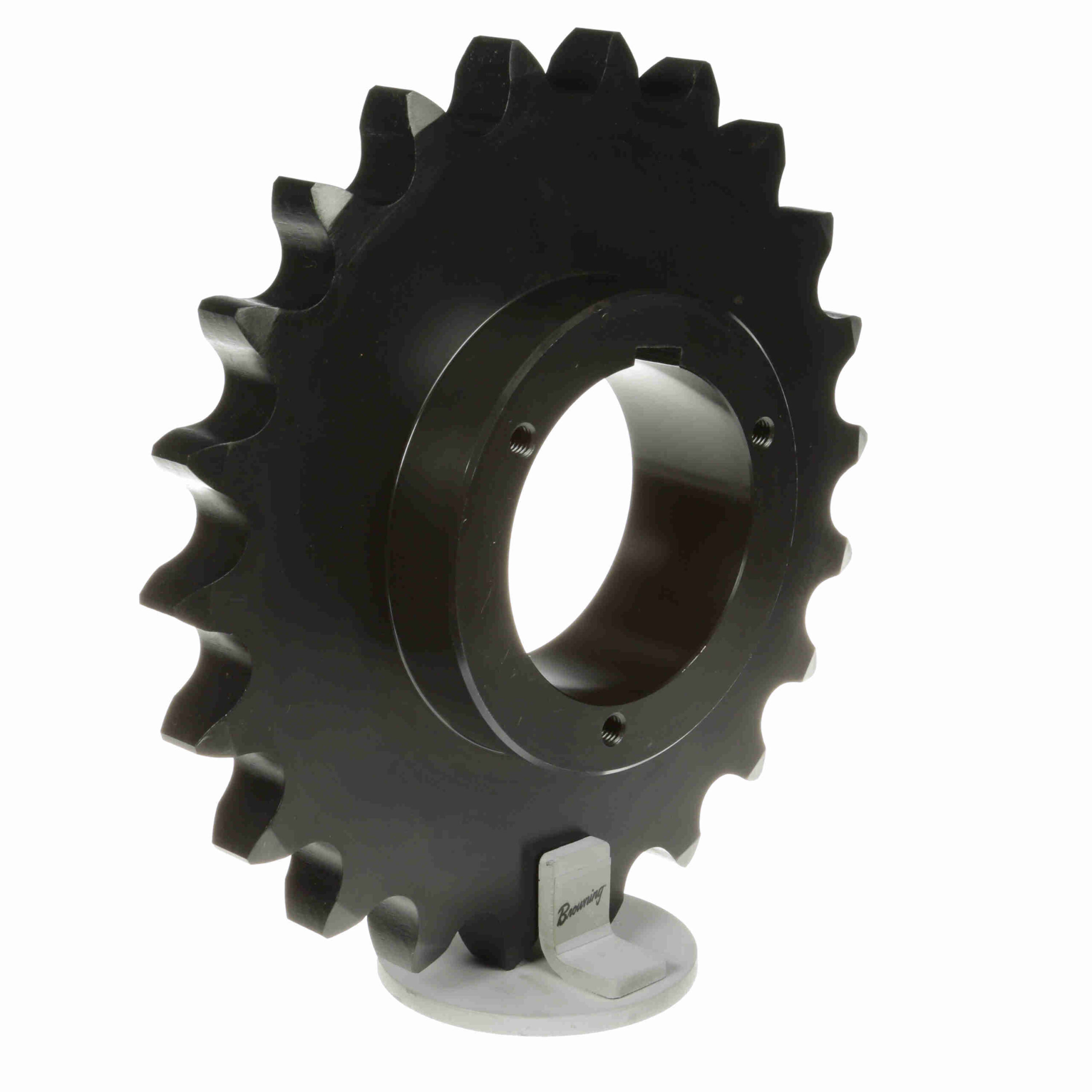

Browning Steel Bushed Bore Roller Chain Sprocket – H120R22
$1,044.03
Out of stock
Out of stock
| Chain Used: | No. 120, 1-1/2 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
|---|---|---|---|
| Number of teeth: | 22 | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Max) (in): | 3.75 in | Chain Pitch (in): | 1.5 in |
| Pitch Diameter (in): | 10.54 in | Bore (Min) (in): | 1.125 in |
| Material: | Steel, Hardened Teeth | Outside Diameter (in): | 11.333 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 3.219375 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 0.924 |
| Pitch Type: | Single | UPC: | 662289186600 |
| Weight: | 22.82 LB | Packaged Length: | 12.10 Inches |
| Packaged Width: | 11.80 Inches | Packaged Height: | 2.30 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
