- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 36 MM

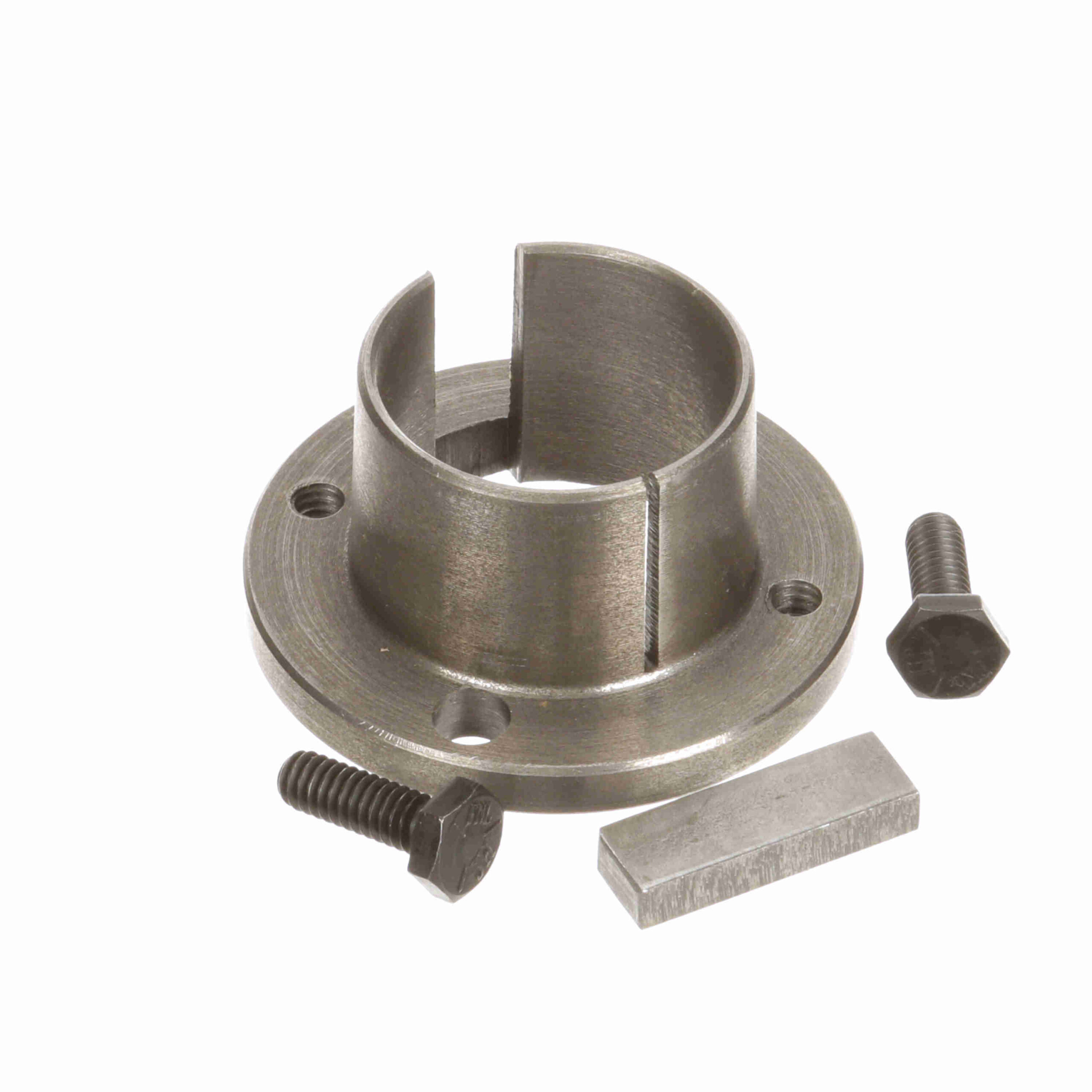

Browning Split Taper Bushing – Metric Bore Type – H 36 MM
$46.73
Out of stock
Out of stock
| Wrench Torque (in-lb): | 95 | Compatible Bore Size [Max] (mm): | 36 mm |
|---|---|---|---|
| Total Length (in): | 1.25 in | Bore Size (mm): | 36 mm |
| Product Type: | Split Taper Bushing | Cap Screws (Size): | 1/4 x 3/4 |
| Model Name: | H-Bushing_2_Master | Length Through Bore (mm): | 31.75 mm |
| Keyseat (mm): | 10 x 4 mm | Total Length (mm): | 31.75 mm |
| Outside Diameter (in): | 2.5 in | Bushing Type: | H |
| Outside Diameter (mm): | 63.5 mm | Material: | Sintered Steel or Ductile Iron |
| Cap Screws (No.): | 2 | Bore Type: | Metric |
| UPC: | 662289320875 | Weight: | 0.83 LB |
| Packaged Length: | 2.8 Inches | Packaged Width: | 2.6 Inches |
| Packaged Height: | 1.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
