- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 32 MM

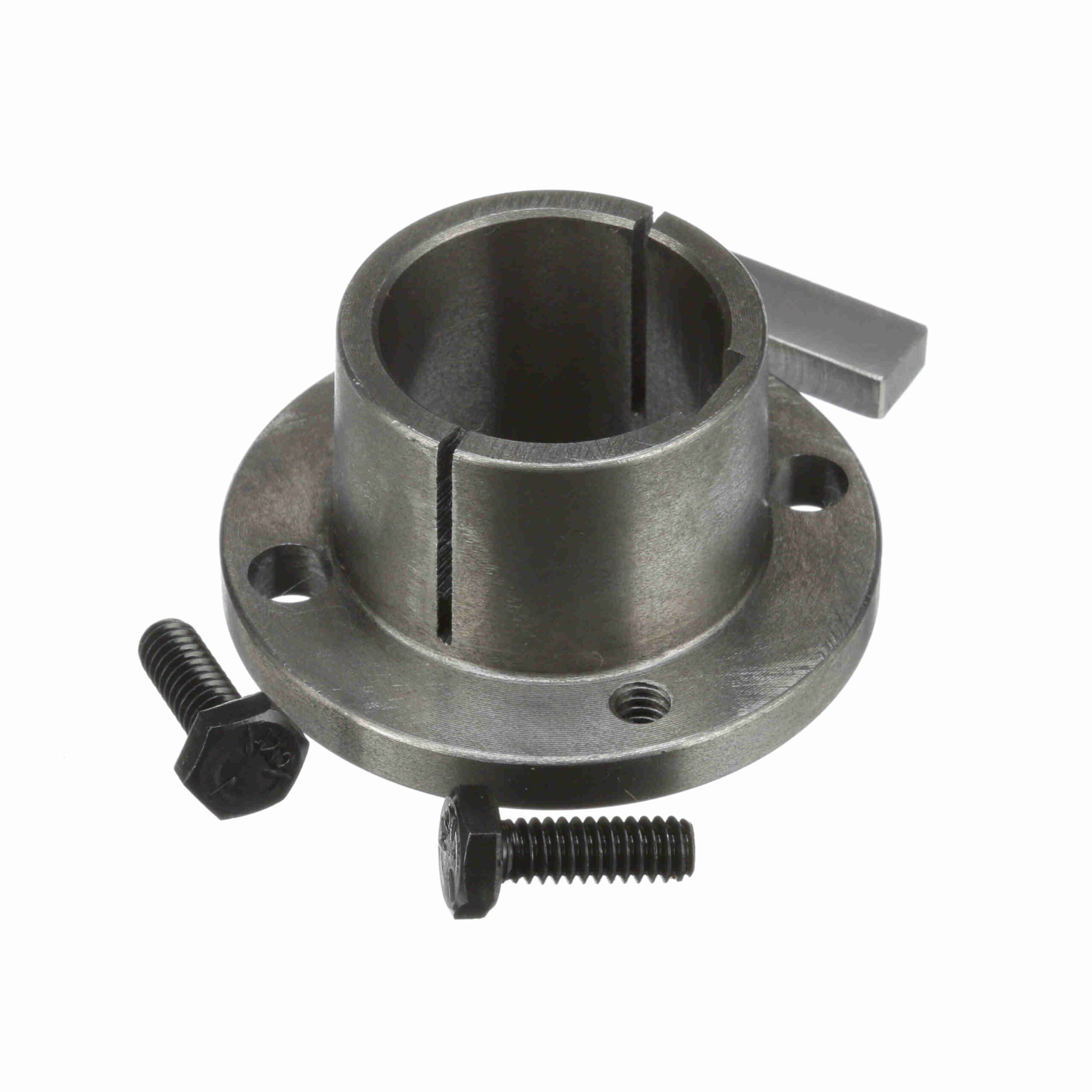

Browning Split Taper Bushing – Metric Bore Type – H 32 MM
Out of stock
| Keyseat (mm): | 10 x 4 mm | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Cap Screws (Size): | 1/4 x 3/4 | Compatible Bore Size [Max] (mm): | 32 mm |
| Outside Diameter (mm): | 63.5 mm | Wrench Torque (in-lb): | 95 |
| Outside Diameter (in): | 2.5 in | Bushing Type: | H |
| Total Length (mm): | 31.75 mm | Length Through Bore (mm): | 31.75 mm |
| Product Type: | Split Taper Bushing | Model Name: | H-Bushing_1_Master |
| Bore Size (mm): | 32 mm | Total Length (in): | 1.25 in |
| Cap Screws (No.): | 2 | Bore Type: | Metric |
| Screw Length: | 0.75 | Bolt Circle Diameter (in): | 2 |
| Mounting Type: | Conventional | Flange Thickness: | 0.25 |
| Barrel Diameter (Large End): | 1.625 | Barrel Diameter (Small End): | 1.57 |
| Flange Type: | Solid Flange | Includes: | Cap Screws & Spcl Key |
| Thread Size: | 1/4-20 | UPC: | 662289163182 |
| Weight: | 0.52 LB | Packaged Length: | 2.7 Inches |
| Packaged Width: | 2.8 Inches | Packaged Height: | 1.5 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
