- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
H 11/16

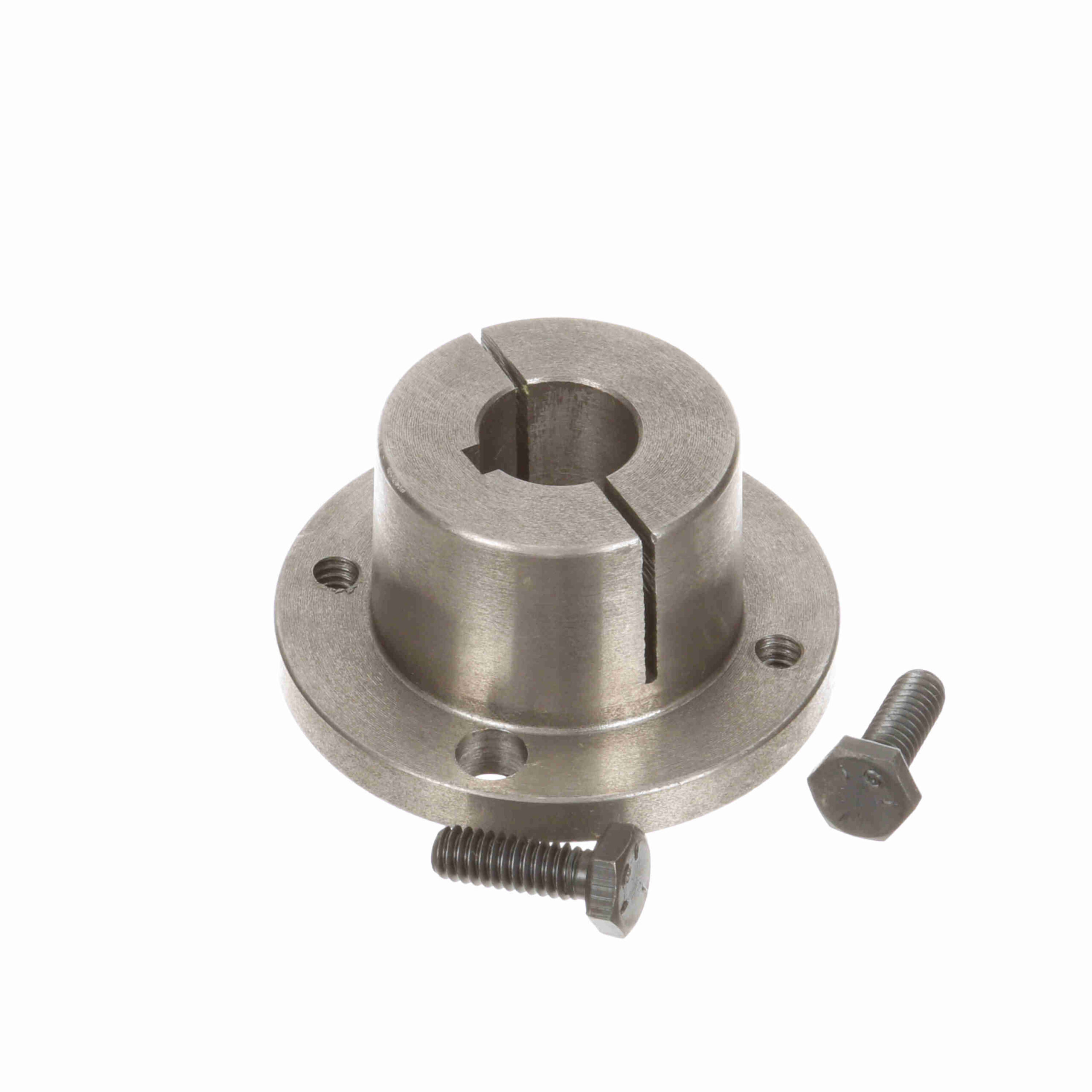

Browning Split Taper Bushing – Inch Bore Type – H 11/16
$33.18
Out of stock
Out of stock
| Material: | Sintered Steel or Ductile Iron | Bushing Type: | H |
|---|---|---|---|
| Wrench Torque (in-lb): | 95 | Cap Screws (Size): | 1/4 x 3/4 |
| Outside Diameter (in): | 2.5 in | Bore Size (in): | 0.6875 in |
| Total Length (in): | 1.25 in | Compatible Bore Size [Max] (in): | 0.6875 in |
| Keyseat: | 3/16 x 3/32 | Length Through Bore (in): | 1.25 in |
| Model Name: | H-Bushing_1_Master | Product Type: | Split Taper Bushing |
| Cap Screws (No.): | 2 | Bore Type: | Inch |
| UPC: | 662289278992 | Weight: | 0.75 LB |
| Packaged Length: | 2.7 Inches | Packaged Width: | 2.8 Inches |
| Packaged Height: | 1.5 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
