- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
- Clear Pack packaging for end cap display
H 1 CLEAR PK

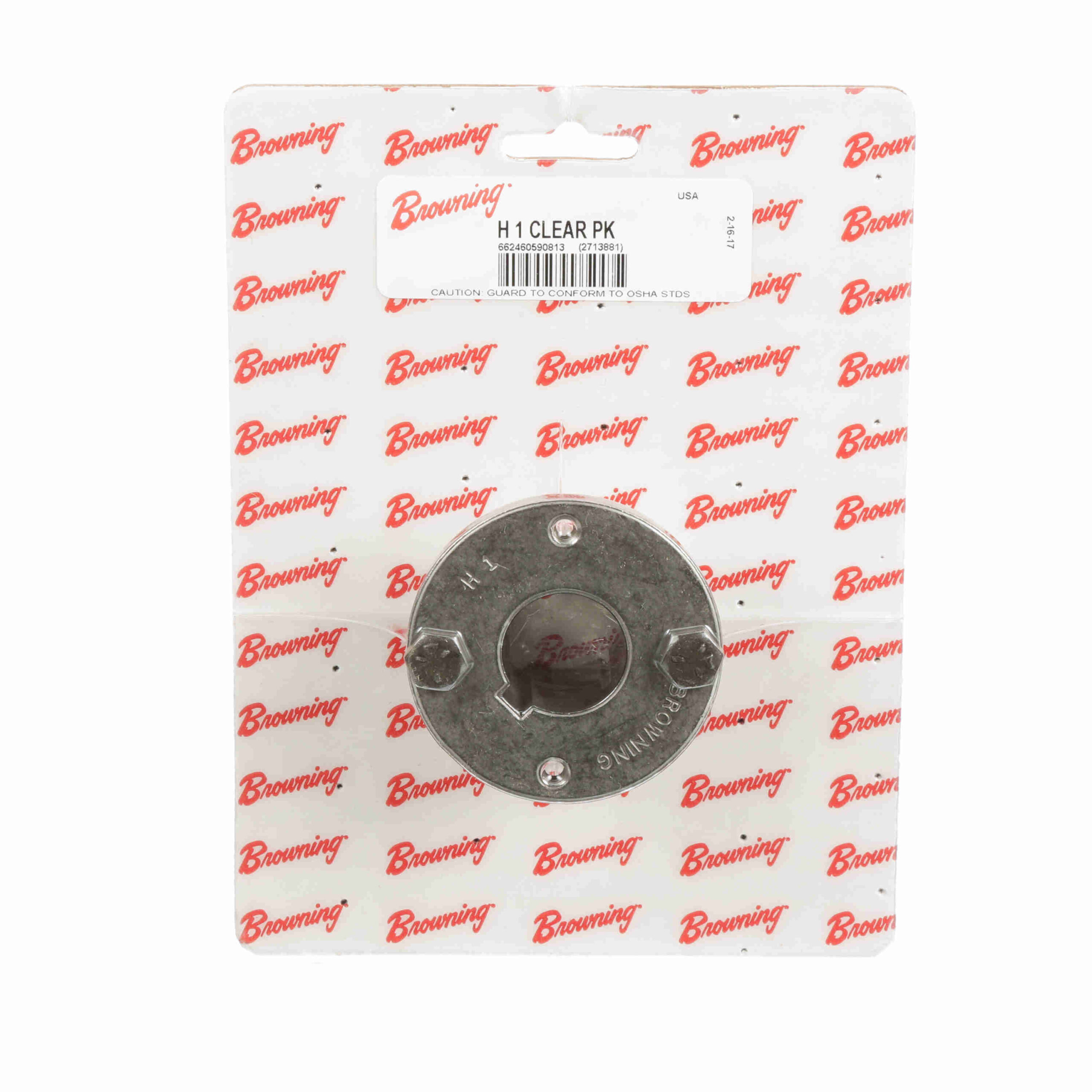

Browning Split Taper Bushing – Inch Bore Type – H 1 CLEAR PK
$22.62
Out of stock
Out of stock
| Bushing Type: | H | Wrench Torque (in-lb): | 95 |
|---|---|---|---|
| Material: | Sintered Steel or Ductile Iron | Model Name: | H-Bushing_1_Master |
| Bore Size (in): | 1 in | Compatible Bore Size [Max] (in): | 1 in |
| Length Through Bore (in): | 1.25 in | Total Length (in): | 1.25 in |
| Outside Diameter (in): | 2.5 in | Cap Screws (Size): | 1/4 x 3/4 |
| Keyseat: | 1/4 x 1/8 | Product Type: | Split Taper Bushing |
| Cap Screws (No.): | 2 | Bore Type: | Inch |
| UPC: | 662460590813 | Weight: | 0.58 LB |
| Packaged Length: | 5.5 Inches | Packaged Width: | 7.25 Inches |
| Packaged Height: | 1.75 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | United States of America |
