- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned out
- With separable inner ring

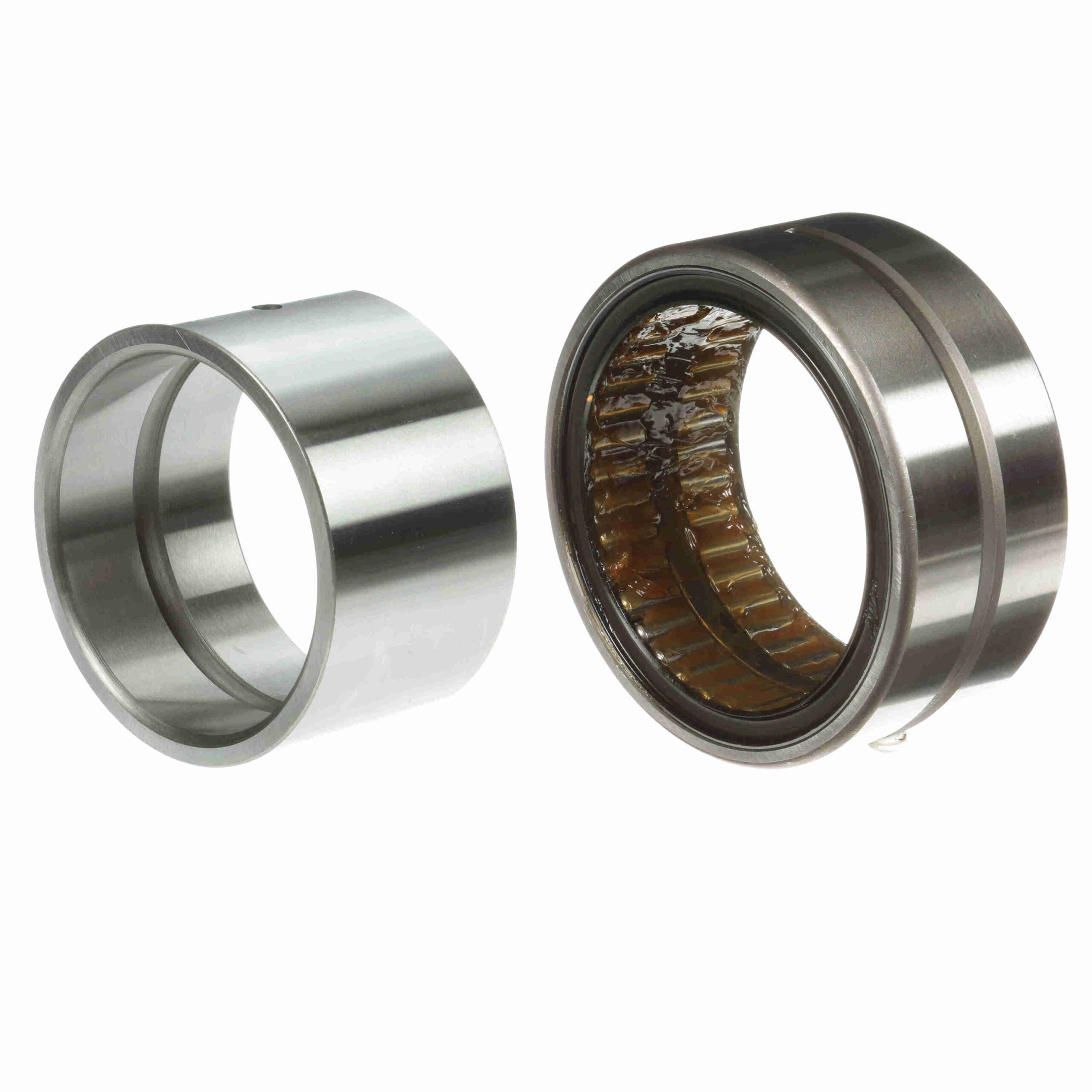

GR 56 RS/MI 48 DS
McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 56 RS/MI 48 DS
$3,368.50
Out of stock
Out of stock
| Series: | Standard | Material: | 52100 Bearing Steel |
|---|---|---|---|
| Includes Inner Ring: | Yes | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Number of Rows: | 2 |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Radial Clearance: | Normal | Bore Type: | Straight |
| Duplexing: | Yes | Dynamic Load Rating (lb): | 28, 900 lb |
| Static Load Rating (lb): | 86, 500 lb | Sealed: | Sealed - One Side |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Speed [Max] Grease (RPM): | 1, 090 rpm | Precision Rating: | Not Rated |
| Standard Met: | ABMA, ISO | Lubrication Hole Type: | Lubrication Groove & Hole |
| Enclosure: | Sealed One Side | Component Type: | Outer race only |
| Separable: | Inner ring - both sides | Retainer: | No |
| Operating Temperature Range (F): | -20F to 250 °F °F | UPC: | 726166063191 |
| Weight: | 8.40 LB | Packaged Length: | 6.3 Inches |
| Packaged Width: | 4.5 Inches | Packaged Height: | 4.9 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
