- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Double rubber-lipped seals with both lips turned in
GR 28 SS

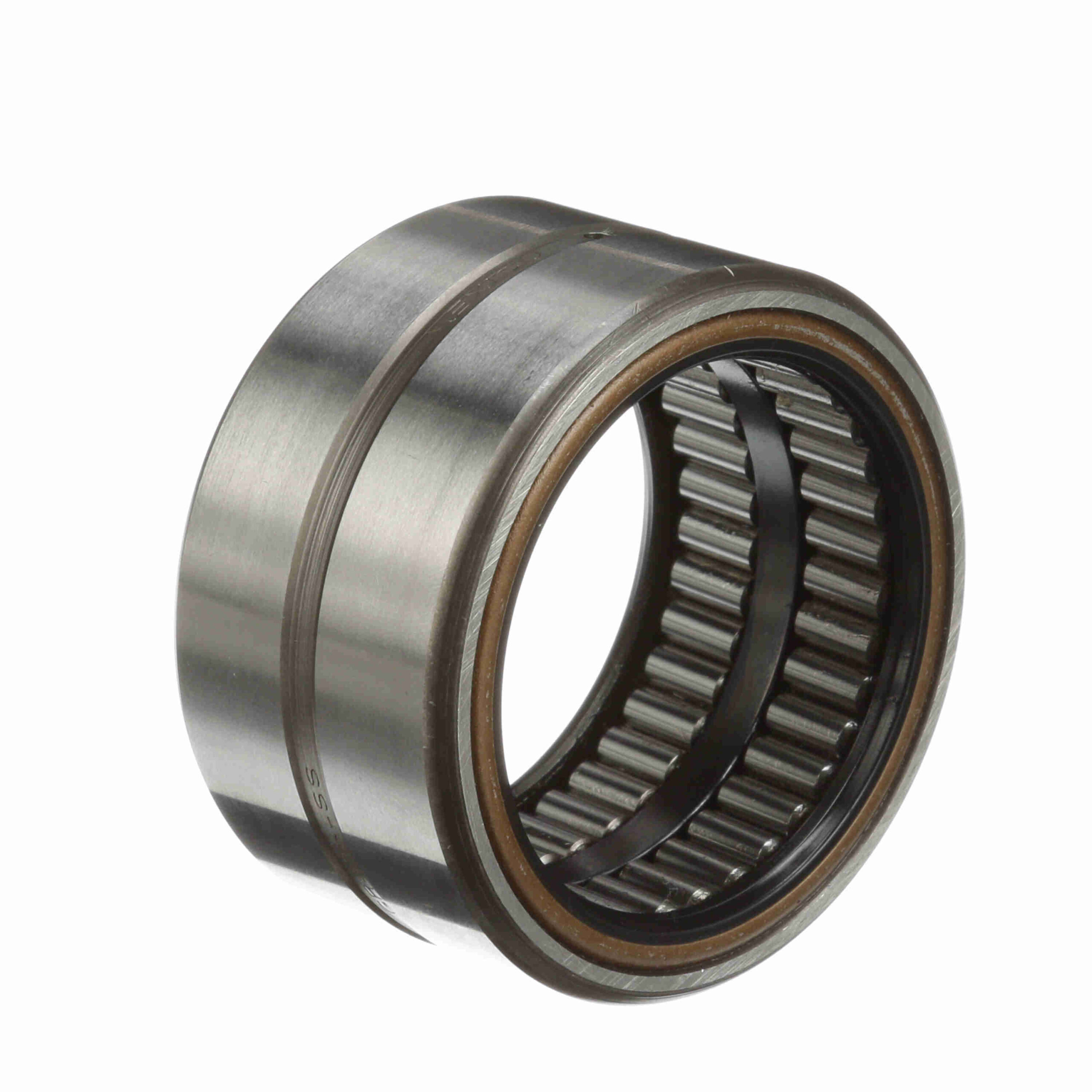

McGill Guiderol® Radial Radial Needle Roller Bearing (with inner) – Sealed – GR 28 SS
$62.88
Availability: 8 in stock
Availability: 8 in stock
| Material: | 52100 Bearing Steel | Series: | Standard |
|---|---|---|---|
| Includes Inner Ring: | No | Cage Material: | No retainer |
| Number of Rows: | 1 | Bore Type: | Straight |
| Radial Clearance: | Normal | Seal Type: | Rubber Lip |
| Misalignment: | No | Rolling Element: | Needle Roller |
| Full Complement/Caged: | Full Complement | Platform: | Guiderol Bearing |
| Duplexing: | No | Dynamic Load Rating (lb): | 7, 750 lb |
| Sealed: | Sealed - Both Sides | Speed [Max] Grease (RPM): | 2, 180 rpm |
| Static Load Rating (lb): | 23, 300 lb | Standard Met: | ABMA, ISO |
| Flanges: | No Flanges | Related Inner Ring: | MI 22 |
| Lubrication Hole Type: | Lubrication Groove & Hole | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Separable: | Nonseparable |
| Enclosure: | Sealed Both Sides | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166062255 |
| Weight: | 0.52 LB | Packaged Length: | 2.31 Inches |
| Packaged Width: | 1.56 Inches | Packaged Height: | 2.31 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
