- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
GR 18

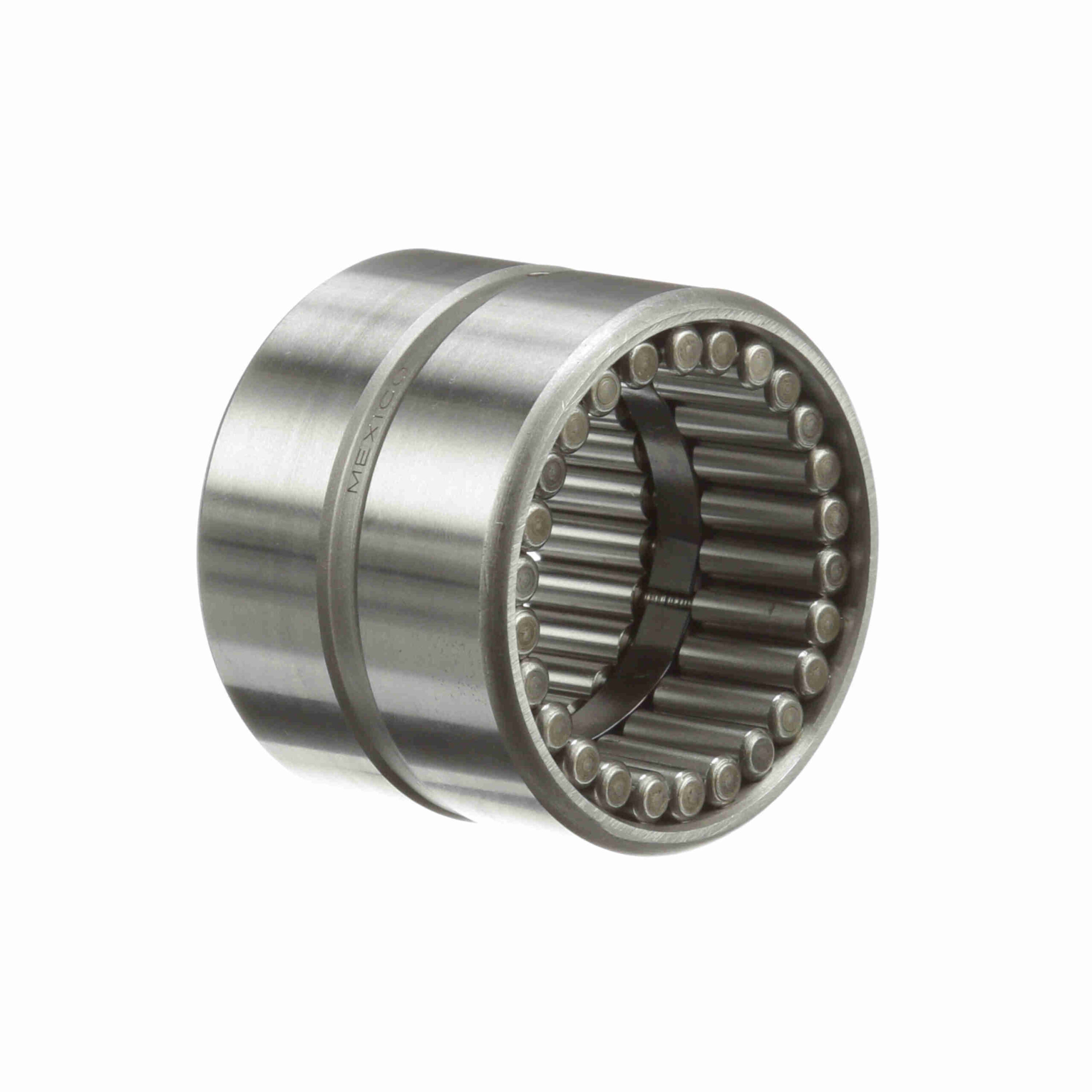

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – GR 18
$101.39
Out of stock
Out of stock
| Includes Inner Ring: | No | Series: | Standard |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Misalignment: | No | Bore Type: | Straight |
| Radial Clearance: | Normal | Rolling Element: | Needle Roller |
| Seal Type: | Unsealed | Number of Rows: | 1 |
| Sealed: | None | Full Complement/Caged: | Full Complement |
| Dynamic Load Rating (lb): | 7, 900 lb | Speed [Max] Grease (RPM): | 2, 650 rpm |
| Platform: | Guiderol Bearing | Static Load Rating (lb): | 20, 900 lb |
| Duplexing: | No | Speed [Max] Oil (RPM): | 5, 300 rpm |
| Lubrication Hole Type: | Lubrication groove and hole | Related Inner Ring: | MI 15 |
| Flanges: | No flange | Precision Rating: | RBEC-1 |
| Component Type: | Outer race only | Enclosure: | Open |
| Separable: | Nonseparable | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166061685 |
| Weight: | 0.32 LB | Packaged Length: | 1.5 Inches |
| Packaged Width: | 1.75 Inches | Packaged Height: | 2.18 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
