- Machined race needle bearing
- Full complement of center-guided needle rolling elements
- Annular lubrication groove
- Single rubber-lipped seal with lip turned out
GR 10 RS

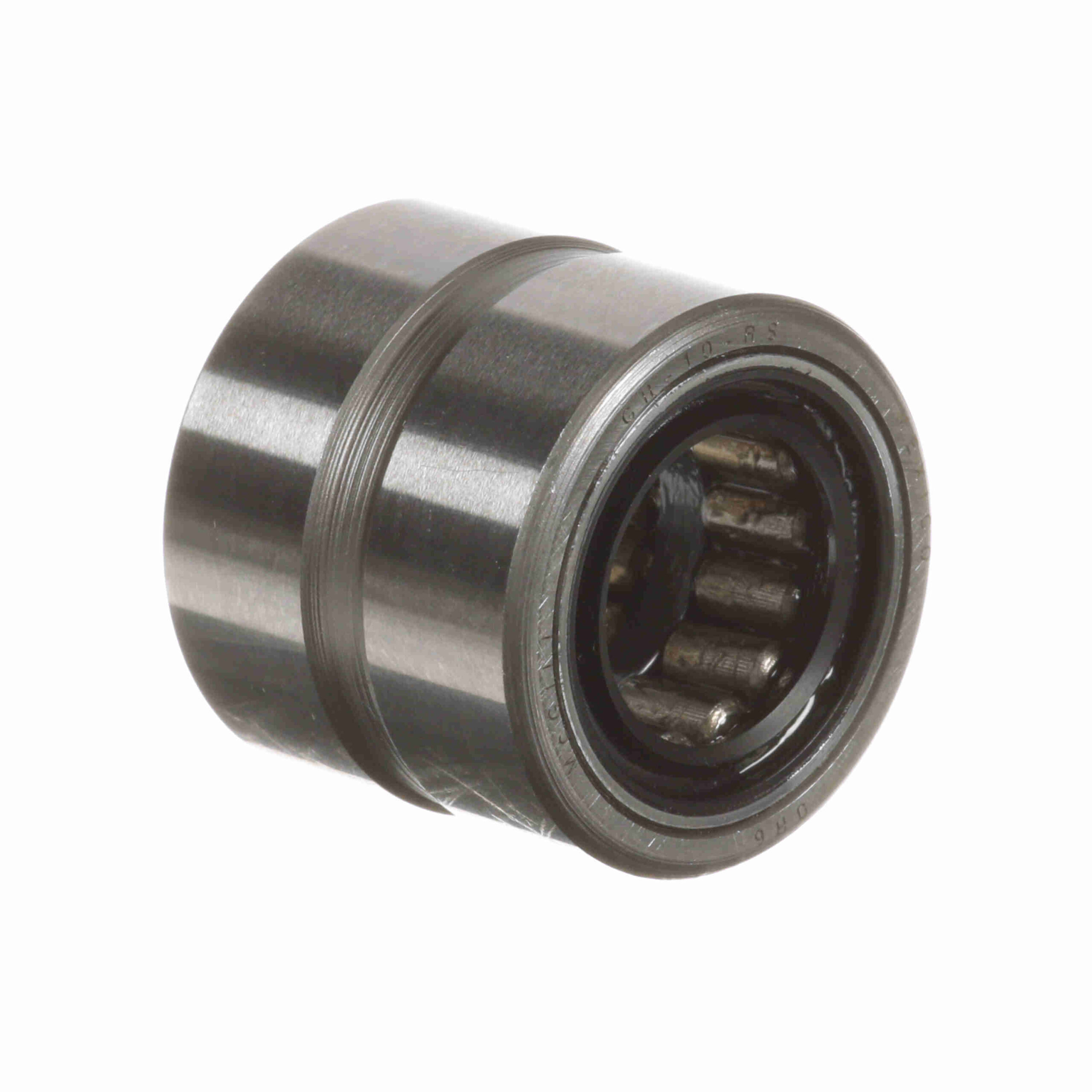

McGill Guiderol® Radial Radial Needle Roller Bearing (no inner) – Sealed – GR 10 RS
$78.01
Out of stock
Out of stock
| Series: | Standard | Includes Inner Ring: | No |
|---|---|---|---|
| Material: | 52100 Bearing Steel | Cage Material: | No retainer |
| Seal Type: | Rubber Lip | Number of Rows: | 1 |
| Radial Clearance: | Normal | Misalignment: | No |
| Bore Type: | Straight | Rolling Element: | Needle Roller |
| Static Load Rating (lb): | 6, 400 lb | Speed [Max] Grease (RPM): | 3, 050 rpm |
| Full Complement/Caged: | Full Complement | Sealed: | Sealed - One Side |
| Duplexing: | No | Platform: | Guiderol Bearing |
| Dynamic Load Rating (lb): | 3, 400 lb | Speed [Max] Oil (RPM): | 6, 100 rpm |
| Lubrication Hole Type: | Lubrication groove and hole | Flanges: | No flange |
| Precision Rating: | RBEC-1 | Related Inner Ring: | MI 6 |
| Separable: | Nonseparable | Component Type: | Outer race only |
| Enclosure: | Sealed One Side | Retainer: | No |
| Operating Temperature Range (F): | -20 to 250 °F °F | UPC: | 726166061258 |
| Weight: | 0.58 LB | Packaged Length: | 1.8 Inches |
| Packaged Width: | 1.4 Inches | Packaged Height: | 2.2 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
