- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
G 1

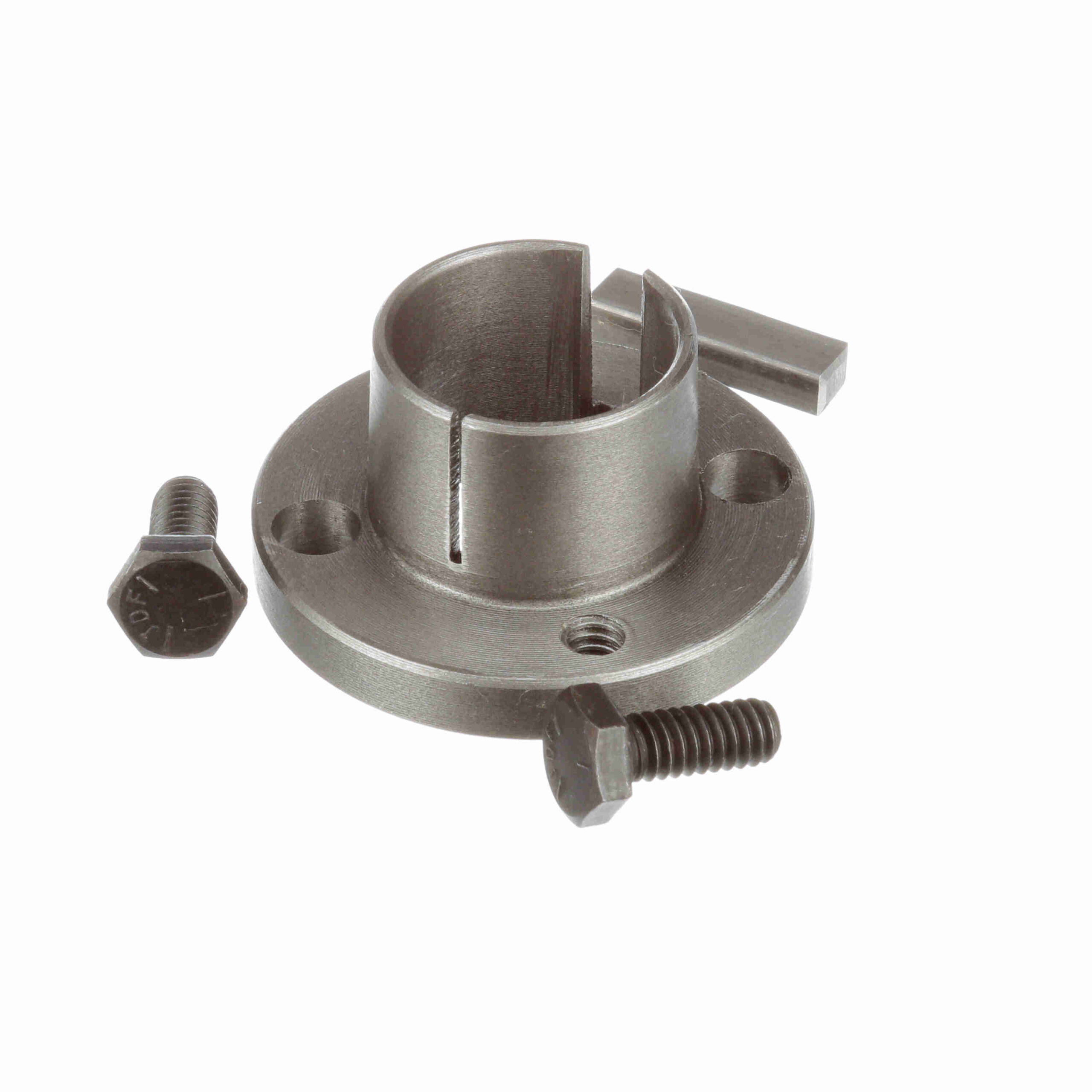

Browning Split Taper Bushing – Inch Bore Type – G 1
$22.97
Out of stock
Out of stock
| Bushing Type: | G | Material: | Sintered Steel or Ductile Iron |
|---|---|---|---|
| Total Length (in): | 1 in | Outside Diameter (in): | 2 in |
| Product Type: | Split Taper Bushing | Cap Screws (Size): | 1/4 x 5/8 |
| Length Through Bore (in): | 1 in | Model Name: | G_Bushing_Master |
| Bore Size (in): | 1 in | Keyseat: | 1/4 x 1/8 |
| Compatible Bore Size [Max] (in): | 1 in | Wrench Torque (in-lb): | 95 |
| Cap Screws (No.): | 2 | Bore Type: | Inch |
| Screw Length: | 0.625 | Barrel Diameter (Small End): | 1.133 |
| Flange Thickness: | 0.25 | Mounting Type: | Conventional |
| Thread Size: | 1/4-20 | Flange Type: | Solid Flange |
| Includes: | Cap Screws & Spcl Key | Bolt Circle Diameter (in): | 1.5625 |
| Barrel Diameter (Large End): | 1.172 | UPC: | 662289258901 |
| Weight: | 0.27 LB | Packaged Length: | 2.7 Inches |
| Packaged Width: | 2.7 Inches | Packaged Height: | 1.4 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
