- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
F 2 1/8

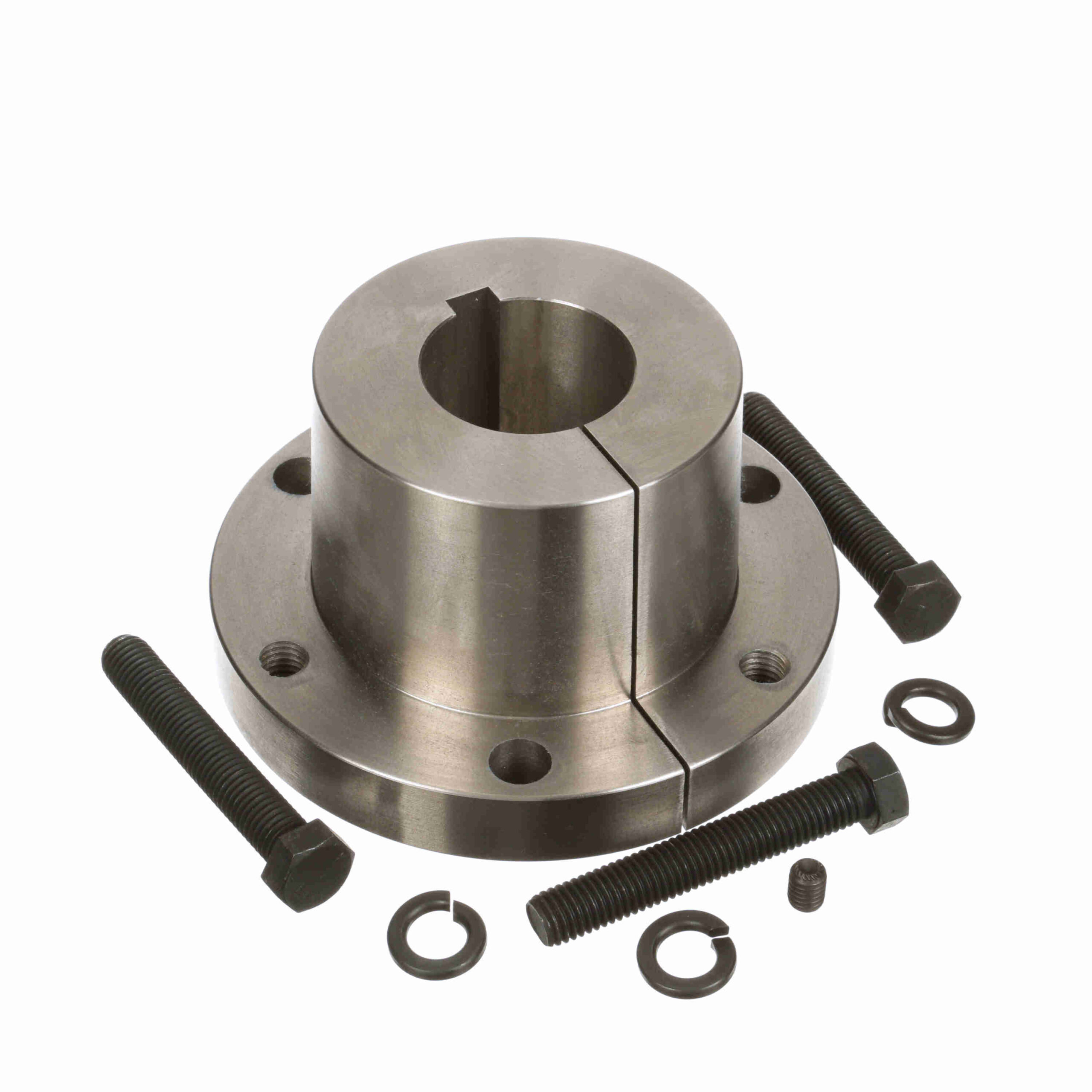

Browning Q-D Bushing – Inch Bore Type – F 2 1/8
$803.70
Out of stock
Out of stock
| Wrench Torque (ft.-lbs.): | 75 | Bushing Type: | F |
|---|---|---|---|
| Mounting Type: | Conventional | Keyway: | 1/2 x 1/4 |
| Compatible Bore Size [Max] (in): | 2.125 in | Torque Capacity (in-lb): | 30, 000 |
| Cap Screws (No.): | 3 | Product Type: | Q-D Bushing |
| Total Length (in): | 3.68 in | Cap Screws (Bolt Circle): | 5.625 |
| Cap Screws (Size): | 9/16-12 x 3 5/8 | Bore Type: | Inch |
| Model Name: | QD-F_Bushing_Master | Outside Diameter (in): | 6.625 in |
| Length Through Bore (in): | 3.68 in | Bore Size (in): | 2.125 in |
| Flange Thickness: | 0.9375 in | Barrel Diameter: | 4.375 in |
| Barrel Length: | 2.7425 in | Material: | Gray Iron - G3020 |
| UPC: | 662289390113 | Weight: | 16.62 LB |
| Packaged Length: | 7.19 Inches | Packaged Width: | 7.19 Inches |
| Packaged Height: | 4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
