- ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway
- USDA H1 complaint food grade grease
ERX-PN20T

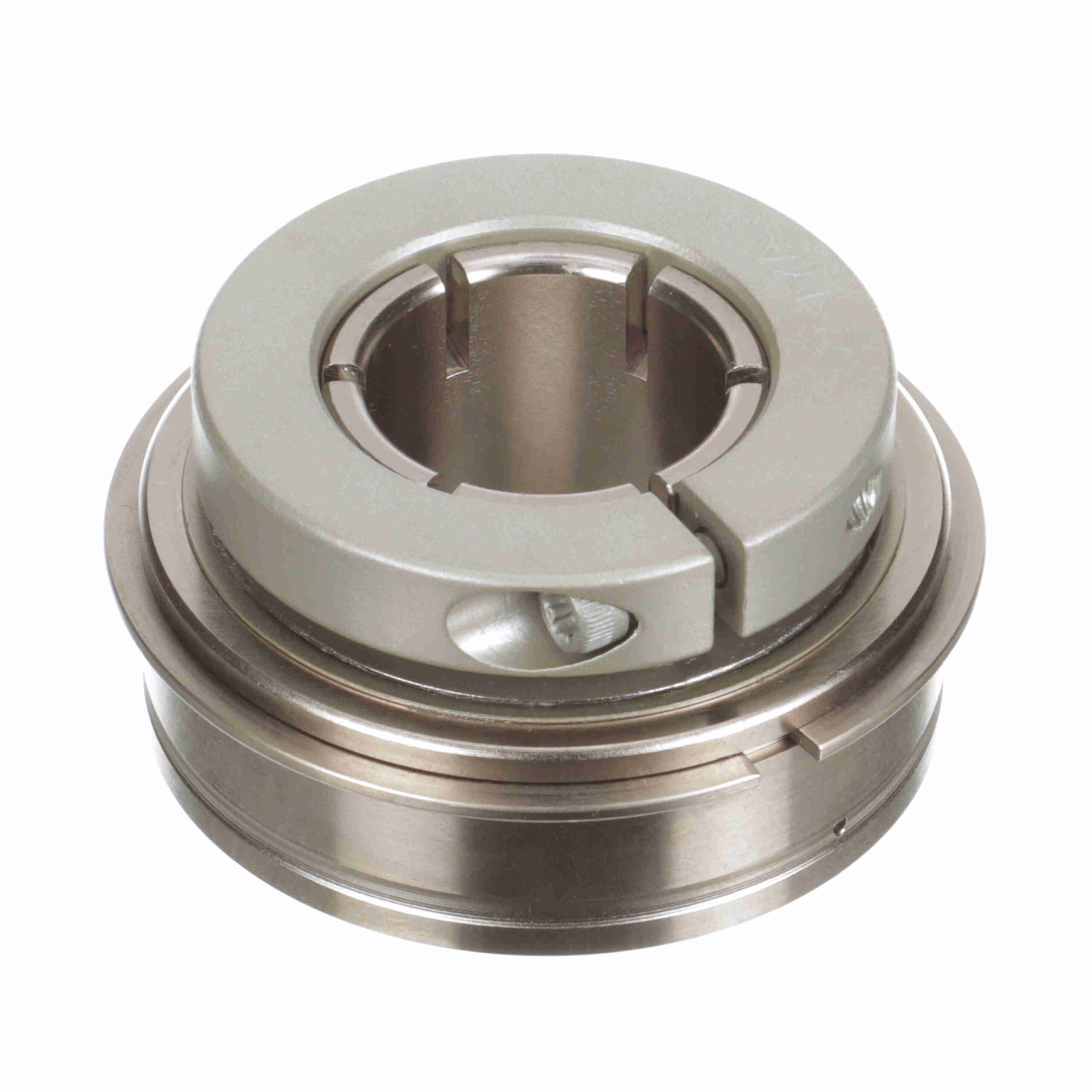

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – ERX-PN20T
$338.74
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Set Screw Thread: | 5/16-24 UNF X .313 |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Maximum Operating Temperature: | 220 °F | Radius: | 0.04 |
| Duty Series: | Standard | Measure Units: | Inch |
| Bore Shape: | Straight | Housing Type: | Insert (ER Style) |
| Insert Material: | 52100 Bearing Steel; Phosphorus Nickel Coated | Seal Type: | Triple Lip Contact Seal |
| Expansion: | No | Misalignment: | None |
| Speed (Max): | 2000 | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Locking Type: | Concentric |
| Relubricatable: | Yes | Internal Clearance: | Standard |
| Platform: | PN Gold | End Cap: | No |
| Outer Ring Land Profile: | Tapered Lands | Misalignment Type: | Static Only |
| Options: | Corrosion Resistant | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 3, 493 |
| Cage Material: | PPS | Series: | ERX-PN-T |
| Precision Rating: | ABEC 1 | Grease Fitting Thread Size: | 5/16-24 UNF X .313 |
| Outer Race Profile: | Cylindrical | Inner Race Profile: | Wide Inner Ring |
| UPC: | 662461339718 | Weight: | 1.65 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
