- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Skwezloc® concentric locking for near perfect concentricity
- Extra low drag seal cut down felt labyrinth seal and flinger
- Oil lubricated for reduced internal friction
- Nylon retainer to reduce overall drag
ERX-204TM XLO

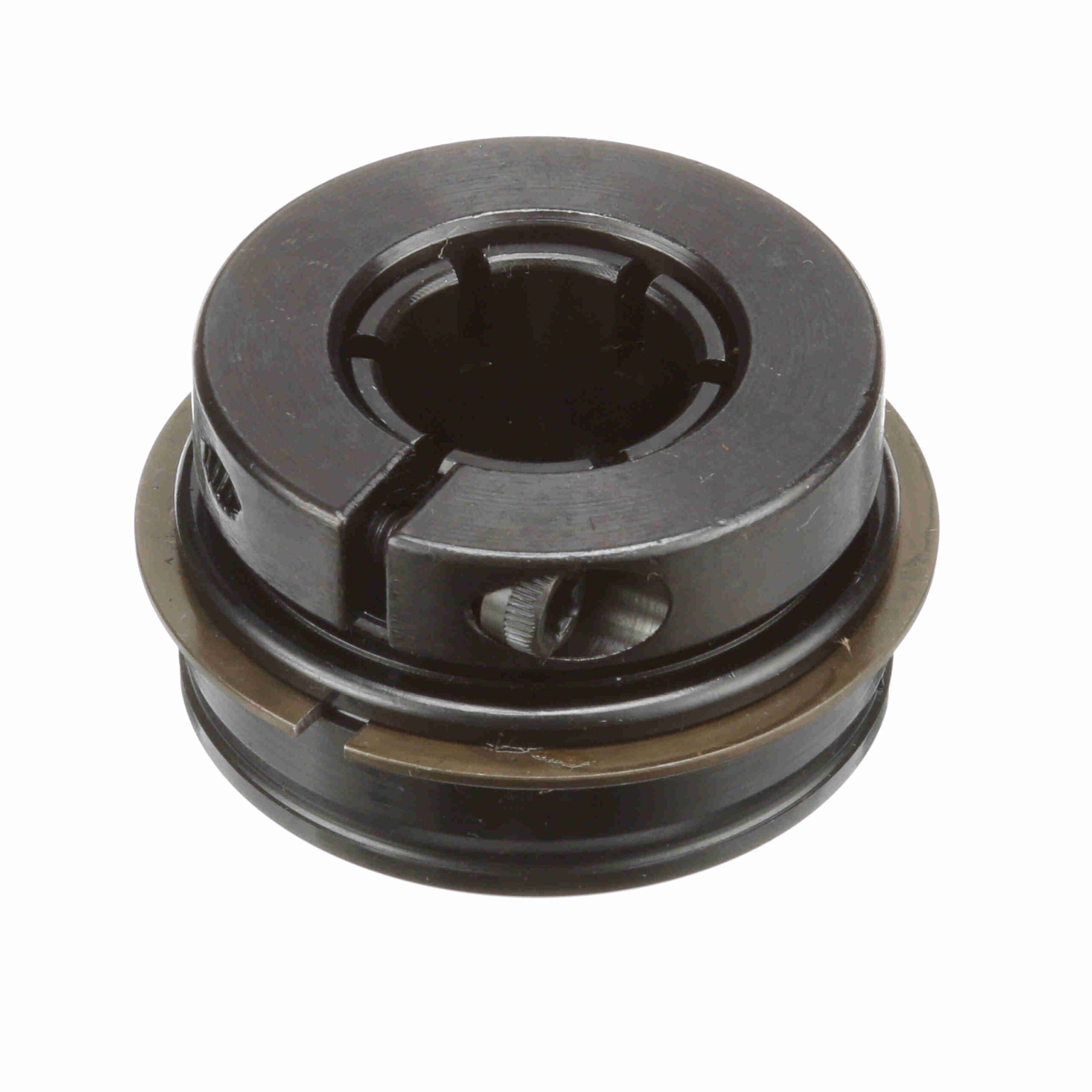

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Extra Low Drag – ERX-204TM XLO
$103.46
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | Cut Down Felt Labyrinth |
|---|---|---|---|
| Measure Units: | Metric | Maximum Operating Temperature: | 220 °F |
| Radius: | 1.02 | Rolling Element: | Ball Bearing |
| Retainer Type: | Land Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Duty Series: | Standard |
| Housing Type: | Insert (ER Style) | Misalignment: | None |
| Expansion: | No | Radial Dynamic Load Capacity (lb): | 11, 614 |
| Locking Type: | Concentric | Lubrication: | Oil Coated Only - No Factory Grease Fill |
| Speed (Max): | 2900 | Relubricatable: | Yes |
| Internal Clearance: | Standard | End Cap: | No |
| Platform: | Gold Line Ball Bearing | Outer Ring Land Profile: | Tapered Lands |
| Options: | Extra Low Drag | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 1, 444 |
| Cage Material: | Molded Nylon | Precision Rating: | ABEC 1 |
| Series: | ERX-T | Outer Race Profile: | Cylindrical |
| Inner Race Profile: | Wide Inner Ring | UPC: | 662461270097 |
| Weight: | 0.56 LB | Packaged Length: | 2.38 Inches |
| Packaged Width: | 1.44 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8482.10.5048 | Country of Origin: | Mexico |
