- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 4-bolt split cast iron housing

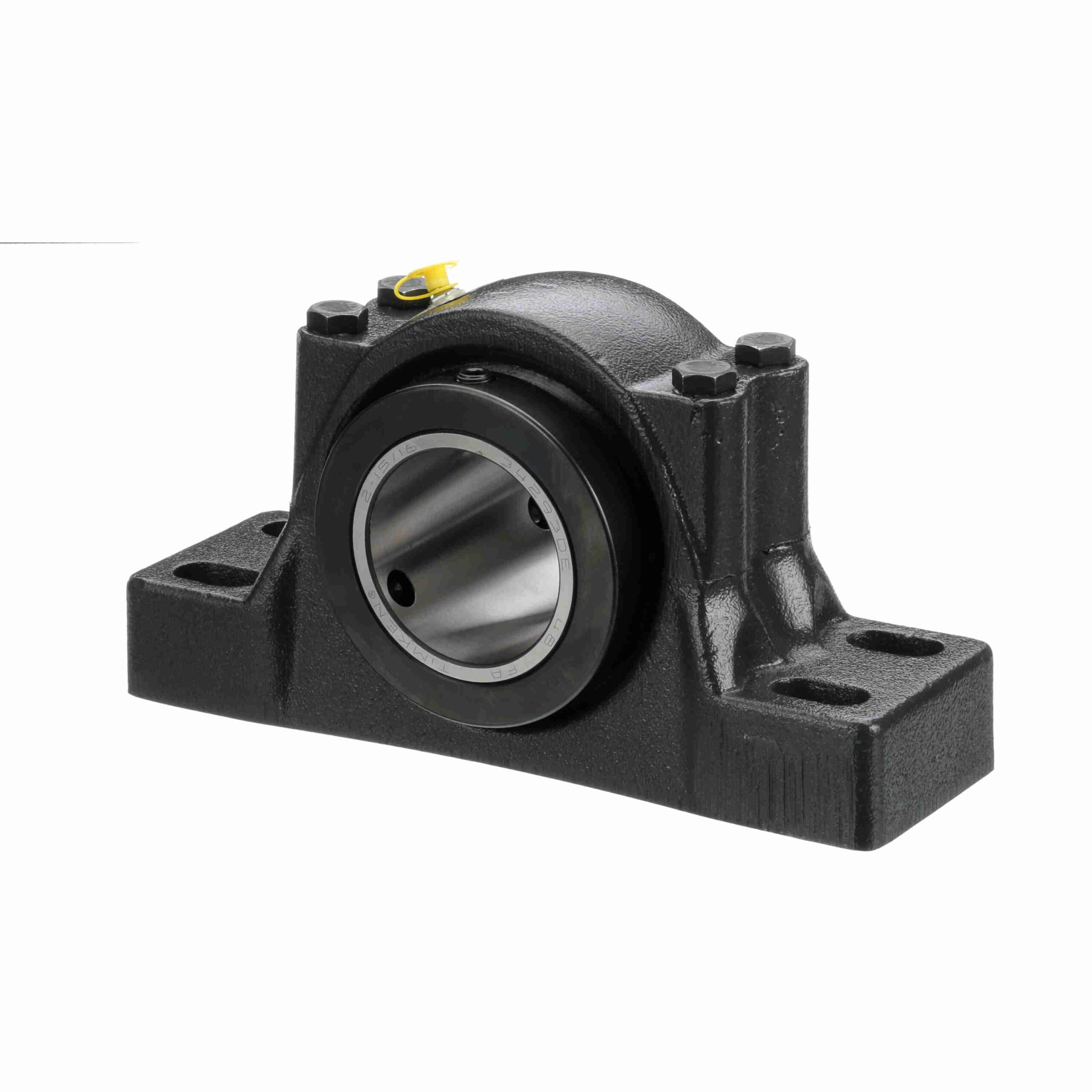

ERPBXT 315-4
Sealmaster Mounted Cast Iron Four Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – ERPBXT 315-4
$4,294.87
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel | Housing Type: | Pillow Block, Four Bolt |
|---|---|---|---|
| Expansion: | Yes | Rolling Element: | Tapered Roller |
| Measure Units: | Inch | Seal Type: | Felt Labyrinth Seal |
| Housing Base: | Solid | Housing Material: | Cast Iron |
| Speed (Max): | 1250 | Locking Type: | Double Collar Mount |
| Misalignment: | ±3.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 20, 980 lb |
| Bore Shape: | Straight | Internal Clearance: | Standard |
| Housing Construction: | Split Two Piece | Replaceable Insert: | Yes |
| Platform: | RPB Series | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Steel | Misalignment Type: | Static Only |
| Housing Color: | Gray | End Cap: | No |
| Outer Ring Land Profile: | Standard | Series: | ERPBXT |
| Grease Fitting Thread Size: | 1/8 NPT | Housing Style: | Pillow Block |
| Inner Race Heat Treat Method: | Case Carburized Inner Ring | Maximum Operating Temperature (F): | 220 °F |
| Duty/Series: | Standard | Insert Number: | ERCI-315 |
| Ability to Relubricate: | Yes | Lubrication Type: | Lithium, EP, NLGI#2 |
| UPC: | 662289000000 | Weight: | 99.30 LB |
| Packaged Length: | 18.75 Inches | Packaged Width: | 7.5 Inches |
| Packaged Height: | 11 Inches | HTC: | 8483.20.8080 |
| Country of Origin: | United States of America |
