- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Race-mounted felt-lined flinger seal
- Double-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 4-bolt split cast iron housing
ERPB 407-4

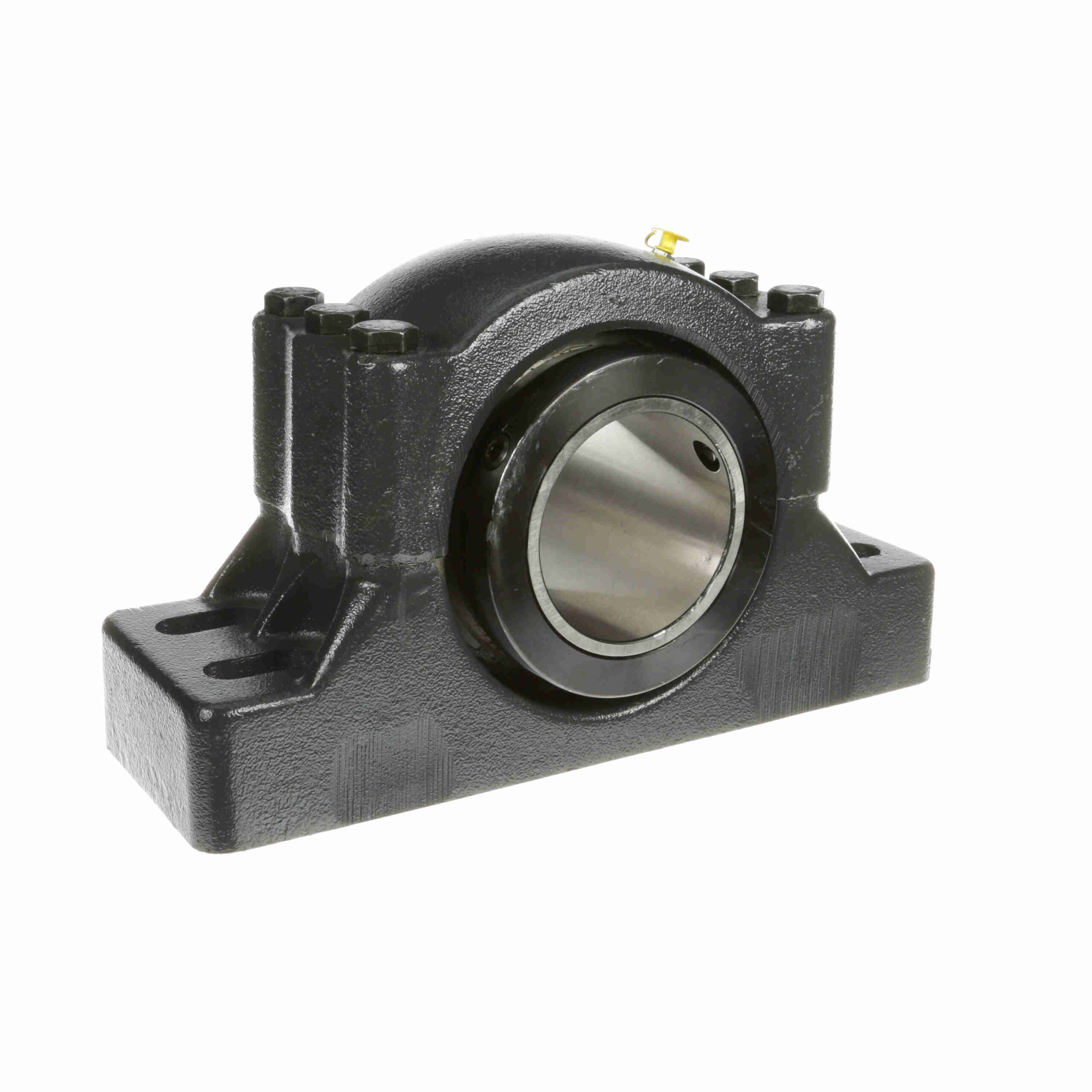

Sealmaster Mounted Cast Iron Four Bolt Pillow Block Tapered Roller – 52100 Bearing Steel – Double Collar Mount Lock – ERPB 407-4
$6,308.42
Out of stock
Out of stock
| Housing Type: | Pillow Block, Four Bolt | Expansion: | Yes |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Case Carburized Inner Ring | Seal Type: | Felt Labyrinth Seal |
| Measure Units: | Inch | Rolling Element: | Tapered Roller |
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 220 °F |
| Misalignment: | ±3.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 25, 750 |
| Locking Type: | Double Collar Mount | Insert No.: | ERCI-407 |
| Speed (Max): | 1250 | Bore Shape: | Straight |
| Lubrication: | Lithium; EP; NLGI#2 | Housing Construction: | Split Two Piece |
| Relubricatable: | Yes | Internal Clearance: | Standard |
| Duty Series: | Standard | Outer Ring Land Profile: | Standard |
| Platform: | RPB Series | Retainer Material: | Steel |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| Replaceable Insert: | Yes | Series: | ERPB |
| Grease Fitting Thread Size: | 1/8 NPT | UPC: | 662288481249 |
| Weight: | 110.60 LB | Packaged Length: | 16.5 Inches |
| Packaged Width: | 6.75 Inches | Packaged Height: | 9.63 Inches |
| HTC: | 8483.20.8080 | Country of Origin: | United States of America |
