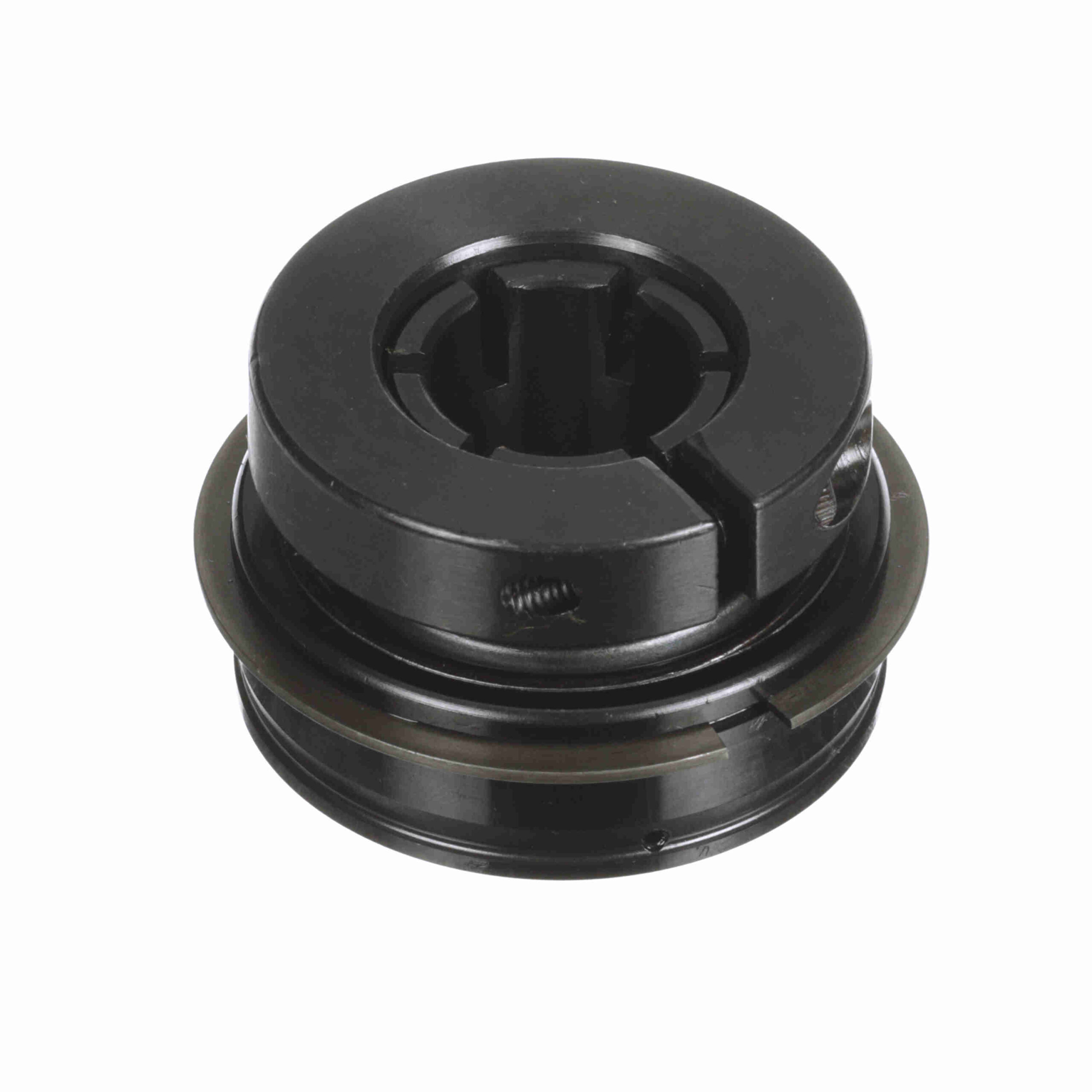

ER-12TC

ER style cylindrical OD bearing with snap and with black oxided bearing rings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Inner-Race Heat-Treat Method:	Zone-Hardened	Retainer Type:	Land Riding Retainer
Duty Series:	Standard	Insert Material:	52100 Bearing Steel; Black Oxided
Bore Shape:	Straight	Measure Units:	Inch
Rolling Element:	Ball Bearing	Radius:	0.04
Housing Type:	Insert (ER Style)	Maximum Operating Temperature:	220 °F
Seal Type:	Single Lip Contact Seal	Radial Dynamic Load Capacity (lb):	2, 611
Relubricatable:	Yes	Locking Type:	Concentric
Lubrication:	Lithium Complex NLGI 2 Grease	Misalignment:	None
Expansion:	No	Internal Clearance:	Standard
Speed (Max):	6450	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Platform:	Gold Line Ball Bearing
Outer Ring Land Profile:	Tapered Lands	Misalignment Type:	Static Only
Radial Static Load Capacity (lb):	1, 444	Series:	ER-T
Cage Material:	PPS	Precision Rating:	ABEC 1
Inner Race Profile:	Wide Inner Ring	Outer Race Profile:	Cylindrical
UPC:	662461056677	Weight:	0.58 LB
Packaged Length:	2.38 Inches	Packaged Width:	1.44 Inches
Packaged Height:	2.38 Inches	HTC:	8482.10.5048
Country of Origin:	Mexico
