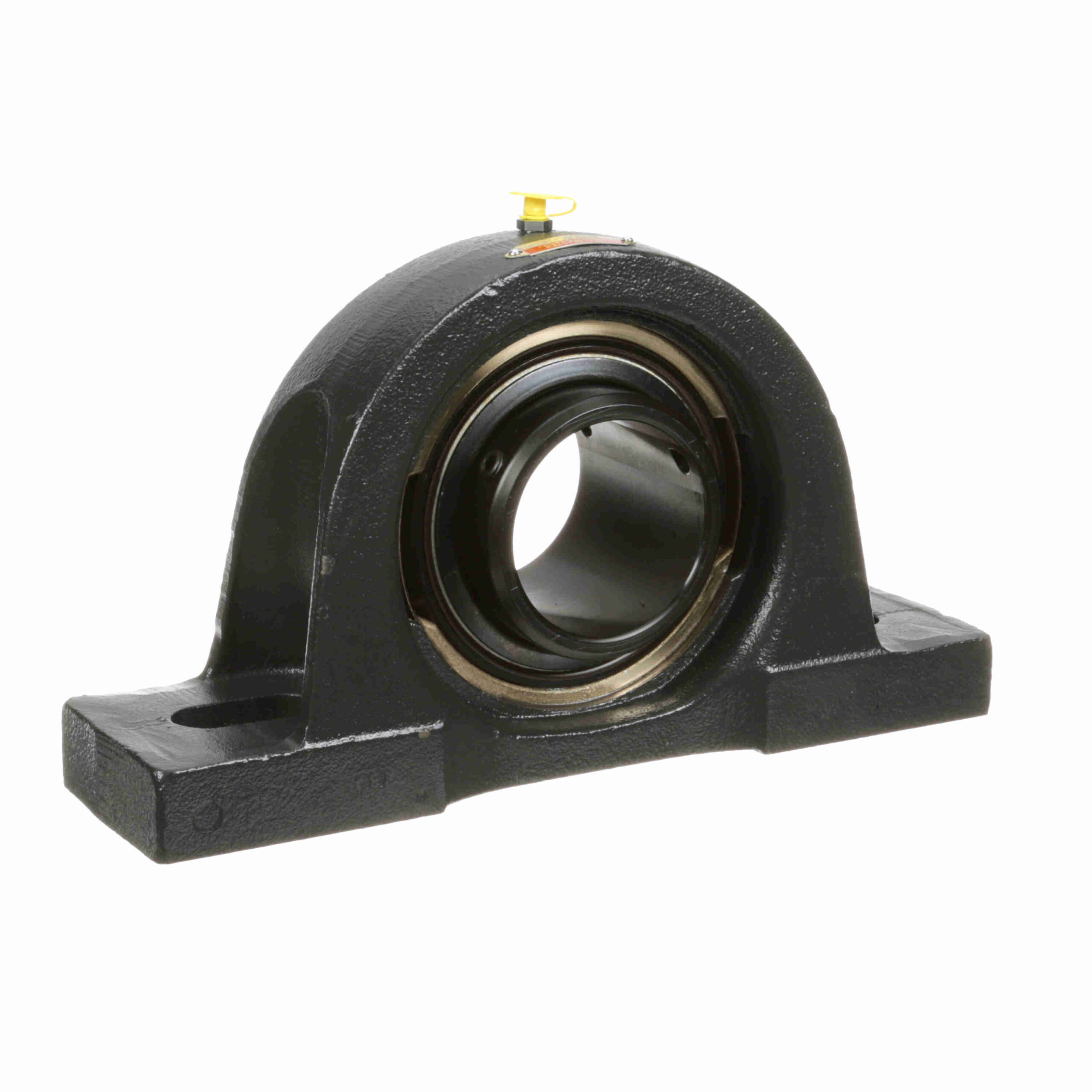

EMPD-47

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Internal Clearance:	Standard	Seal Type:	Felt Labyrinth Seal
Housing Base:	Solid	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Measure Units:	Inch
Radial Dynamic Load Capacity (lb):	17, 412 lb	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Bore Shape:	Straight
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Misalignment Type:	Static Only	End Cap:	No
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated	Radial Static Load Capacity (lb):	13, 174 lb
Locking Type:	Double Setscrew	Housing Style:	Pillow Block
Retainer Type:	Land Riding Retainer	Duty/Series:	Medium Duty
Housing Material:	Cast Iron	Housing Type:	Pillow Block, Two Bolt
Lubrication Type:	Lithium Complex NLGI 2 Grease	Maximum Speed (RPM):	3400 rpm
Fixed vs. Expansion:	Expansion	Maximum Operating Temperature (F):	220 °F
Inner Race Heat Treat Method:	Zone-Hardened	Ability to Relubricate:	Yes
Insert Number:	2-215D	UPC:	662461000000
Weight:	30.90 LB	Packaged Length:	14.25 Inches
Packaged Width:	8.06 Inches	Packaged Height:	4 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
