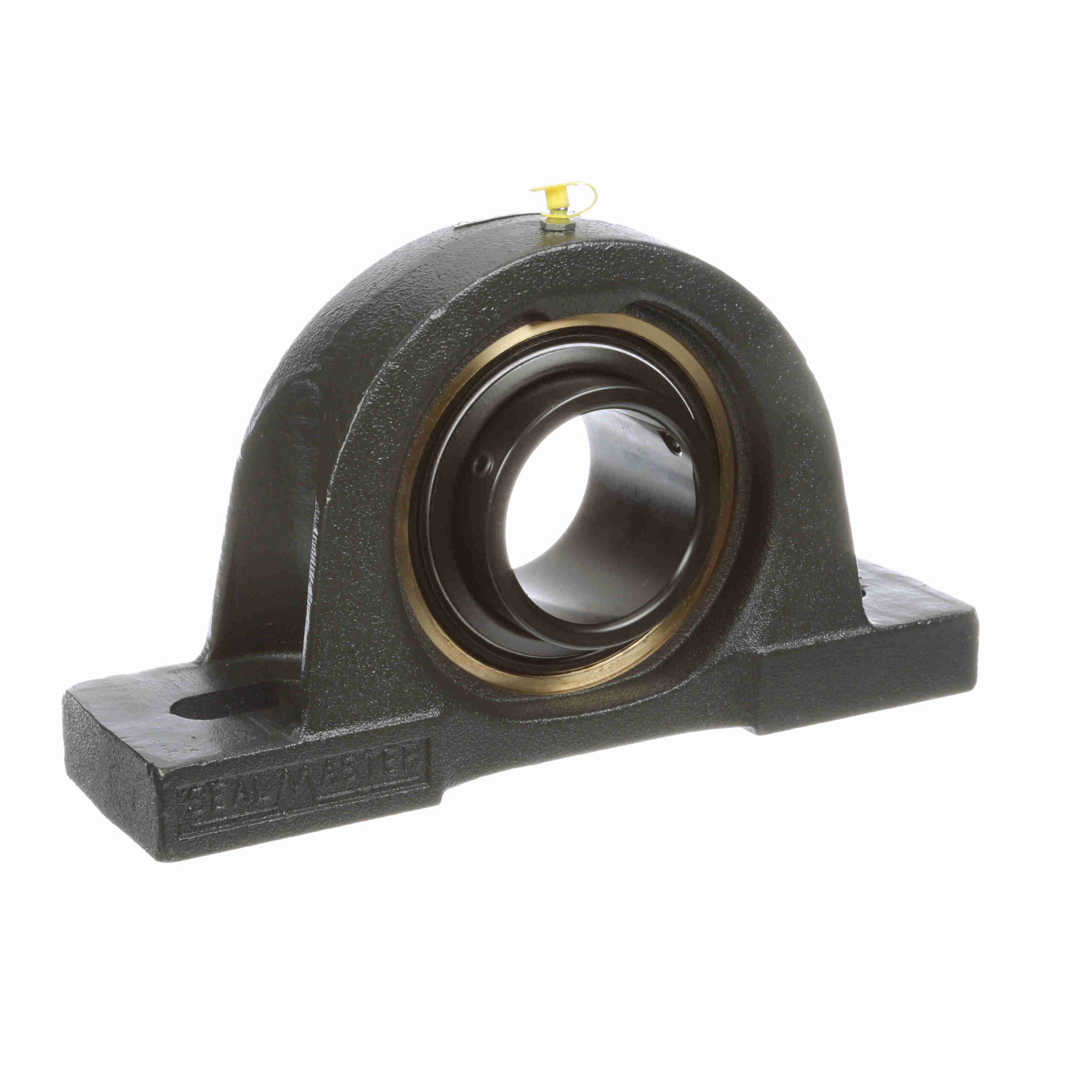

EMP-63

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Speed (Max):	1700	Seal Type:	Felt Labyrinth Seal
Insert No.:	AR-3-315	Internal Clearance:	Standard
Housing Base:	Solid	Housing Type:	Pillow Block, Two Bolt
Maximum Operating Temperature:	220 °F	Insert Material:	52100 Bearing Steel, Black Oxided
Expansion:	Yes	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Housing Material:	Cast Iron
Duty Series:	Medium Duty	Rolling Element:	Ball Bearing
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	29, 905
Misalignment:	±2.0° Misalignment - Static Only	Lubrication:	Lithium Complex NLGI 2 Grease
Housing Construction:	One Piece	Locking Type:	Setscrew
Inner-Race Heat-Treat Method:	Zone-Hardened	Relubricatable:	Yes
Misalignment Type:	Static Only	Replaceable Insert:	Yes
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Bearing Insert Coating:	Black Oxide Coated	Outer Ring Land Profile:	Standard
End Cap:	No	Radial Static Load Capacity (lb):	23, 553
UPC:	662461014257	Weight:	72.00 LB
Packaged Length:	17.88 Inches	Packaged Width:	11.63 Inches
Packaged Height:	5.75 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
