- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-19

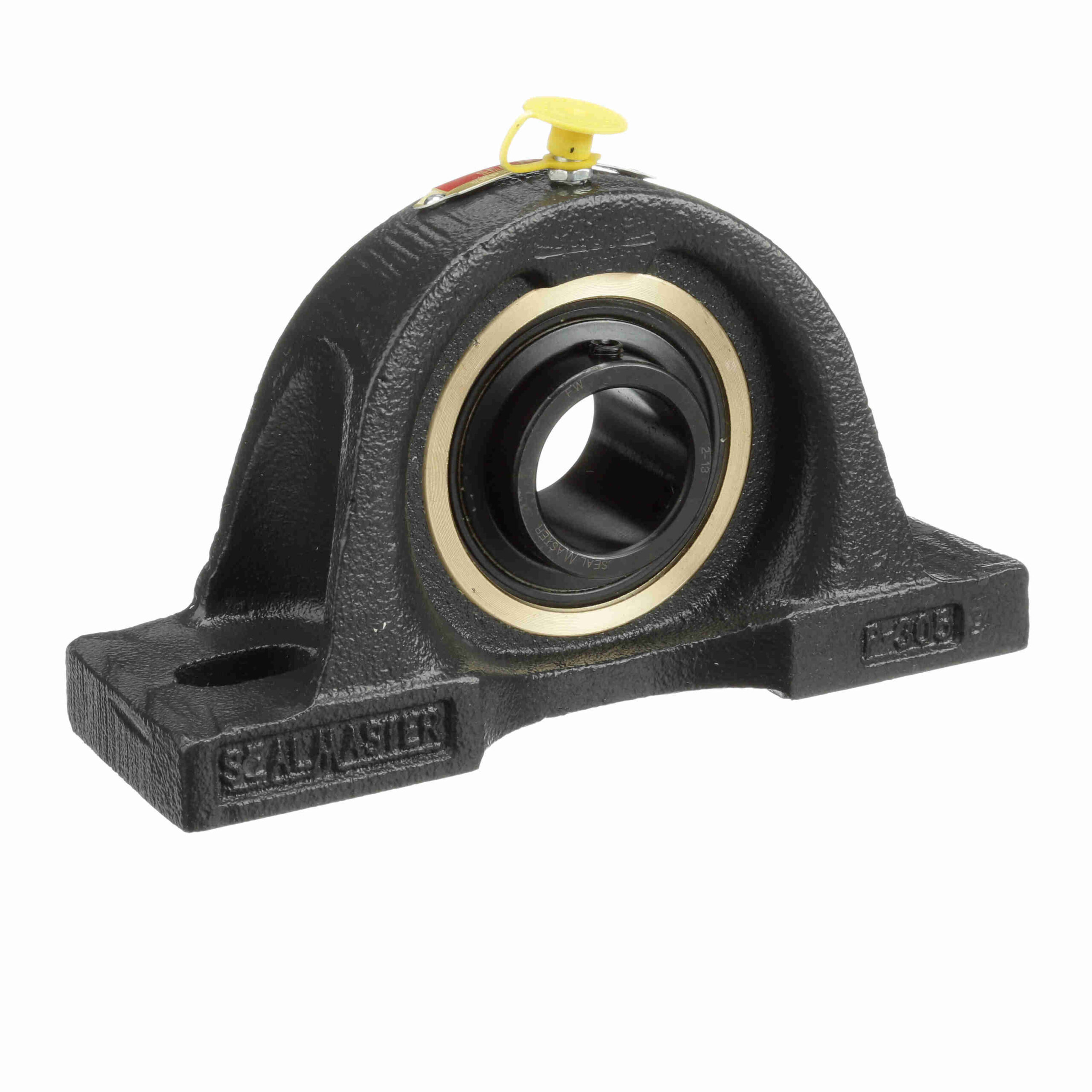

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – EMP-19
$365.34
Out of stock
Out of stock
| Insert No.: | AR-2-13 | Expansion: | Yes |
|---|---|---|---|
| Speed (Max): | 5450 | Measure Units: | Inch |
| Housing Type: | Pillow Block, Two Bolt | Internal Clearance: | Standard |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Seal Type: | Felt Labyrinth Seal | Duty Series: | Medium Duty |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Relubricatable: | Yes | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Misalignment: | ±2.0° Misalignment - Static Only |
| Platform: | Gold Line Ball Bearing | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| Housing Color: | Gray | Radial Static Load Capacity (lb): | 2, 567 |
| UPC: | 662461014035 | Weight: | 5.10 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
