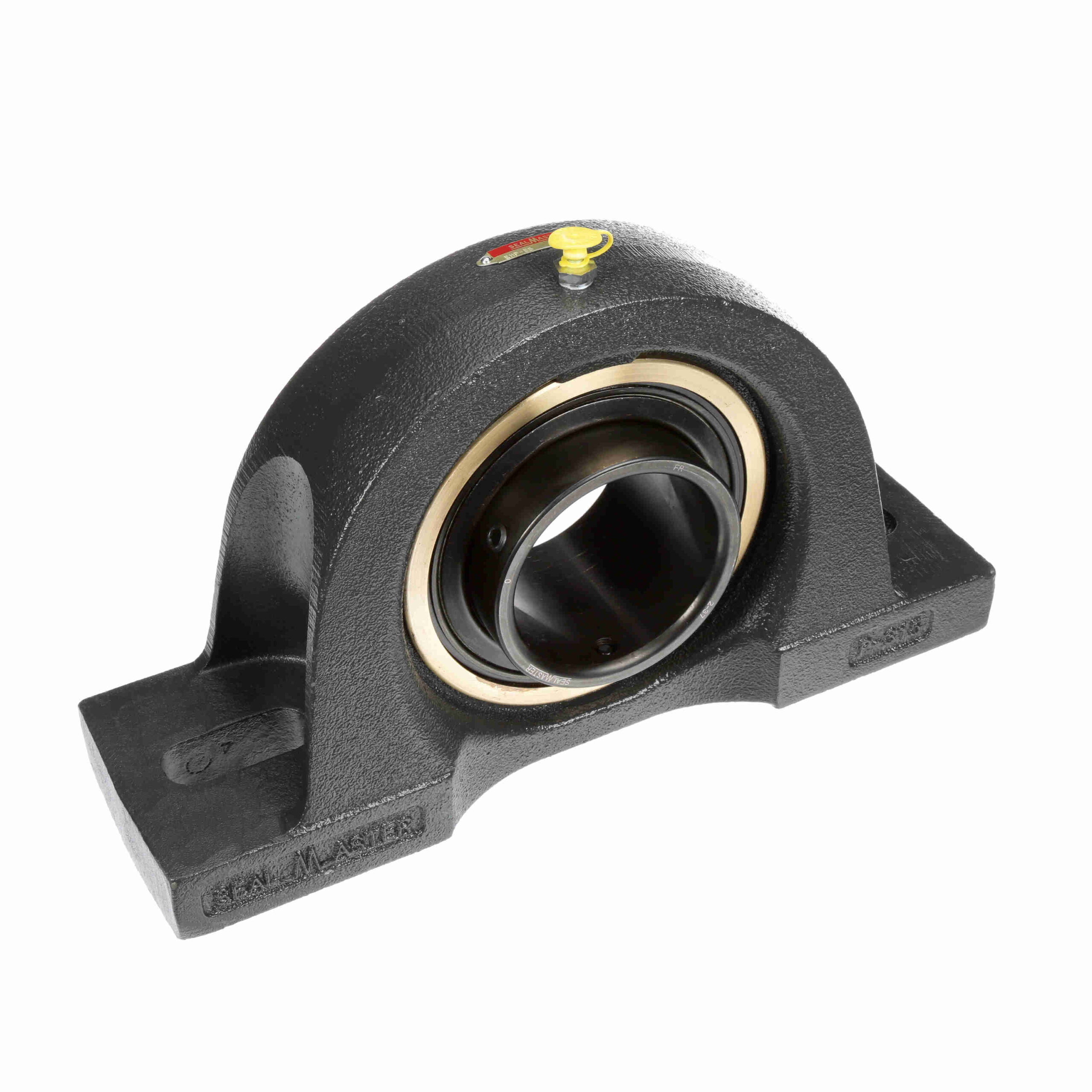

EMP-55

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry , dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Seal Type:	Felt Labyrinth Seal	Insert Material:	52100 Bearing Steel; Black Oxided
Duty Series:	Medium Duty	Maximum Operating Temperature:	220 °F
Housing Material:	Cast Iron	Housing Base:	Solid
Speed (Max):	2125	Insert No.:	AR-2-37
Internal Clearance:	Standard	Measure Units:	Inch
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block; Two Bolt
Rolling Element:	Ball Bearing	Expansion:	Yes
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	18, 681
Misalignment:	±2.0° Misalignment - Static Only	Inner-Race Heat-Treat Method:	Zone-Hardened
Relubricatable:	Yes	Housing Construction:	One Piece
Lubrication:	Lithium Complex NLGI 2 Grease	Locking Type:	Setscrew
Replaceable Insert:	Yes	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Outer Ring Land Profile:	Standard
Platform:	Gold Line Ball Bearing	Housing Color:	Gray
Misalignment Type:	Static Only	Radial Static Load Capacity (lb):	14, 496
UPC:	662461014233	Weight:	47.74 LB
Packaged Length:	17.25 Inches	Packaged Width:	9.88 Inches
Packaged Height:	4.88 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
