- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry , dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
EMP-27

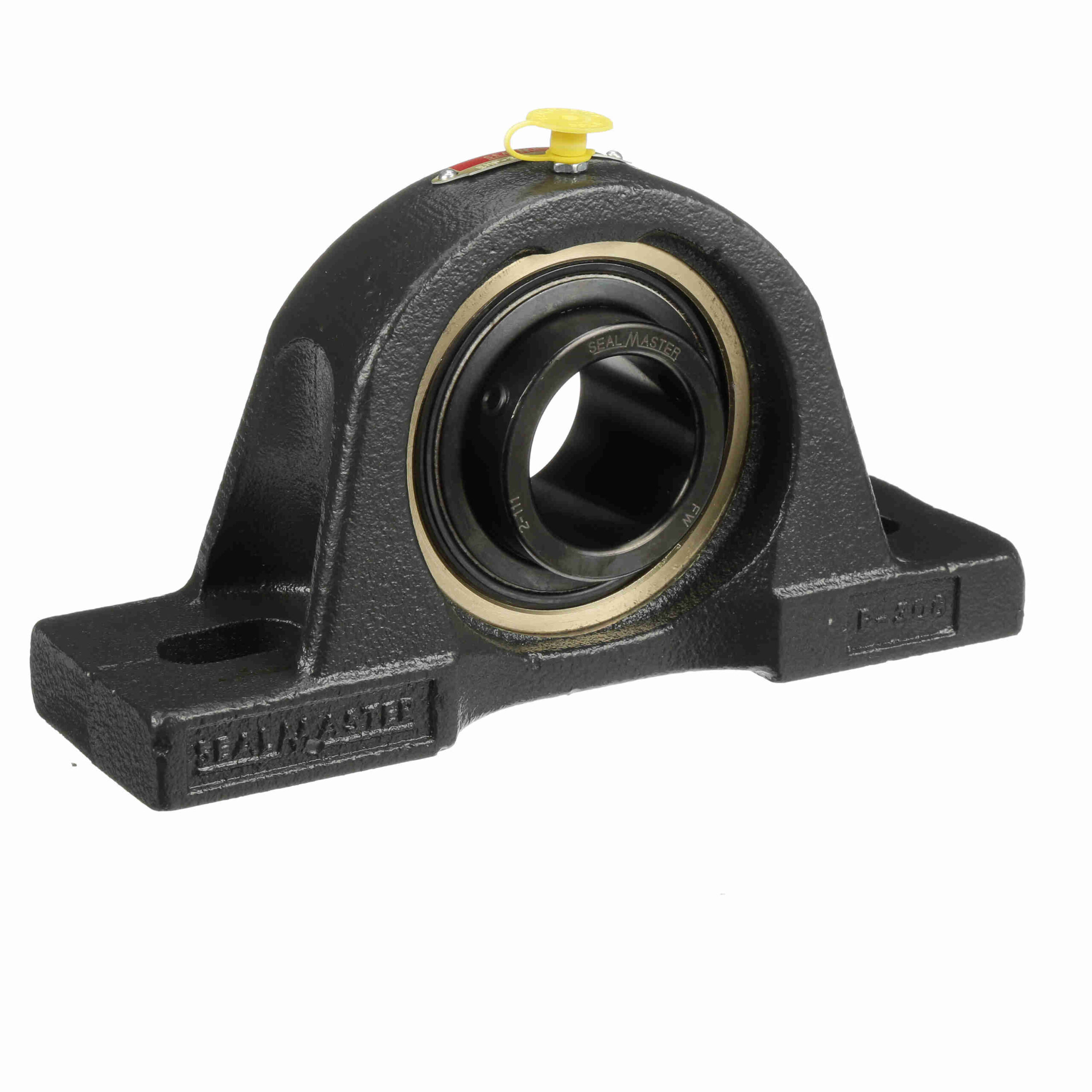

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – EMP-27
$451.81
Availability: 2 in stock
Availability: 2 in stock
| Internal Clearance: | Standard | Duty Series: | Medium Duty |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | AR-2-111 |
| Housing Material: | Cast Iron | Measure Units: | Inch |
| Expansion: | Yes | Maximum Operating Temperature: | 220 °F |
| Retainer Type: | Land Riding Retainer | Speed (Max): | 3800 |
| Housing Type: | Pillow Block; Two Bolt | Housing Base: | Solid |
| Seal Type: | Felt Labyrinth Seal | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Construction: | One Piece |
| Relubricatable: | Yes | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | End Cap: | No |
| UPC: | 662461014097 | Weight: | 9.16 LB |
| Packaged Length: | 8.88 Inches | Packaged Width: | 5.94 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
