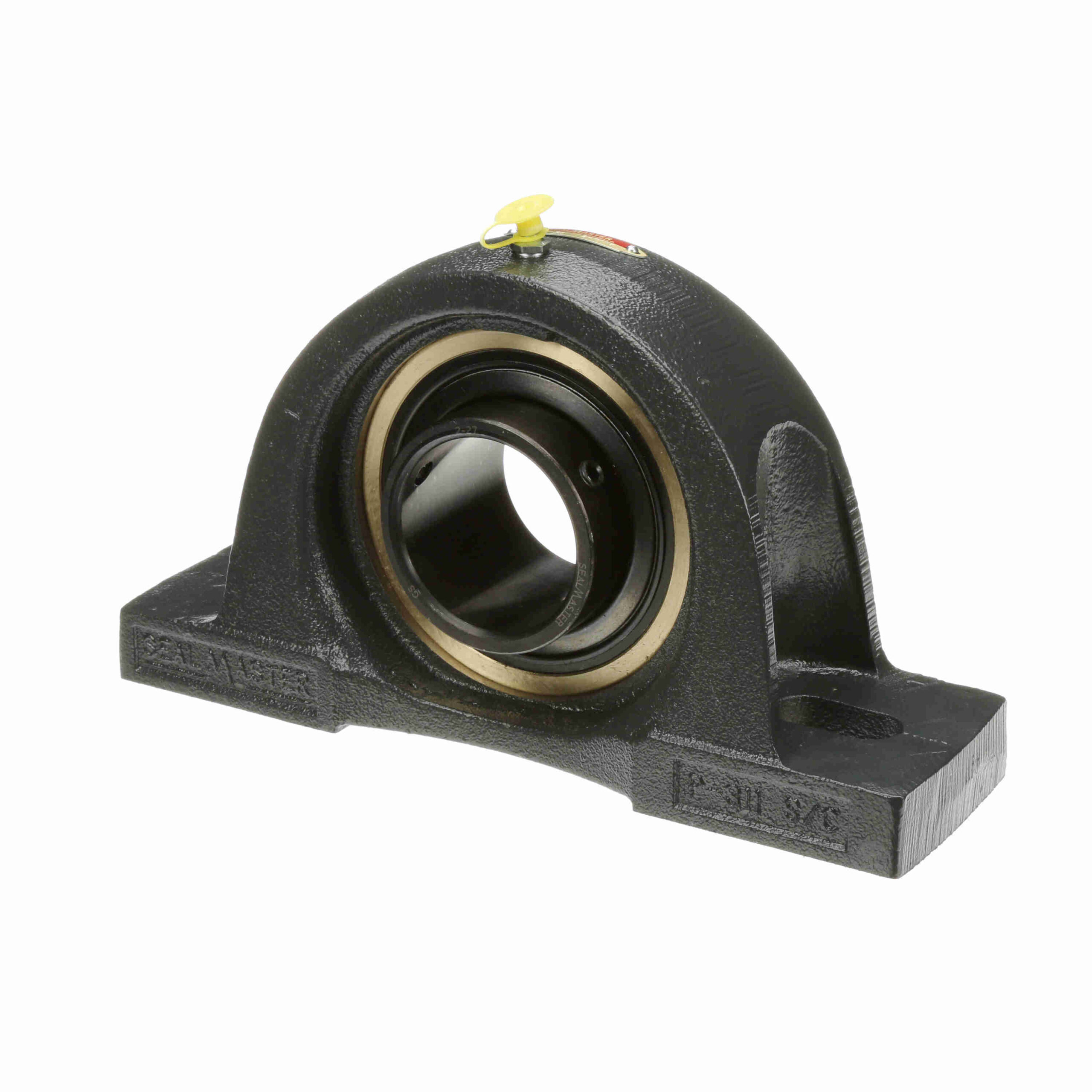

EMP-39 HT

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
High temperature felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Housing Base:	Solid	Insert Material:	52100 Bearing Steel, Black Oxided
Rolling Element:	Ball Bearing	Seal Type:	High Temp Labyrinth
Internal Clearance:	Increased	Measure Units:	Inch
Misalignment:	±2.0° Misalignment - Static Only	Bore Shape:	Straight
Housing Construction:	One Piece	Misalignment Type:	Static Only
Options:	High Temperature	Replaceable Insert:	Yes
Outer Ring Land Profile:	Standard	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Platform:	Gold Line Ball Bearing
Housing Color:	Gray	Fixed vs. Expansion:	Expansion
Locking Type:	Setscrew	Housing Style:	Pillow Block
Housing Type:	Pillow Block, Two Bolt	Lubrication Type:	Synthetic NLGI 2 High Temperature Grease
Housing Material:	Cast Iron	Duty/Series:	Medium Duty
Maximum Speed (RPM):	1250 rpm	Retainer Type:	Land Riding Retainer
Ability to Relubricate:	Yes	Insert Number:	AR-2-27 HT
Inner Race Heat Treat Method:	Zone-Hardened	Maximum Operating Temperature (F):	400 °F
Operating Temperature Range (F):	Max. +400°F °F	UPC:	662461000000
Weight:	20.15 LB	Packaged Length:	12.38 Inches
Packaged Width:	7.13 Inches	Packaged Height:	3.56 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
