- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Looser than standard housing fit for ease of alignment on lightweight frames
- Air Handling noise check for quiet operation
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

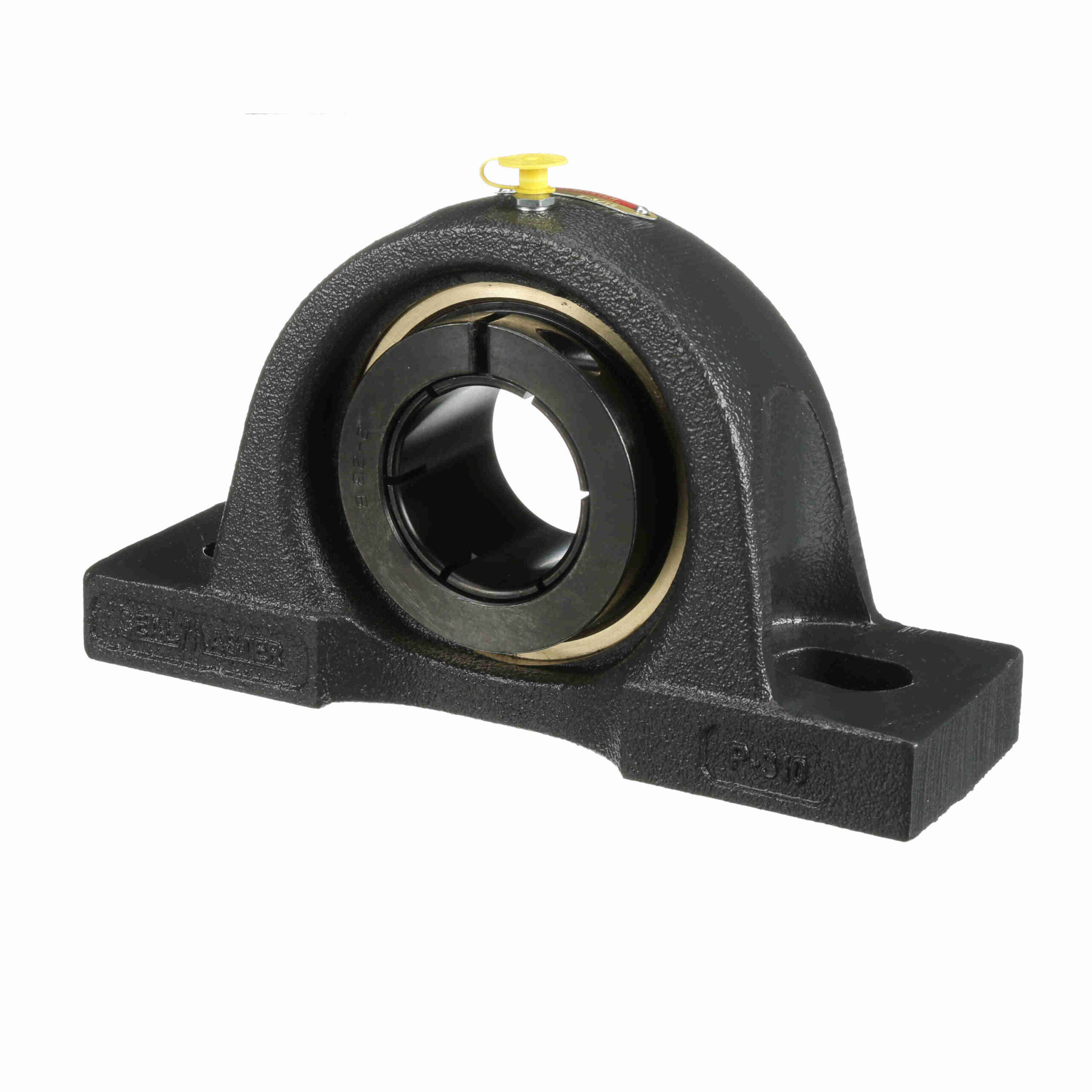

EMP-31T HTA
Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – High Temperature & Air Handling Housing Fit, Noise Tested – EMP-31T HTA
$1,192.02
Out of stock
Out of stock
| Housing Base: | Solid | Seal Type: | High Temp Labyrinth |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Internal Clearance: | Increased |
| Radial Dynamic Load Capacity (lb): | 9, 752 lb | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Housing Color: | Gray | End Cap: | No |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Platform: | Air Handling |
| Options: | High Temperature and Air Handling Housing Fit, Noise Tested | Bearing Insert Coating: | Black Oxide Coated |
| Radial Static Load Capacity (lb): | 6, 601 lb | Duty/Series: | Medium Duty |
| Housing Material: | Cast Iron | Housing Style: | Pillow Block |
| Lubrication Type: | Synthetic NLGI 2 High Temperature Grease | Fixed vs. Expansion: | Expansion |
| Locking Type: | Concentric | Maximum Speed (RPM): | 1550 rpm |
| Housing Type: | Pillow Block, Two Bolt | Retainer Type: | Land Riding Retainer |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 400 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Operating Temperature Range (F): | Max. +400°F °F |
| Insert Number: | AR-2-115T HT | UPC: | 662461000000 |
| Weight: | 12.20 LB | Packaged Length: | 9.68 Inches |
| Packaged Width: | 5.69 Inches | Packaged Height: | 3.19 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
