- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-23C

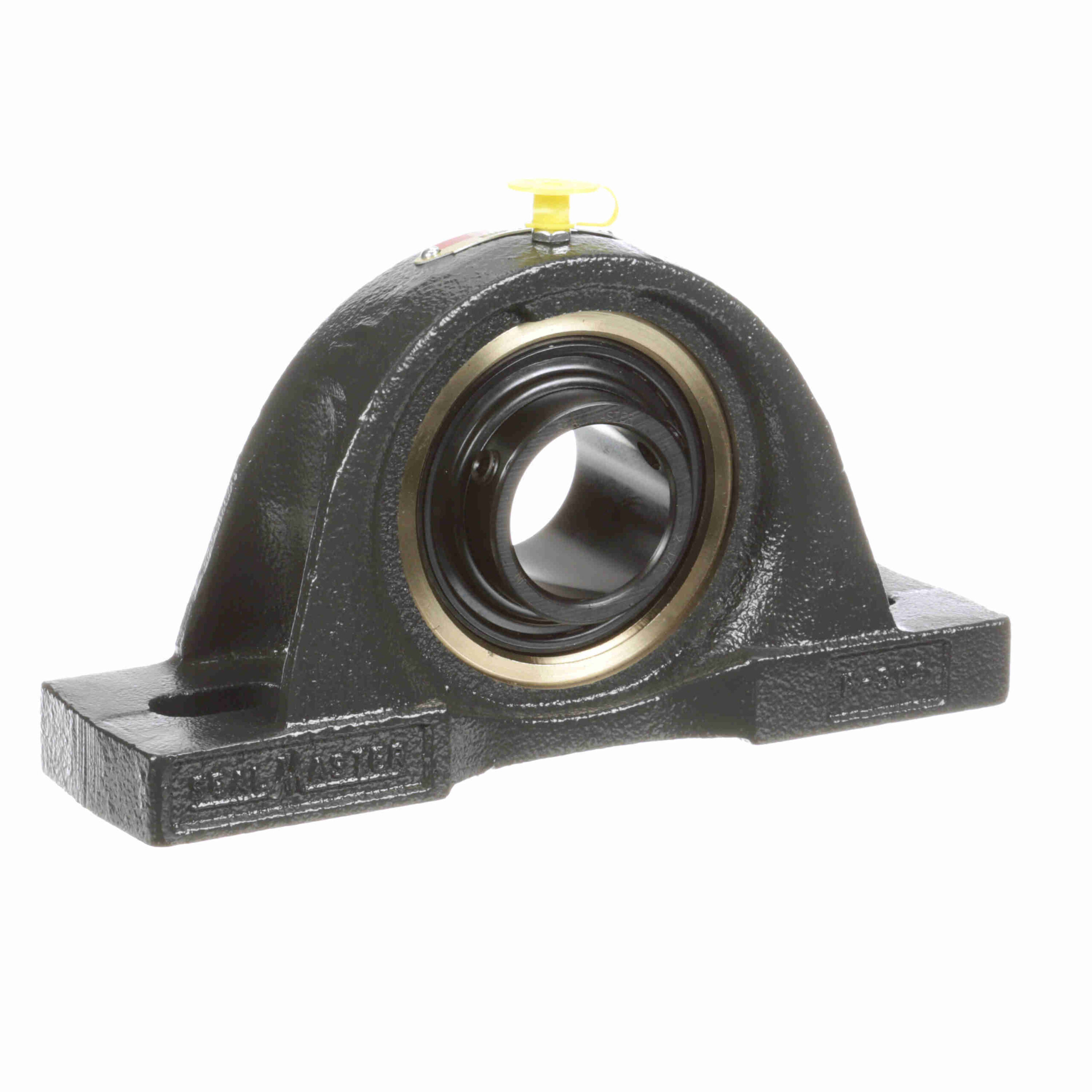

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – EMP-23C
$490.74
Out of stock
Out of stock
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 lb |
| Housing Construction: | One Piece | Misalignment: | ±2.0° Misalignment - Static Only |
| End Cap: | No | Housing Color: | Gray |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Radial Static Load Capacity (lb): | 3, 493 lb |
| Maximum Speed (RPM): | 4650 rpm | Locking Type: | Setscrew |
| Housing Style: | Pillow Block | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Duty/Series: | Medium Duty | Housing Type: | Pillow Block, Two Bolt |
| Housing Material: | Cast Iron | Fixed vs. Expansion: | Expansion |
| Retainer Type: | Land Riding Retainer | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | AR-2-17C |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 6.60 LB | Packaged Length: | 9 Inches |
| Packaged Width: | 5.19 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
