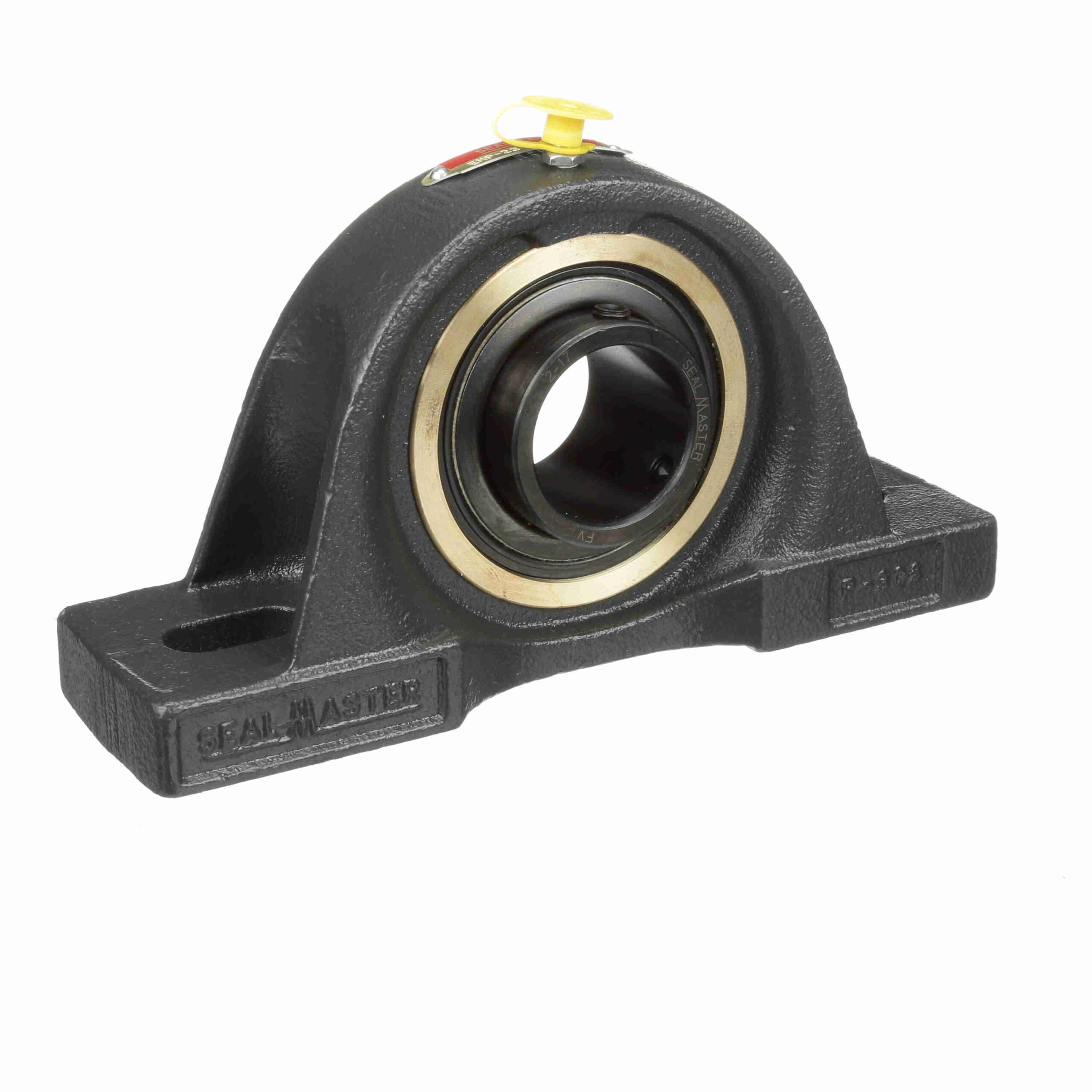

EMP-23

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry , dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation

Insert No.:	AR-2-17	Duty Series:	Medium Duty
Speed (Max):	4650	Measure Units:	Inch
Housing Material:	Cast Iron	Expansion:	Yes
Internal Clearance:	Standard	Rolling Element:	Ball Bearing
Insert Material:	52100 Bearing Steel; Black Oxided	Seal Type:	Felt Labyrinth Seal
Housing Type:	Pillow Block; Two Bolt	Maximum Operating Temperature:	220 °F
Housing Base:	Solid	Retainer Type:	Land Riding Retainer
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Inner-Race Heat-Treat Method:	Zone-Hardened	Housing Construction:	One Piece
Relubricatable:	Yes	Locking Type:	Setscrew
Lubrication:	Lithium Complex NLGI 2 Grease	Replaceable Insert:	Yes
Platform:	Gold Line Ball Bearing	Misalignment Type:	Static Only
End Cap:	No	Outer Ring Land Profile:	Standard
Housing Color:	Gray	Bearing Insert Coating:	Black Oxide Coated
UPC:	662461014066	Weight:	6.37 LB
Packaged Length:	9 Inches	Packaged Width:	5.19 Inches
Packaged Height:	2.38 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
