- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 55 MM

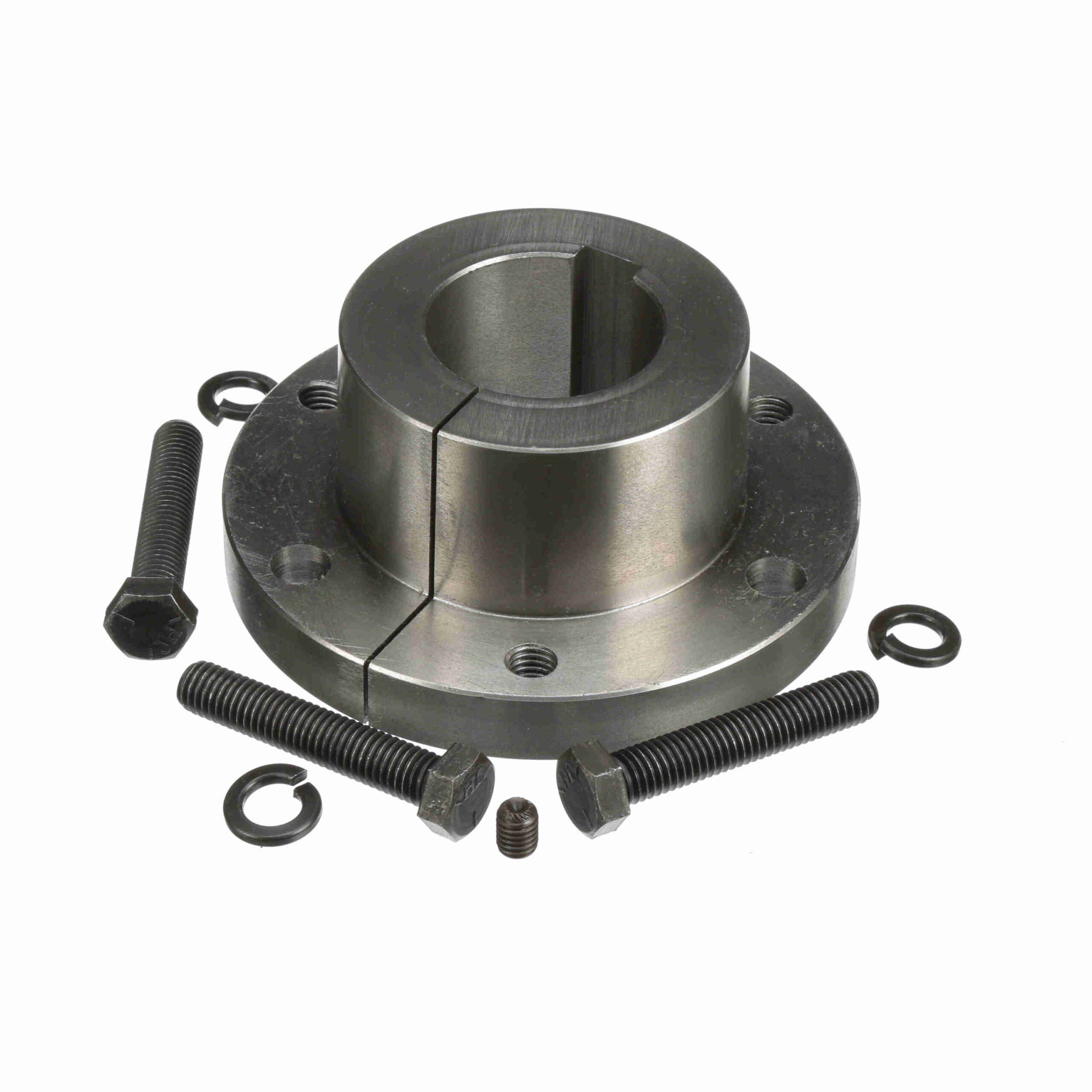

Browning Q-D Bushing – Metric Bore Type – E 55 MM
$529.94
Out of stock
Out of stock
| Compatible Bore Size [Max] (mm): | 55 mm | Total Length (in): | 2.64 in |
|---|---|---|---|
| Length Through Bore (mm): | 67.056 mm | Product Type: | Q-D Bushing |
| Torque Capacity (in-lb): | 20, 000 | Cap Screws (No.): | 3 |
| Bore Type: | Metric | Outside Diameter (mm): | 152.4 mm |
| Bushing Type: | E | Cap Screws (Bolt Circle): | 5 |
| Total Length (mm): | 67.056 mm | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Mounting Type: | Conventional | Wrench Torque (ft.-lbs.): | 60 |
| Outside Diameter (in): | 6 in | Keyway: | 16mm x 5mm |
| Bore Size (mm): | 55 mm | Barrel Length: | 1.89 in |
| Material: | Ductile Iron-Grade 65-45-60 | Flange Thickness: | 0.75 in |
| Barrel Diameter: | 3.834 in | UPC: | 662289615346 |
| Weight: | 8.72 LB | Packaged Length: | 6.4 Inches |
| Packaged Width: | 6.6 Inches | Packaged Height: | 3.3 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
