- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 2 9/16

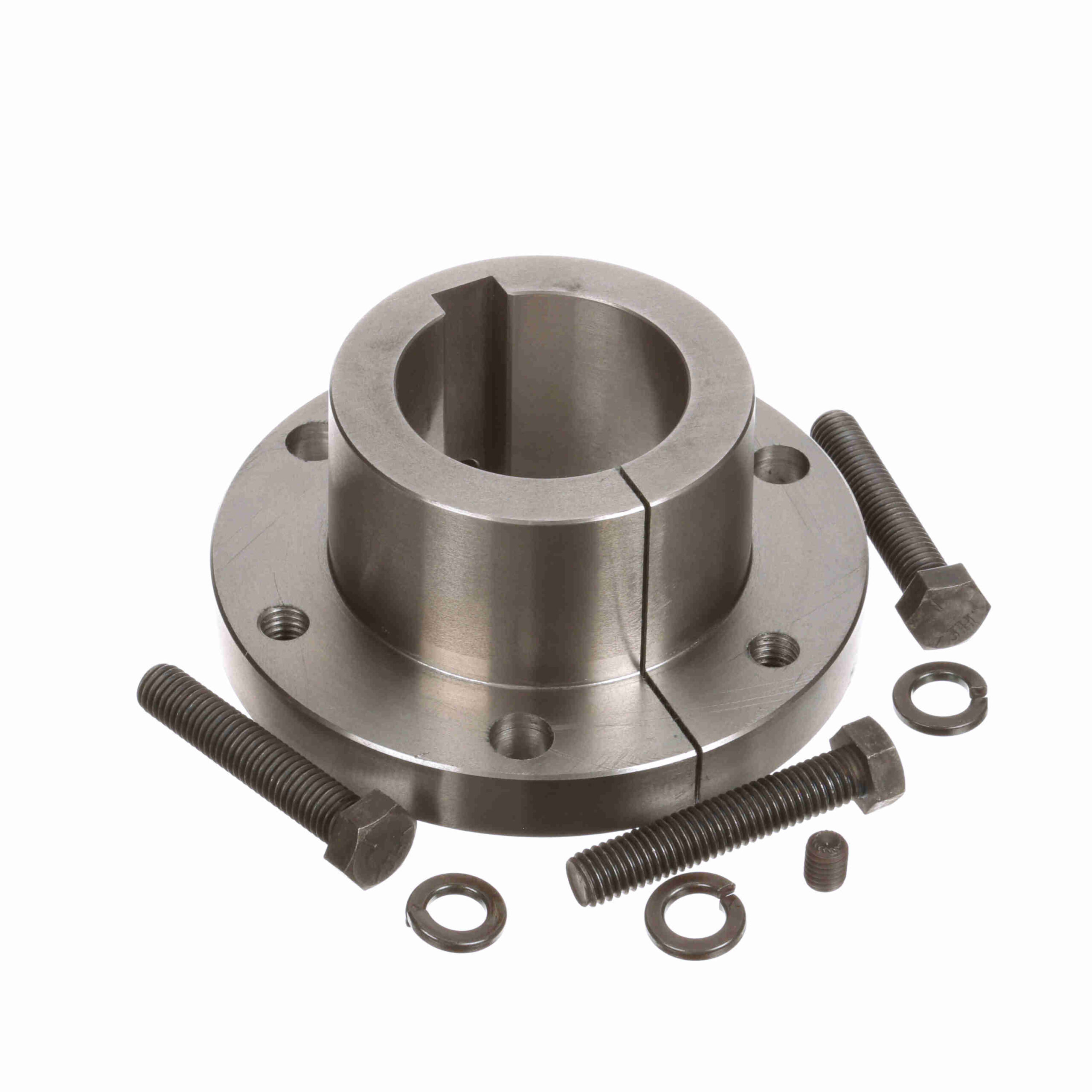

Browning Q-D Bushing – Inch Bore Type – E 2 9/16
Out of stock
| Length Through Bore (in): | 2.64 in | Cap Screws (No.): | 3 |
|---|---|---|---|
| Product Type: | Q-D Bushing | Bore Type: | Inch |
| Wrench Torque (ft.-lbs.): | 60 | Bushing Type: | E |
| Mounting Type: | Conventional | Keyway: | 5/8 x 5/16 |
| Total Length (in): | 2.64 in | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Outside Diameter (in): | 6 in | Model Name: | QD-E_Bushing_Master |
| Cap Screws (Bolt Circle): | 5 | Torque Capacity (in-lb): | 20, 000 |
| Compatible Bore Size [Max] (in): | 2.5625 in | Bore Size (in): | 2.5625 in |
| Barrel Length: | 1.89 in | Barrel Diameter: | 3.834 in |
| Flange Thickness: | 0.75 in | Material: | Ductile Iron-Grade 65-45-44 |
| UPC: | 662289374267 | Weight: | 7.70 LB |
| Packaged Length: | 6.3 Inches | Packaged Width: | 6.3 Inches |
| Packaged Height: | 3.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
