- Reverse mounting ability – This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face.
- 3/4″/ft. Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
E 1 5/8

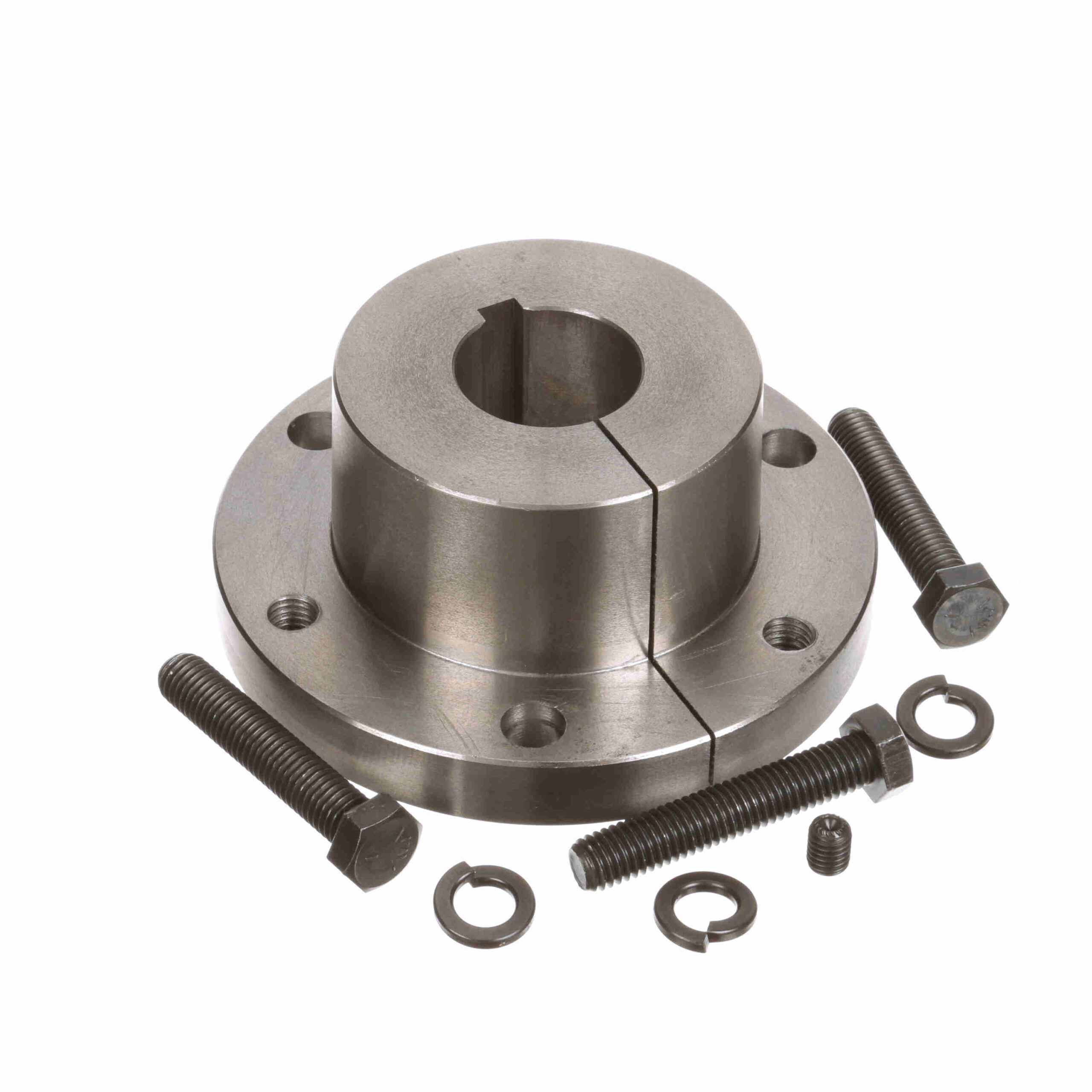

Browning Q-D Bushing – Inch Bore Type – E 1 5/8
$501.57
Out of stock
Out of stock
| Torque Capacity (in-lb): | 20, 000 | Bushing Type: | E |
|---|---|---|---|
| Total Length (in): | 2.64 in | Outside Diameter (in): | 6 in |
| Length Through Bore (in): | 2.64 in | Compatible Bore Size [Max] (in): | 1.625 in |
| Bore Type: | Inch | Cap Screws (Size): | 1/2-13 x 2 3/4 |
| Mounting Type: | Conventional | Keyway: | 3/8 x 3/16 |
| Wrench Torque (ft.-lbs.): | 60 | Model Name: | QD-E_Bushing_Master |
| Cap Screws (Bolt Circle): | 5 | Cap Screws (No.): | 3 |
| Product Type: | Q-D Bushing | Bore Size (in): | 1.625 in |
| Material: | Ductile Iron-Grade 65-45-24 | Barrel Length: | 1.89 in |
| Barrel Diameter: | 3.834 in | Flange Thickness: | 0.75 in |
| UPC: | 662289364152 | Weight: | 9.85 LB |
| Packaged Length: | 6.4 Inches | Packaged Width: | 6.6 Inches |
| Packaged Height: | 3.4 Inches | HTC: | 8483.90.8080 |
| Country of Origin: | Mexico |
