- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS80Q19

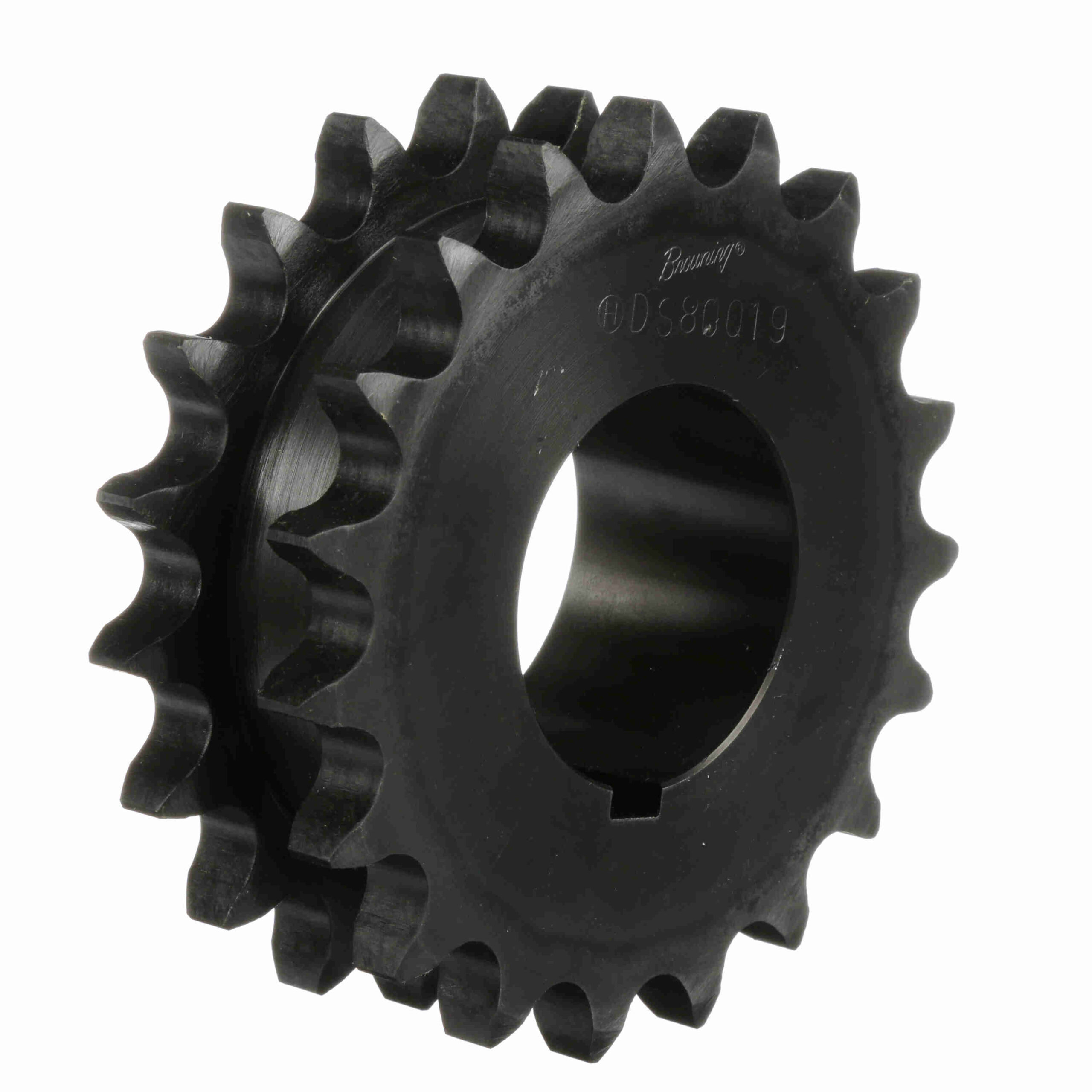

Browning Steel Bushed Bore Roller Chain Sprocket – DS80Q19
$755.89
Availability: 1 in stock
Availability: 1 in stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Bushing Used: | Split Taper |
|---|---|---|---|
| Material: | Steel | Number of teeth: | 19 |
| Bore (Max) (in): | 2.6875 in | Chain Pitch (in): | 1 in |
| Pitch Diameter (in): | 6.076 in | Product Type: | Bushed Roller Chain Sprocket |
| Bore (Min) (in): | 0.75 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 3.28125 in | Outside Diameter (in): | 6.593 in |
| Number of Strands/Width: | 2 | Length Through Bore (in): | 2.5 in |
| Tooth Width (in): | 0.575 in | Hub Diameter (in): | 4.125 in |
| Hub Projection (in): | 0.844 | Width Across Tooth Sets: | 2.203 |
| Hardened Teeth: | Yes | Pitch Type: | Single |
| Overall Width (in): | 3.281 in | UPC: | 662289228546 |
| Weight: | 10.66 LB | Packaged Length: | 7.00 Inches |
| Packaged Width: | 7.10 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
