- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS60P19

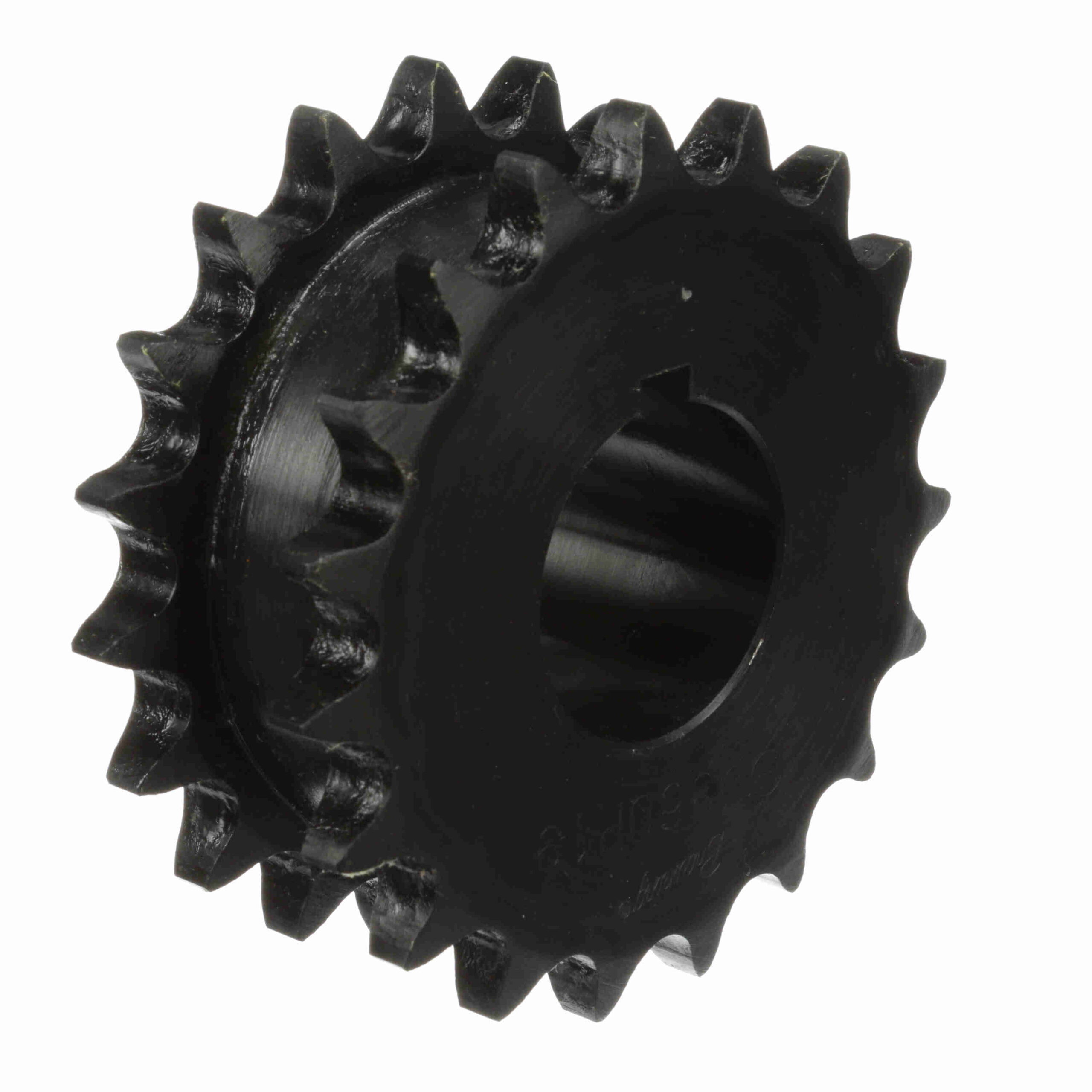

Browning Steel Bushed Bore Roller Chain Sprocket – DS60P19
$510.25
Availability: 3 in stock
Availability: 3 in stock
| Chain Pitch (in): | 0.75 in | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Product Type: | Bushed Roller Chain Sprocket | Number of teeth: | 19 |
| Bore (Max) (in): | 1.75 in | Material: | Steel |
| Pitch Diameter (in): | 4.557 in | Outside Diameter (in): | 4.945 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.765625 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Pitch Type: | Single | Hardened Teeth: | Yes |
| UPC: | 662289238453 | Weight: | 5.49 LB |
| Packaged Length: | 5.70 Inches | Packaged Width: | 5.70 Inches |
| Packaged Height: | 2.30 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
