- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D60Q24

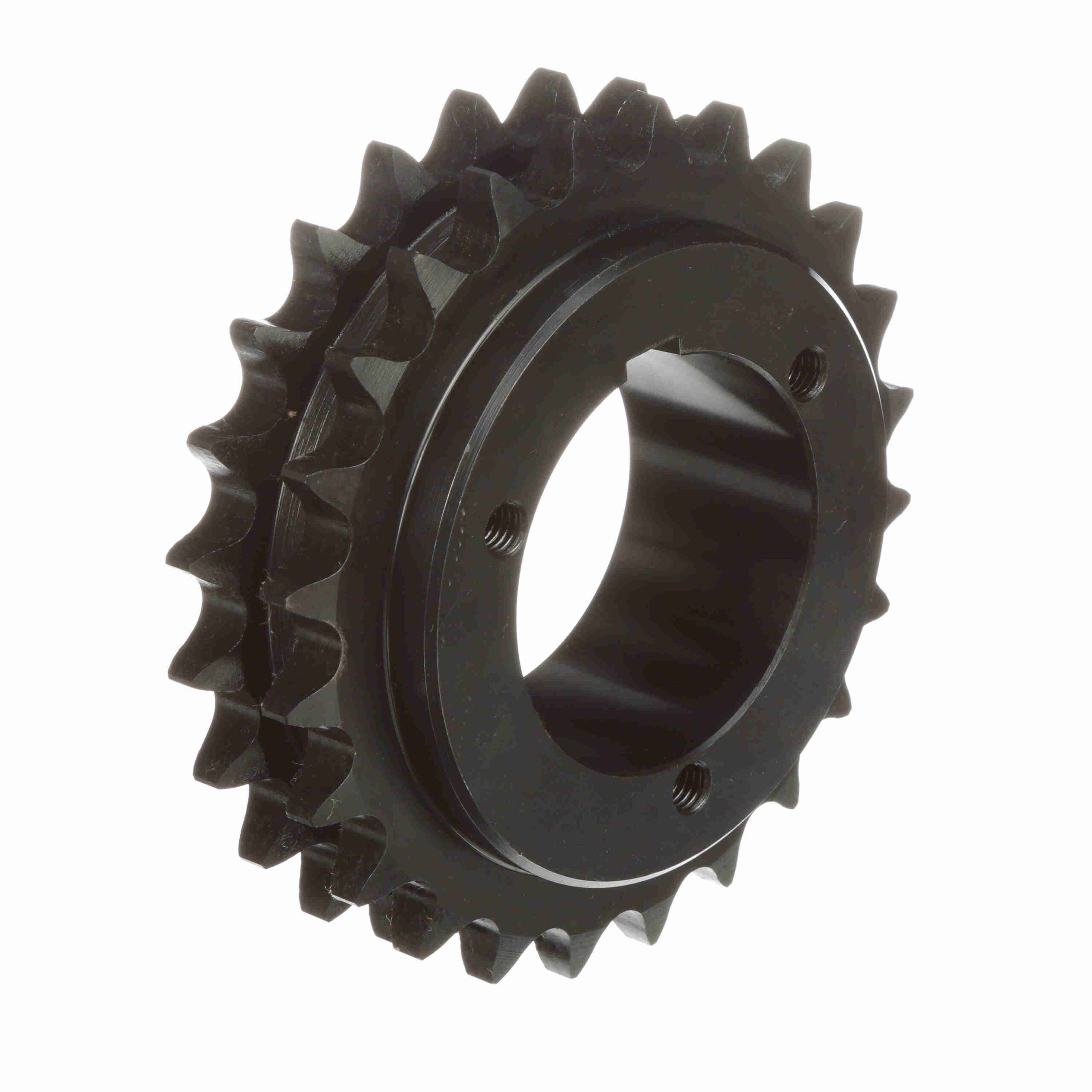

Browning Steel Bushed Bore Roller Chain Sprocket – D60Q24
$473.18
Availability: 2 in stock
Availability: 2 in stock
| Number of teeth: | 24 | Bore (Min) (in): | 0.75 in |
|---|---|---|---|
| Pitch Diameter (in): | 5.746 in | Bore (Max) (in): | 2.6875 in |
| Bushing Used: | Split Taper | Chain Pitch (in): | 0.75 in |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
| Material: | Steel, Hardened Teeth | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 6.147 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 1.341 |
| Number of Hubs: | 1 | UPC: | 662289309443 |
| Weight: | 7.21 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.30 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
