- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D50P19

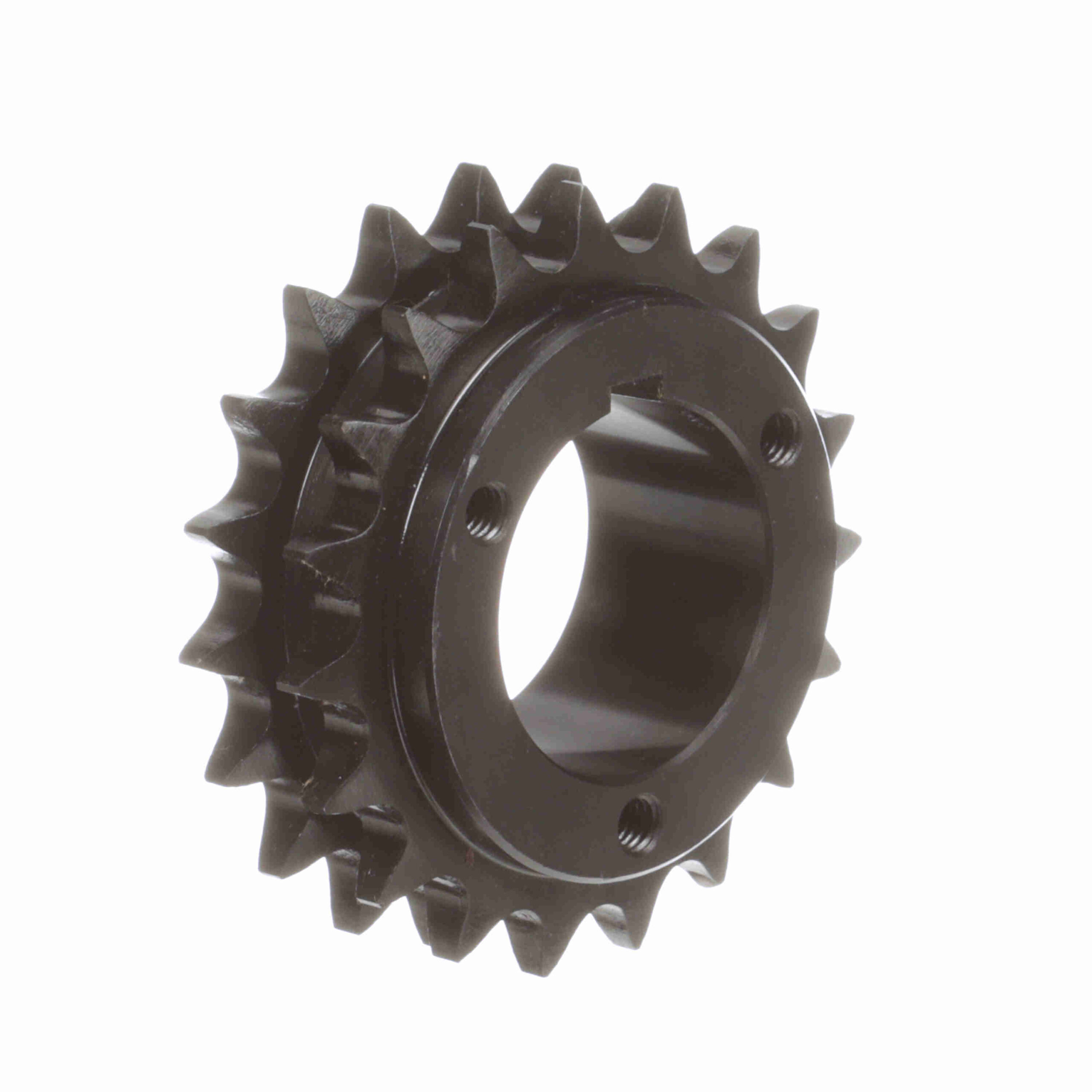

Browning Steel Bushed Bore Roller Chain Sprocket – D50P19
$360.63
Out of stock
Out of stock
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore (Max) (in): | 1.75 in |
|---|---|---|---|
| Chain Pitch (in): | 0.625 in | Pitch Diameter (in): | 3.797 in |
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 0.5 in |
| Number of teeth: | 19 | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.142725 in | Hub Diameter (in): | 3 in |
| Hub Type: | Bushed | Tooth Width (in): | 0.332 in |
| Sprocket Material: | Steel, Hardened Teeth | Length Through Bore (in): | 1.9375 in |
| Outside Diameter (in): | 4.12 in | Number of Strands/Width: | 2 |
| Bushing Bore (Min) (in): | 0.5 in | Bushing Bore (Max) (in): | 1.75 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Number of Hubs: | 1 | Width Across Tooth Sets: | 1.045 |
| Pitch Type: | Single | UPC: | 662289239061 |
| Weight: | 2.26 LB | Packaged Length: | 5.56 Inches |
| Packaged Width: | 5.56 Inches | Packaged Height: | 1.31 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
