- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D40P21

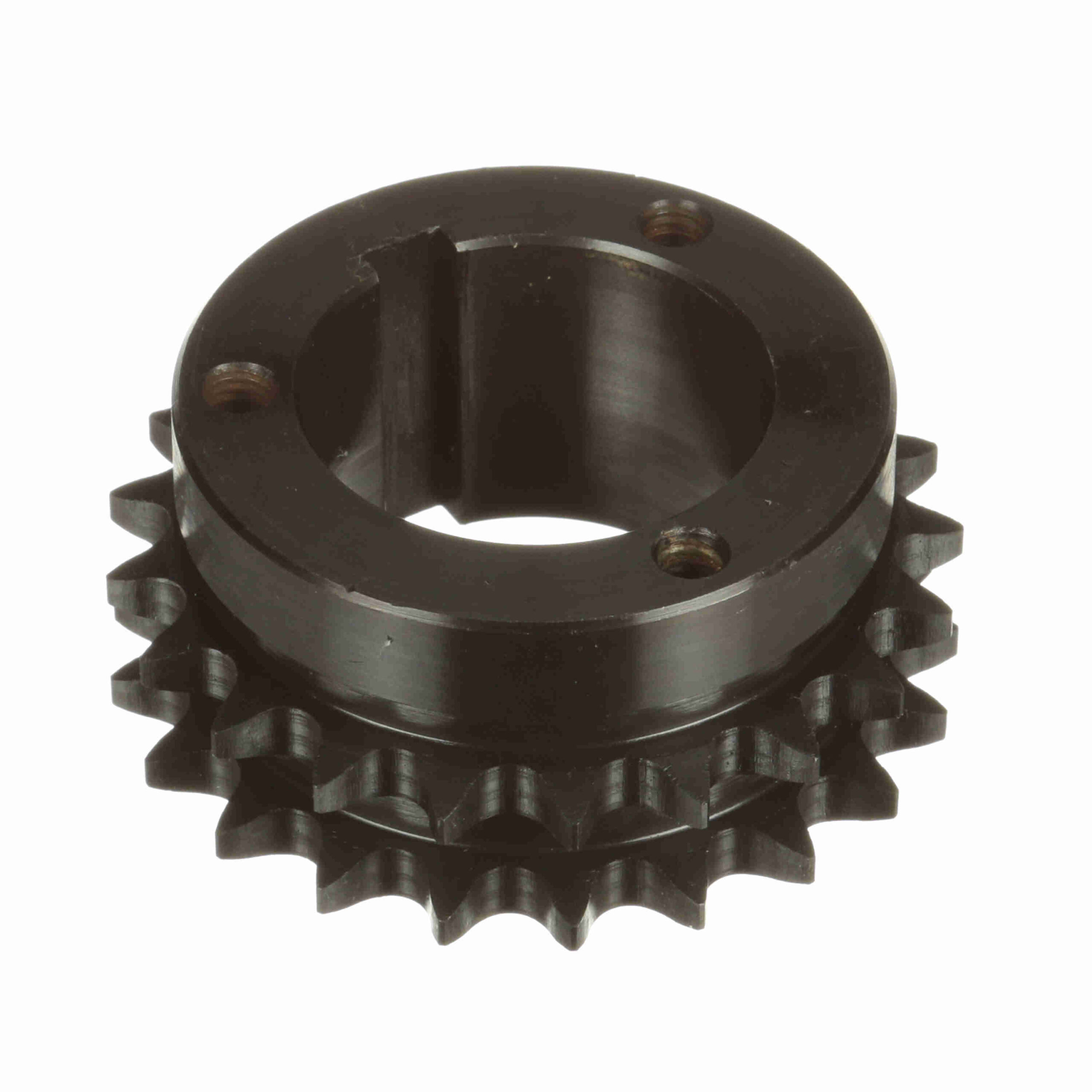

Browning Steel Bushed Bore Roller Chain Sprocket – D40P21
$318.34
Availability: 9 in stock
Availability: 9 in stock
| Pitch Diameter (in): | 3.355 in | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Bore (Max) (in): | 1.75 in |
| Chain Pitch (in): | 0.5 in | Number of teeth: | 21 |
| Product Type: | Bushed Roller Chain Sprocket | Material: | Steel, Hardened Teeth |
| Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain | Overall Length (in): | 2.143225 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 3.617 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Width Across Tooth Sets: | 0.841 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289510603 |
| Weight: | 1.92 LB | Packaged Length: | 4.56 Inches |
| Packaged Width: | 4.56 Inches | Packaged Height: | 1.56 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
