- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- Fluoropolymer coated cast iron housing for corrosion resistance.
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRSTF-PN16

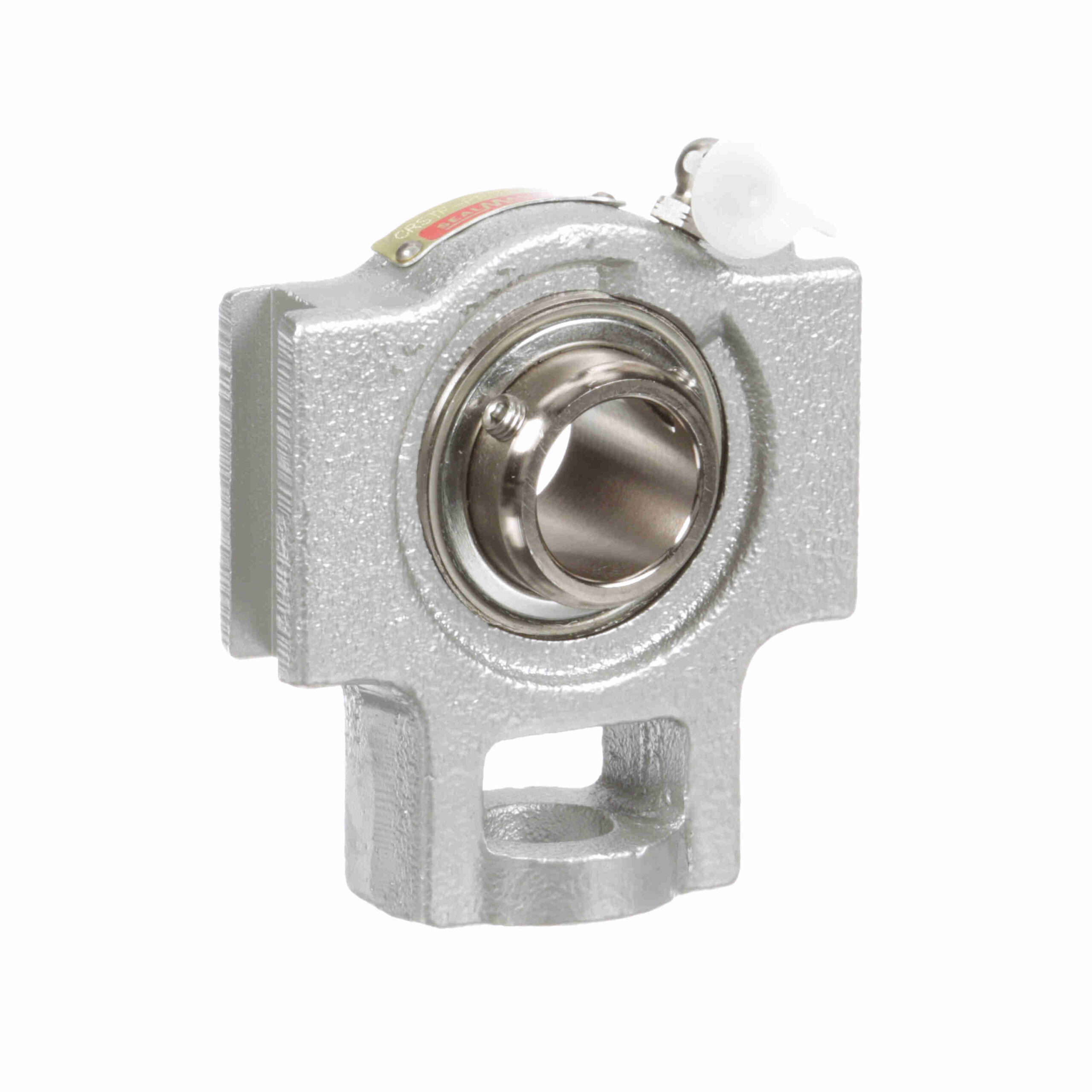

Sealmaster Mounted Flouropolymer Coated Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRSTF-PN16
$532.68
Out of stock
Out of stock
| Expansion: | No | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Insert No.: | PN-16 | Speed (Max): | 2700 |
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Measure Units: | Inch |
| Duty Series: | Standard Duty | Housing Type: | Take-Up Block, Wide Slot |
| Seal Type: | Multi-Lip Contact Seal | Retainer Type: | Land Riding Retainer |
| Rolling Element: | Ball Bearing | Housing Material: | Flouropolymer Coated Cast Iron |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Bore Shape: | Straight |
| Frame Type: | Center Pull Wide Slot | Misalignment: | ±2.0° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 2, 801 | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Options: | Corrosion Resistant |
| Platform: | PN Gold | Housing Color: | Silver/Gray |
| Replaceable Insert: | Yes | End Cap: | Yes |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Misalignment Type: | Static Only |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 1, 651 |
| Series: | CRSTF | Cage Material: | PPS |
| Unit Type: | Side Mount | Component Description: | Take Up Bearing Only |
| UPC: | 662461337745 | Weight: | 1.97 LB |
| Packaged Length: | 4.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 4.56 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
